YOKOGAWA DL7440 User Manual

10-69
IM 701450-01E
10
Analyzing and Searching Waveforms

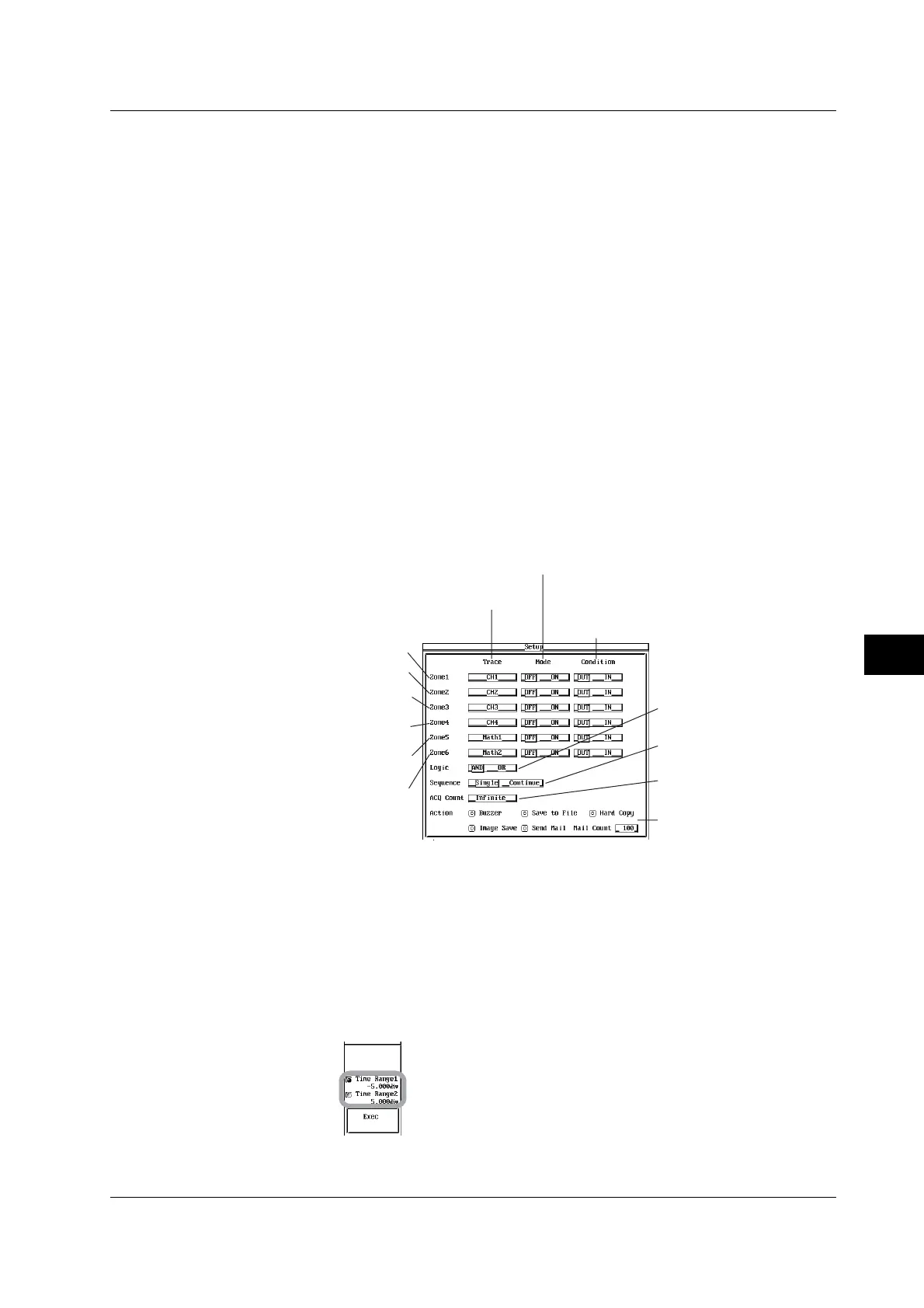

22. Use jog shuttle & SELECT to set the following items of determination zone
Zone1.
• Select a determination target waveform of CH1 to CH8/4*, Math1, or Math2
(Trace box).
• Select whether to perform determination at the corresponding determination
zone (ON/OFF) (Mode box).
• Select whether the waveform exiting the determination zone (OUT) or entering
the determination zone (IN) (Condition box) makes the condition true.
* On the DL7440, you can select from CH1 to CH4, Math1, and Math2. On the DL7480,
you can select from CH1 to CH8, Math1, and Math2.
23. Repeat step 22 to set determination zones Zone2 to Zone6.
24. Use jog shuttle & SELECT to set the determination logic to AND or OR (Logic
box).
25. Use jog shuttle & SELECT to set the determination operation to Single or
Continue (Sequence box).
26. Use jog shuttle & SELECT to set the waveform acquisition count (ACQ Count
box).
27. Use jog shuttle & SELECT to set the DL7400 action when the condition is met
(Action box).
28. Press ESC. The Setup dialog box closes.
Select the determination target
waveform from CH1 to CH8 (4),
Math1, or Math2.
Select whether to perform determination at the
corresponding determination zone (ON/OFF).
Select which condition when the waveform
exits the determination zone (OUT) or when
the waveform enters the determination zone
(IN) is considered true.
Set the determination logic to
AND or OR.
Set the determination operation
to Single or Continue.
Set the number of waveform
acquisitions.
Set the action taken by the
DL7400 when the condition
is met.
Determination
zone Zone6
Determination
zone Zone5
Determination
zone Zone4
Determination
zone Zone3
Determination
zone Zone2
Determination
zone Zone1
Setting the Determination Range
29. Press the Time Range1/Time Range2 soft key to set the jog shuttle control to
Time Range1, Time Range2, or both Time Range1 and Time Range 2.
• If you select Time Range1, you can move Time Range1.
• If you select Time Range2, you can move Time Range2.
• If you select both Time Range1 and Time Range2, you can move Time Range1 and
Time Range2 horizontally without changing the spacing between the two. The value of
the digit being specified by Time Range1 changes.
10.9 Performing GO/NO-GO Determination Using Zones
