YOKOGAWA DL7440 User Manual

12-22 IM 701450-01E
Selecting the Save Destination Medium/Directory

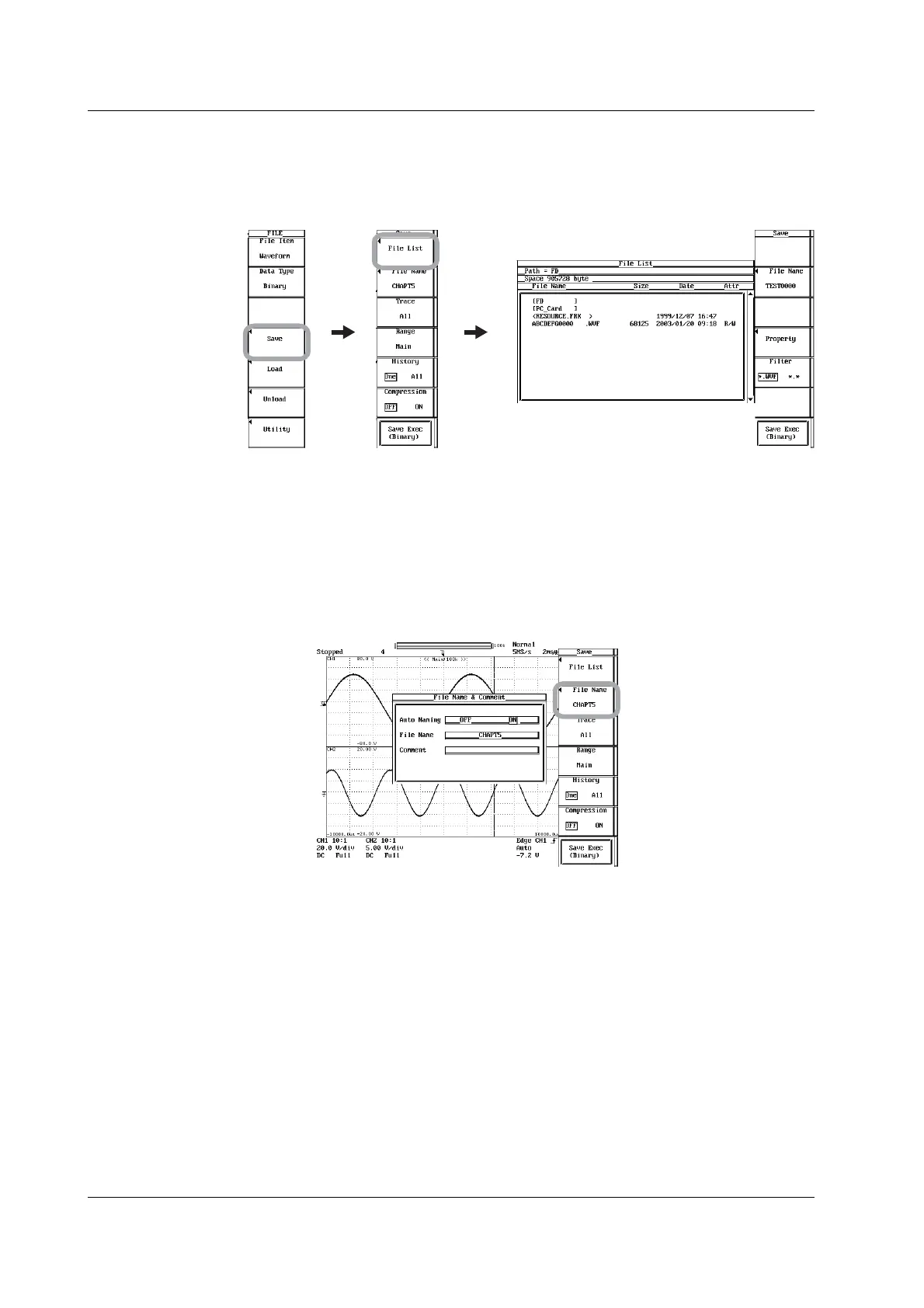

13. Press the File List soft key. The File List window appears.
14. Use jog shuttle & SELECT to select the save destination medium (indicated by
brackets).
Selecting the Save Destination Directory
(Perform this operation when directories are present on the medium.)
15. Use jog shuttle & SELECT to select the save destination directory (indicated by
< >). The selected medium/directory is displayed in “Path=......” located in the
upper-left of the File List window. Select <..> to move to the parent directory.
Setting the File Name and Comment
16. Press the File Name soft key. The File Name & Comment dialog box opens.
17. Use jog shuttle & SELECT to set the auto naming function.
• If you select ON, the auto naming function is enabled.
• If you select OFF, the auto naming function is disabled.
18. Use jog shuttle & SELECT to call up the keyboard and set the file name or
comment.
• Enter the file name using up to 14 characters.
• Enter comment using up to 25 characters.
19. Press ESC. The File Name & Comment dialog box closes.
12.8 Saving/Loading the Waveform Data
