13-28 IM 701450-01E

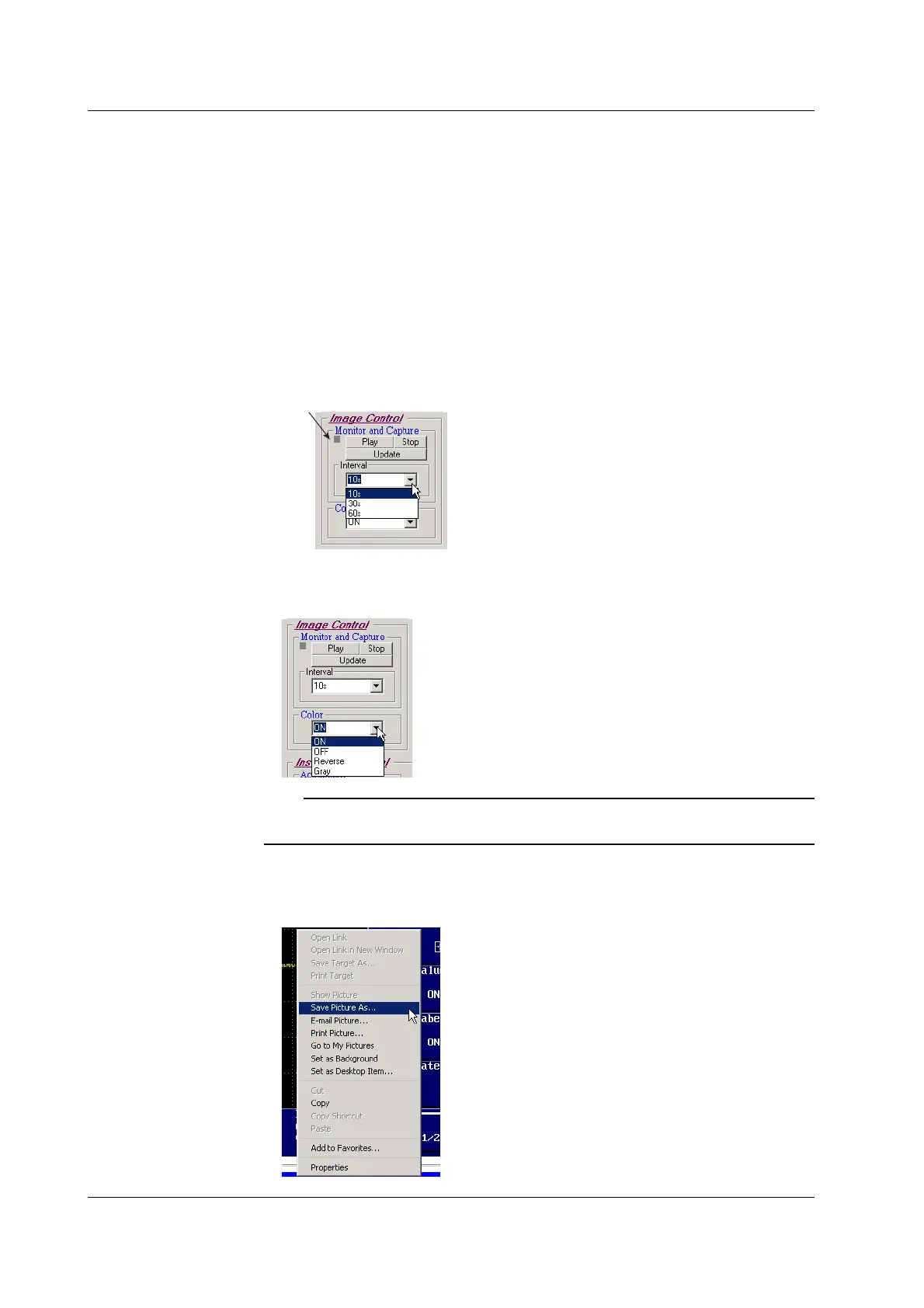

Displaying and Saving the Screen Image (Image Control)
The screen image of the DL7400 can be displayed on the PC screen and saved.
• Updating the Screen Image (Monitor & Capture)
Play
Click Play. The update indicator illuminates in green, and the updating of the
screen image at the specified display update interval starts (see below).
Stop
Click Stop. The update indicator turns off, and the updating of the screen image
stops.
Update
Click Update. The screen image is updated.
Interval
Set the display update interval to 10 s, 30 s, or 60 s.
Update indicator
• Selecting the Display Color of the Screen Image (Color)
Select the display color from ON, OFF, Reverse, and Gray. For a description of the
displayed information for each setting, see the explanation in section 12.12.
Note
The time it takes to display the screen image on the PC varies depending on the color setting. In
decreasing order, the color settings are ON, Reverse, Gray, and OFF.
• Saving the Screen Image in the PC
Right-click on the displayed screen image. The following shortcut menu appears.
Choose Save Picture As to save the current screen image.
13.7 Using the Web Server Function
