8.2.5 Calibrating Operation
8-21

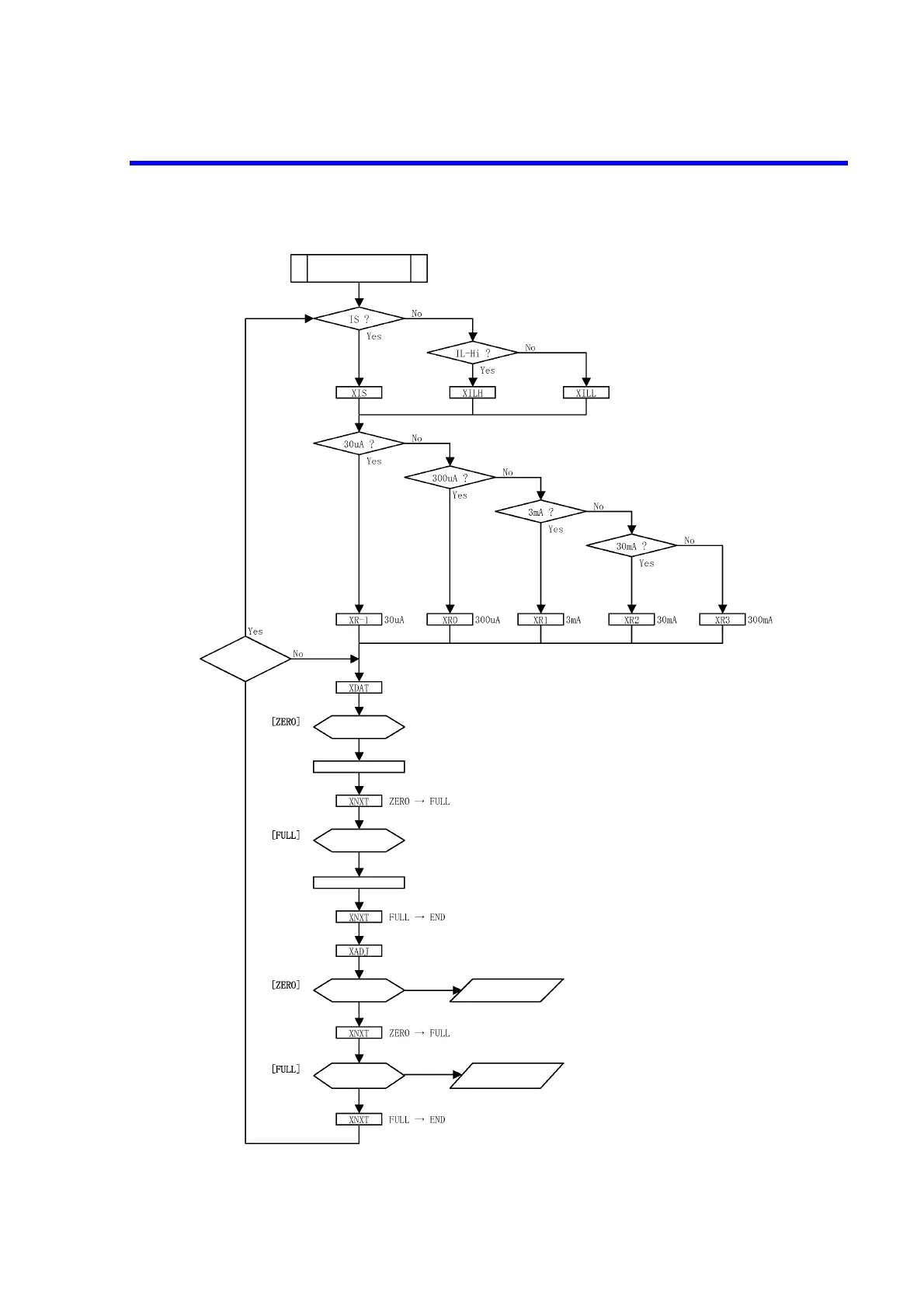

Figure 8-11 6242 Calibration Procedure (4)
Current-source and
Limiter calibration
(30 µA to 300 mA range)
[Setting calibration mode]
IL-Hi mode IL-Lo modeIS mode
[Setting range]
Execute the DMM data input.
XD DMM data
Execute the calibration result check.
Acquire
DMM data.
Input DMM data.
ex. “XD-2.0e-6”
*Input data outside the set range results in a parameter error.
XD DMM data
Acquire
DMM data.
Input DMM data.
ex. “XD3003.0e-3”
*Input data outside the set range results in a parameter error.
Acquire
DMM data.
Acquire
DMM data.
Store and display
calibration result data.
Store and display
calibration result data.
Within
tolerance?
