8.2.5 Calibrating Operation
8-22

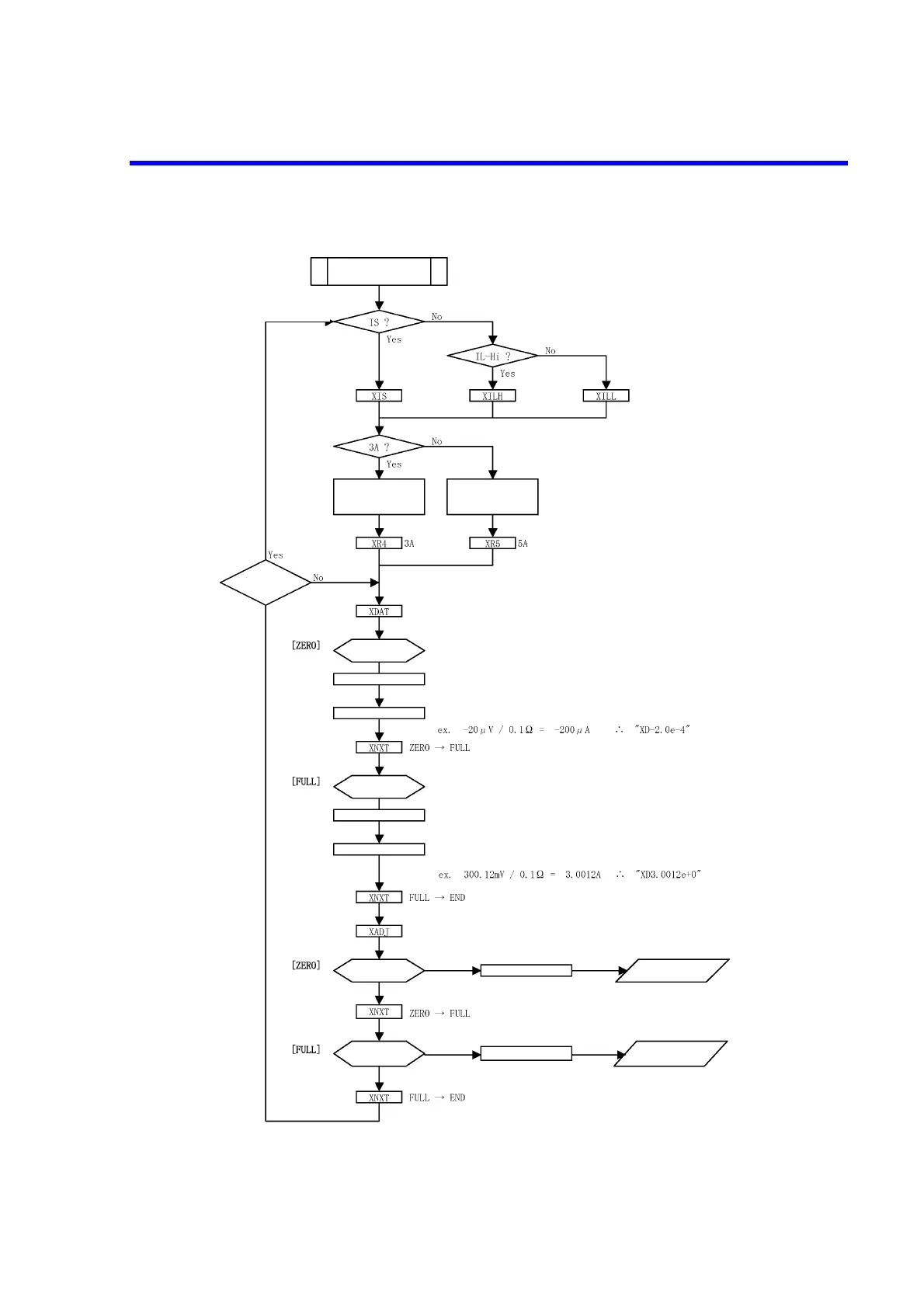

Figure 8-12 6242 Calibration Procedure (5)
Current-source and
Limiter calibration
(3 A, 5 A range)
[Set calibration mode]
[Setting range]
VL-Hi mode
Execute the DMM data input.
Acquire
DMM data.
XD conversion data Current conversion data input.
VL-Lo modeVS mode
Acquire
DMM data.
Execute the calibration result check.
Acquire
DMM data.
Store and display
calibration result data.
Acquire
DMM data.
Store and display
calibration result data.
*Input data outside the set range results in a parameter error.
Within
tolerance?
Standard resistor
connection for 3 A
calibration
Standard resistor
connection for 5 A
calibration
Current conversion Converted current value (A) = DMM measured voltage (V) /
Standard resistance for calibration (Ω)
Current conversion Converted current value (A) = DMM measured voltage (V) /
Standard resistance for calibration (Ω)
XD conversion data Input DMM data. *Input data outside the set range results in a parameter error.
Current conversion
Current conversion
