6241A/6242 DC Voltage Current Source/Monitor Operation Manual
8.2.5 Calibrating Operation
8-24

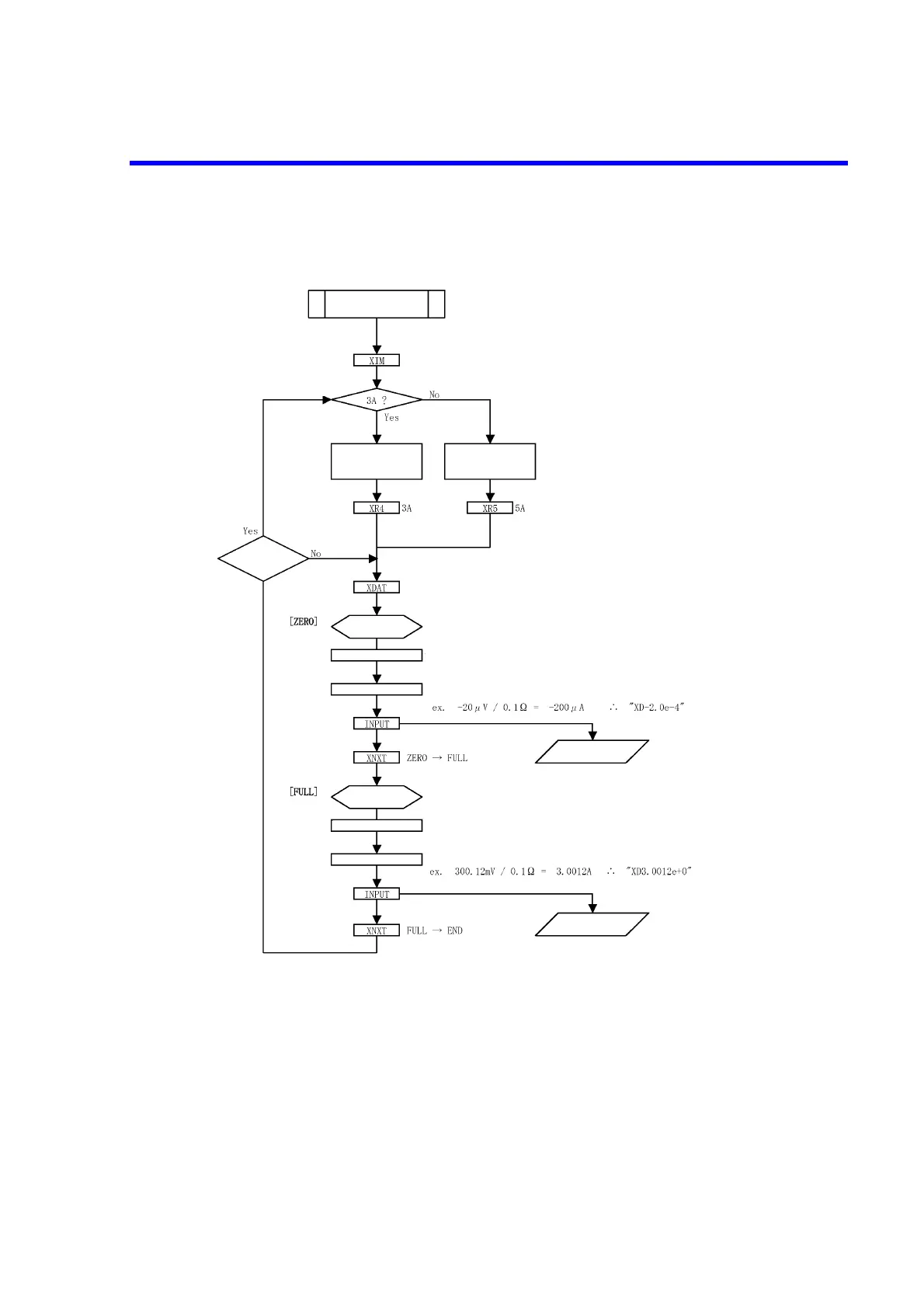

Figure 8-14 6242 Calibration Procedure (7)
IM mode
[Setting range]
Within
tolerance?
Current-measurement
calibration
(3 A, 5 A range)
Execute the DMM data input.
Acquire
DMM data.
XD conversion data Current conversion data input
Acquire
DMM data.
*Input data outside the set range results in a parameter error.
Standard resistor
connection for 3 A
calibration
Standard resistor
connection for 5 A
calibration
Current conversion Converted current value (A) = DMM measured voltage (V) /
Standard resistance for calibration (Ω)
Current conversion Converted current value (A) = DMM measured voltage (V) /
Standard resistance for calibration (Ω)
XD DMM data
Input DMM data *Input data outside the set range results in a parameter error.
Store and display
calibration result data.
Store and display
calibration result data.
Readout the
measurement
data.
Readout the
measurement
data.
