590 Appendix A
Manual Changes
Manual Changes

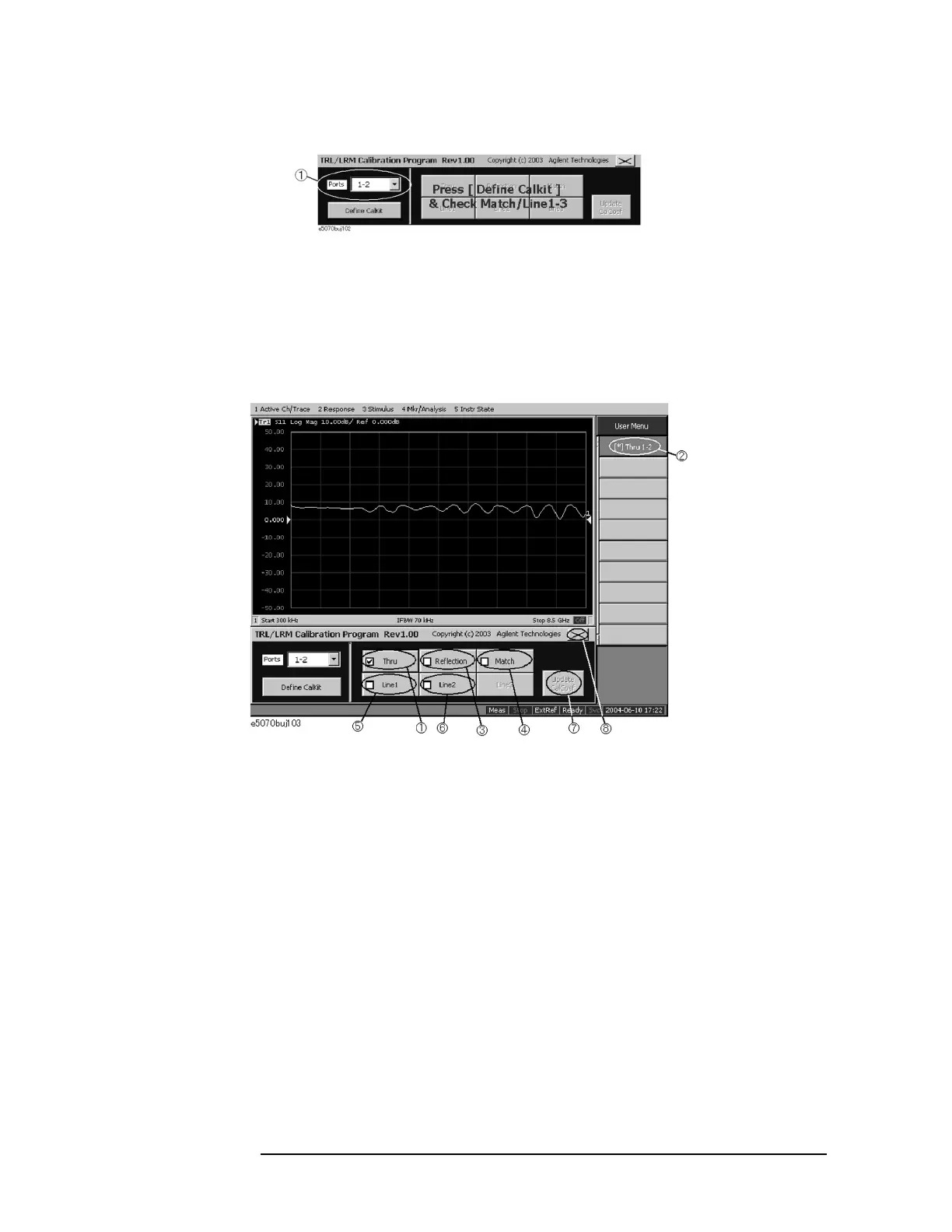

Figure A-5 Performing 2-port TRL/LRM calibration
Step 2. Press the Thru button (1 in Figure A-6).
Step 3. Make the through condition for test ports 1 and 2 and press the [ ]Thru 1-2 button (2 in
Figure A-6). The through measurement is performed, and an asterisk appears at the [ ]Thru
1-2 button and then a check mark [v] also appears on the Thru button.
Figure A-6 Example of performing 2-port TRL/LRM calibration
Step 4. Press the Reflection button (3 in Figure A-6).
Step 5. Connect the Reflection standard to test port 1 and press the [ ]Reflection1 button. The
reflection measurement is performed, and an asterisk appears at the
[ ]Reflection1 button.
Step 6. Connect the Reflection standard to test port 2 and press the [ ]Reflection2 button. The
reflection measurement is performed, and an asterisk appears at the
[ ]Reflection2 button
and then a check mark [v] also appears on the
Reflection button.
Step 7. Press the Match button (4 in Figure A-6).
Step 8. Connect the Match standard to test port 1 and press the [ ]Match1 button. The match
measurement is performed, and an asterisk appears at the
[ ]Match1 button.
Step 9. Connect the Match standard to test port 2 and press the [ ]Match2 button. The reflection
measurement is performed, and an asterisk appears at the
[ ]Match2 button and then a
check mark [v] also appears on the
Match button.
Step 10. Press the Line1 button (5 in Figure A-6).
Step 11. Connect the Line 1 standard between test ports 1 and 2 and press the [ ]Line1 1-2 button.
