BONFIGLIOLI Agile

Commissioning

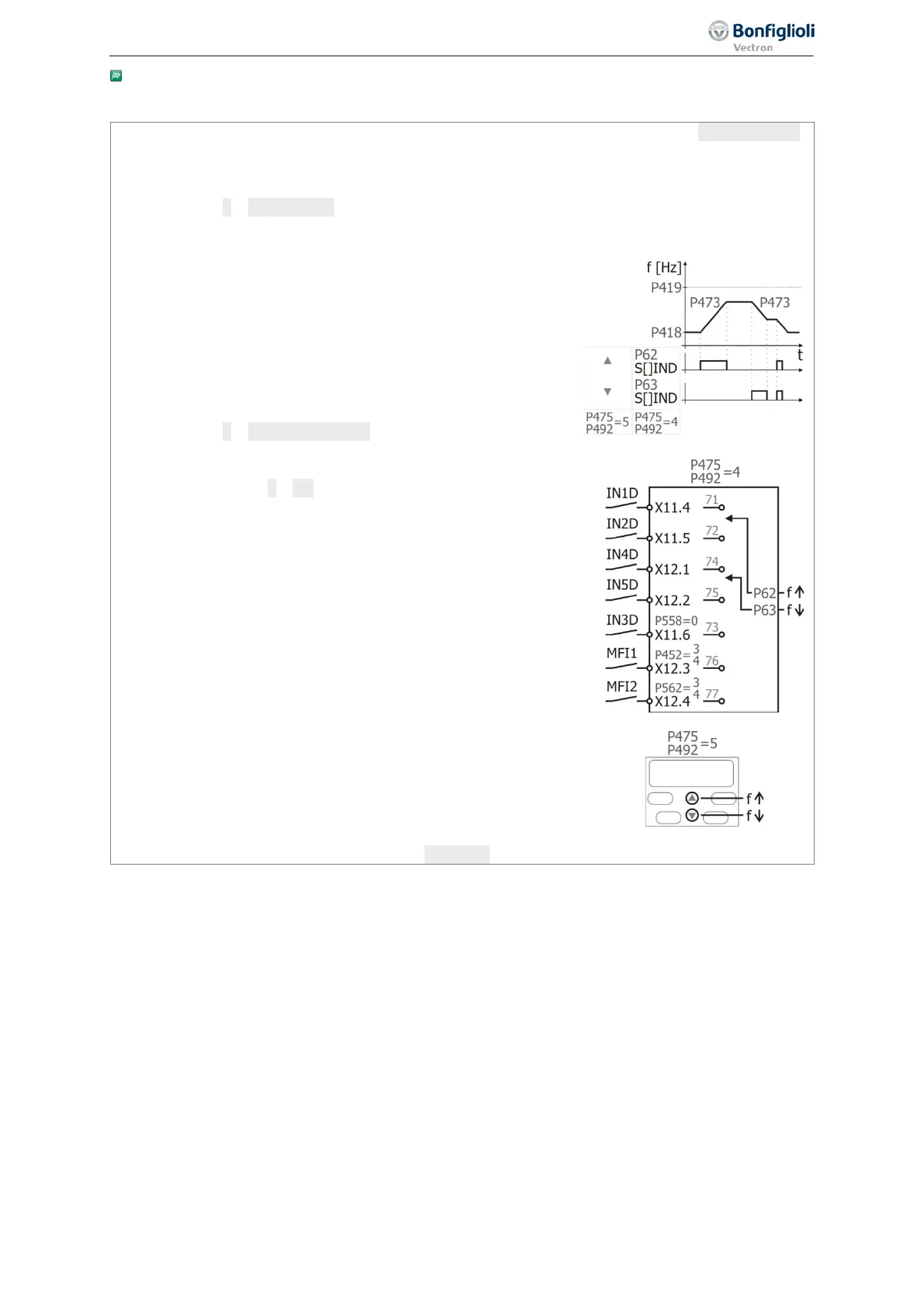

Motor potentiometer
Control via digital inputs or operator panel.
(Factory setting)
Save the reference value.
The last reference value set via the motor potentiometer is saved. After shut-down and
restart, the drive will be accelerated to this value.
P474
0
Not Latching
1
Latching
Define reference value via motor potentiometer:
P475
Reference frequency source 1
0
Zero
4
Motorpot. via Digital Inputs
5
Keypad-Motorpot.
or
P492
Reference frequency source 2
0
Zero
4
Motorpot. via Digital Inputs
5
Keypad-Motorpot.
Motor potentiometer via digital inputs:
P62
7
Off
P63
71
IN1D
72
IN2D
73
IN3D
74
IN4D
75
IN5D
76
MFI1D
77
MFI2D
…
other signal sources
Select digital inputs for P62 and P63.
P62 IN[]D: Increase reference value.
P63 IN[]D: Reduce reference value.
Keypad motor potentiometer:
▲: Increase reference value.
▼: Reduce reference value.
P473
Ramp for Motor potentiometer (2.00 Hz/s); limited to values from P420 to P423.
85
After first commissioning 06/2013 Operating Instructions
Agile
