BONFIGLIOLI Agile User Manual

Commissioning
Repetition frequency input
A frequency signal at input IN2D (X11.5) can be used as reference value.
Evaluation
P496
20
RF (Repetition frequency) single evaluation:
One signal edge
21
RF (Repetition frequency) double evaluation:
Both signal edges
P497 (Divider); for scaling
P475 or P492:
10
Repetition Frequency Input
The Speed Control is always limited by the Minimum Frequency (P418) and Maximum
Frequency (P419).

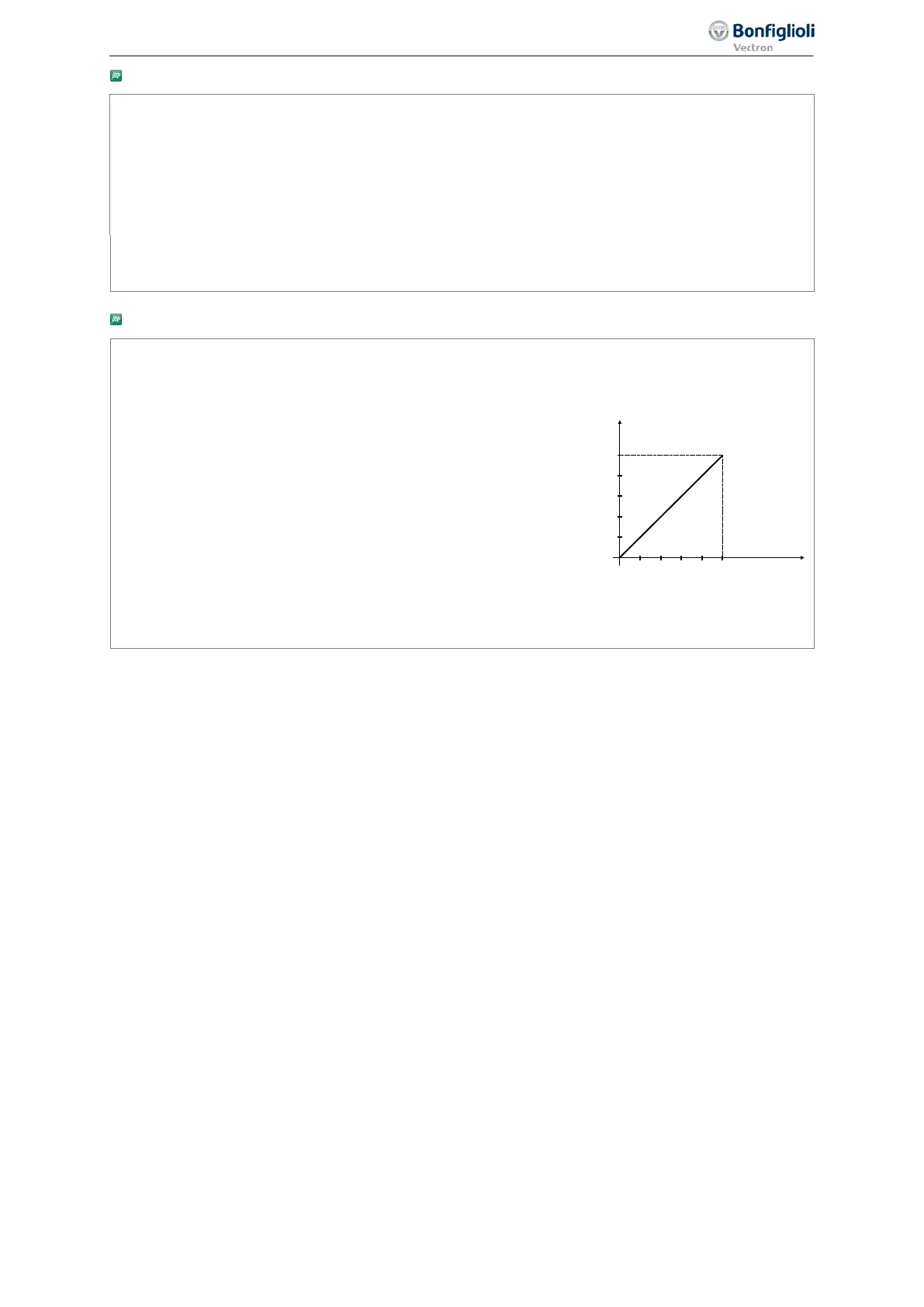

Pulse train input
A pulse train signal at input IN2D (X11.5) can be used for specification of the reference
value. The frequency of the pulse train signal on the input can be modified via a scal-
ing factor.
P496
30
Pulse train
P654 (scaling frequency)
P475 or P492:
10
Repetition
frequency
P476 or P494:
10
Repetition
percentage
The Speed Control is always limited by the Minimum Frequency (P418) and Maximum
Frequency (P419).
25000
(P419)
(P654)
f [Hz]
IN2D
f [Hz]
Reference
P654=25000
Factory setting
50
87
After first commissioning 06/2013 Operating Instructions
