Symmetry Based Recoupling

User Manual Version 002 BRUKER BIOSPIN 181 (327)

Pulse Sequence Diagram, Example C7 14.1

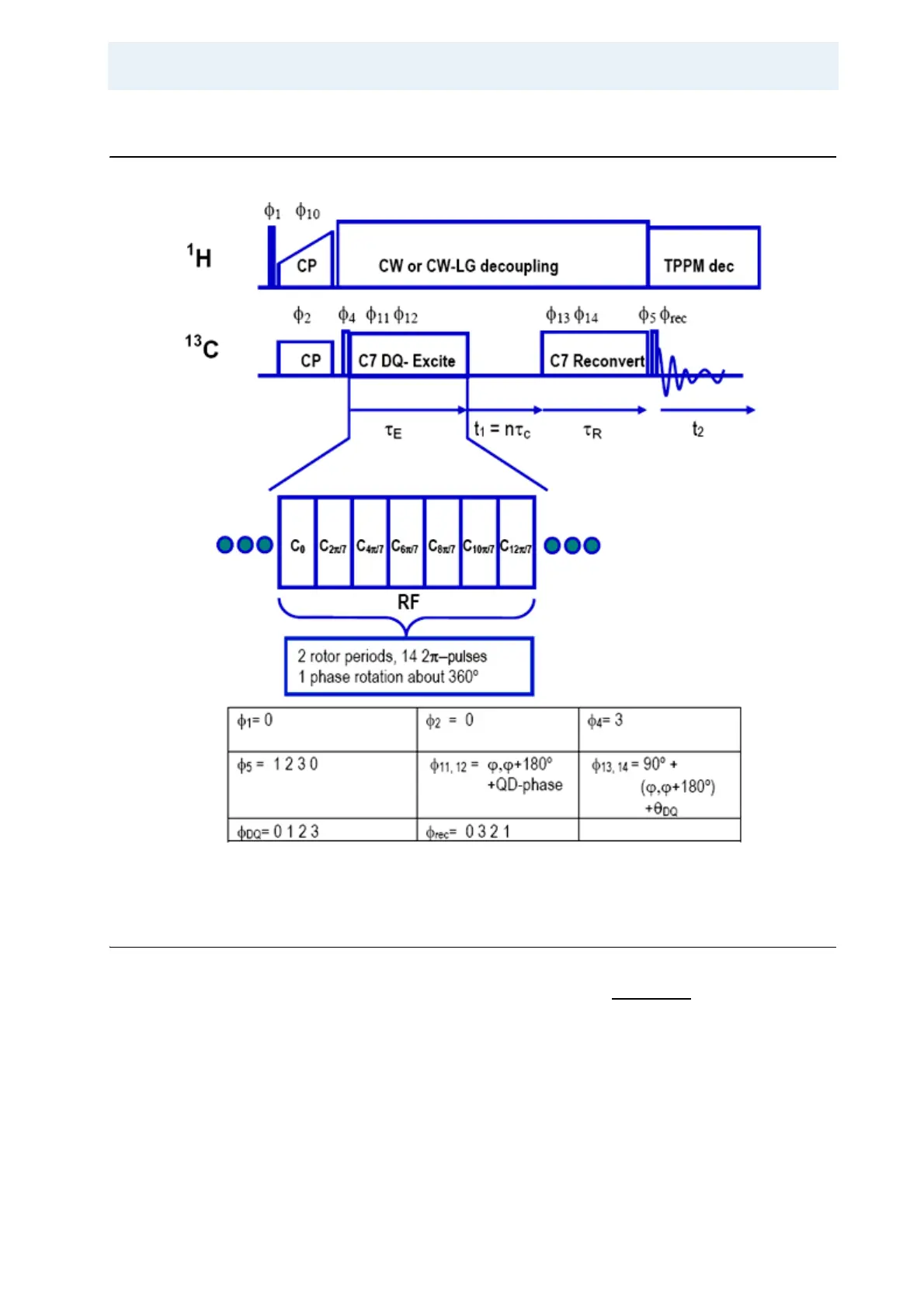

Figure 14.1. C7 SQ-DQ Correlation Experiment

Setup 14.2

As mentioned before, it is essential that the parameters of your sample of interest

are considered before the experiment is started.

Table 14.1. illustrates the proper

choice of hardware for the observe nucleus

C. Obviously, observation of DQ co-

herence requires samples with reasonable dipolar couplings and reasonable

probability of coupled species. So, running this experiment on

C samples re-

quires reasonable enrichment. Usually, fully enriched samples are used, some-

times diluted in natural abundance samples to reduce nonspecific long range

interactions. As always, rotary resonance conditions (overlap of side- and center

bands) should be avoided unless specifically desired.
