FSLG-HETCOR

Pulse Sequence Diagram for FSLG HETCOR 8.1

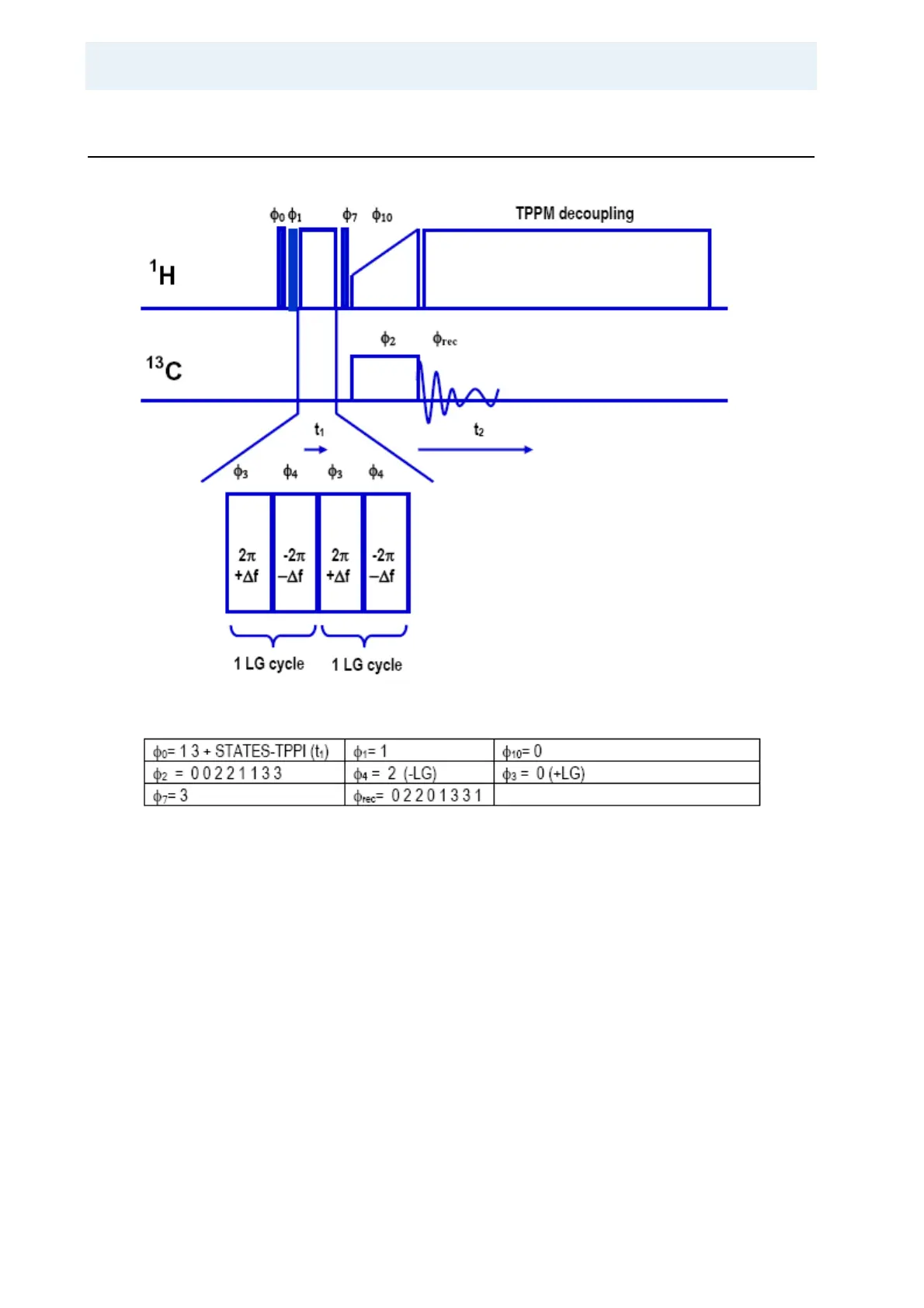

Figure 8.1. The FSLG Hetcor Experiment

The FSLG Hetcor experiment consists of 3 basic elements, the homonuclear de-

coupling sequence during which the

H chemical shifts evolve, the cross polariza-

tion sequence, during which the information of the

H spin magnetization is

transferred to the X-spins, followed by observation of the X-spins under proton de

coupling.
