RFDR

User Manual Version 002 BRUKER BIOSPIN 141 (327)

Spectral Processing 10.4

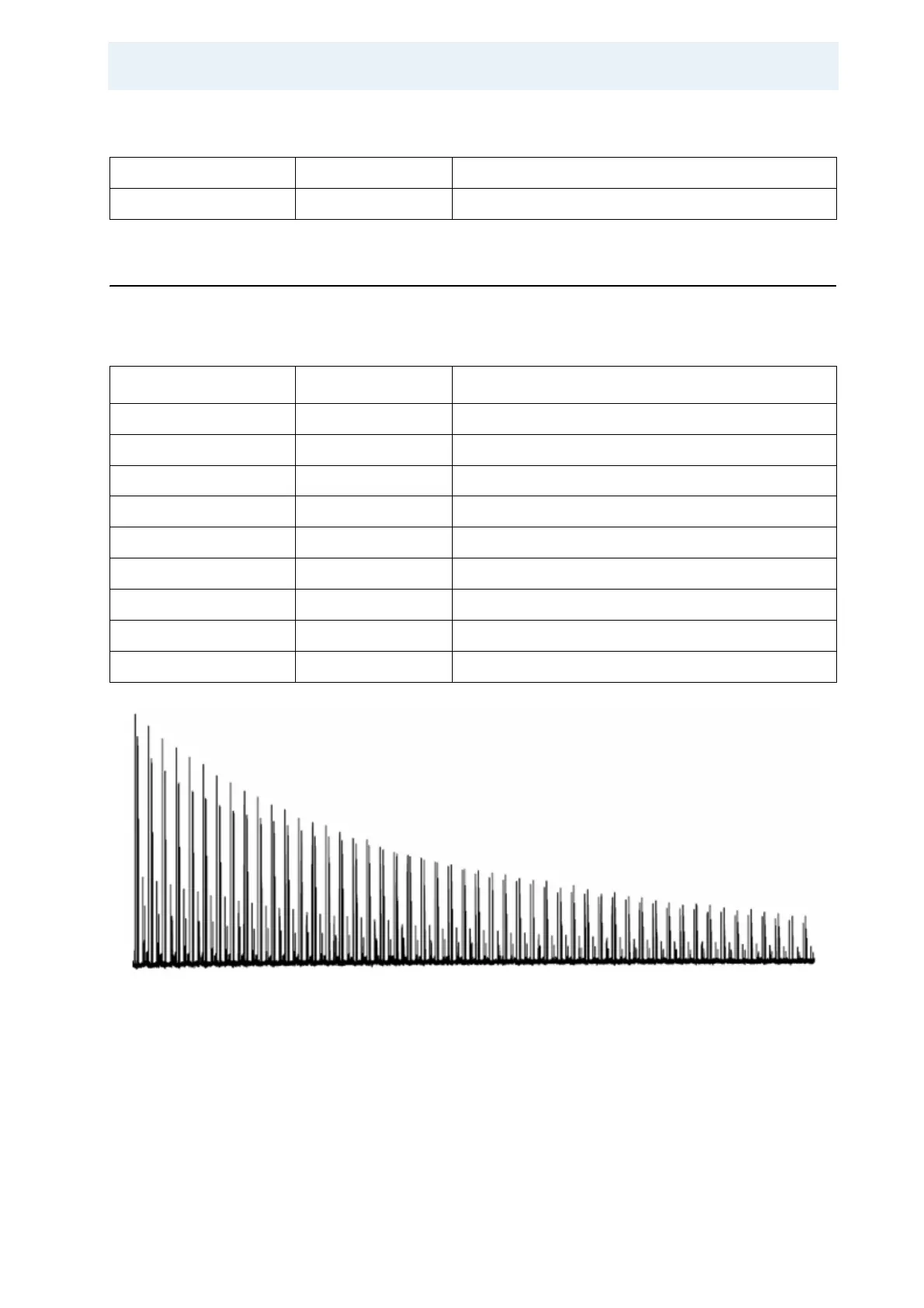

Figure 10.3.

C Histidine Signal Decay as a Function of the RFDR Mixing Time

in_f1 = dw or rotor period Synchronised sampling avoids sidebands.

FnMode STATES or STATES TPPI.

Table 10.2. Processing Parameters

Parameter Value Comment

F1 acquisition

C Left column.

si 4k Number of points and zero fill.

ph_mod pk Phase correction if needed.

bc_mod quad DC offset correction.

F2 indirect

C Right column.

si 256 Zero fill.

mc2 STATES or STATES TPPI.

ph_mod pk Phase correction if needed.

bc_mod no Automatic baseline correction.

Table 10.1. Acquisition Parameters
