User Manual Version 002 BRUKER BIOSPIN 275 (327)

CRAMPS 1D 22

As outlined above, many sequences are available to achieve homonuclear dipolar

decoupling. We want to concentrate on those that allow fast spin rates and are

easy to set up. The performance of DUMBO and W-PMLG is very similar. The

pulse sequence is also very similar on AV3 instruments, just different shapes and

different timings are loaded.

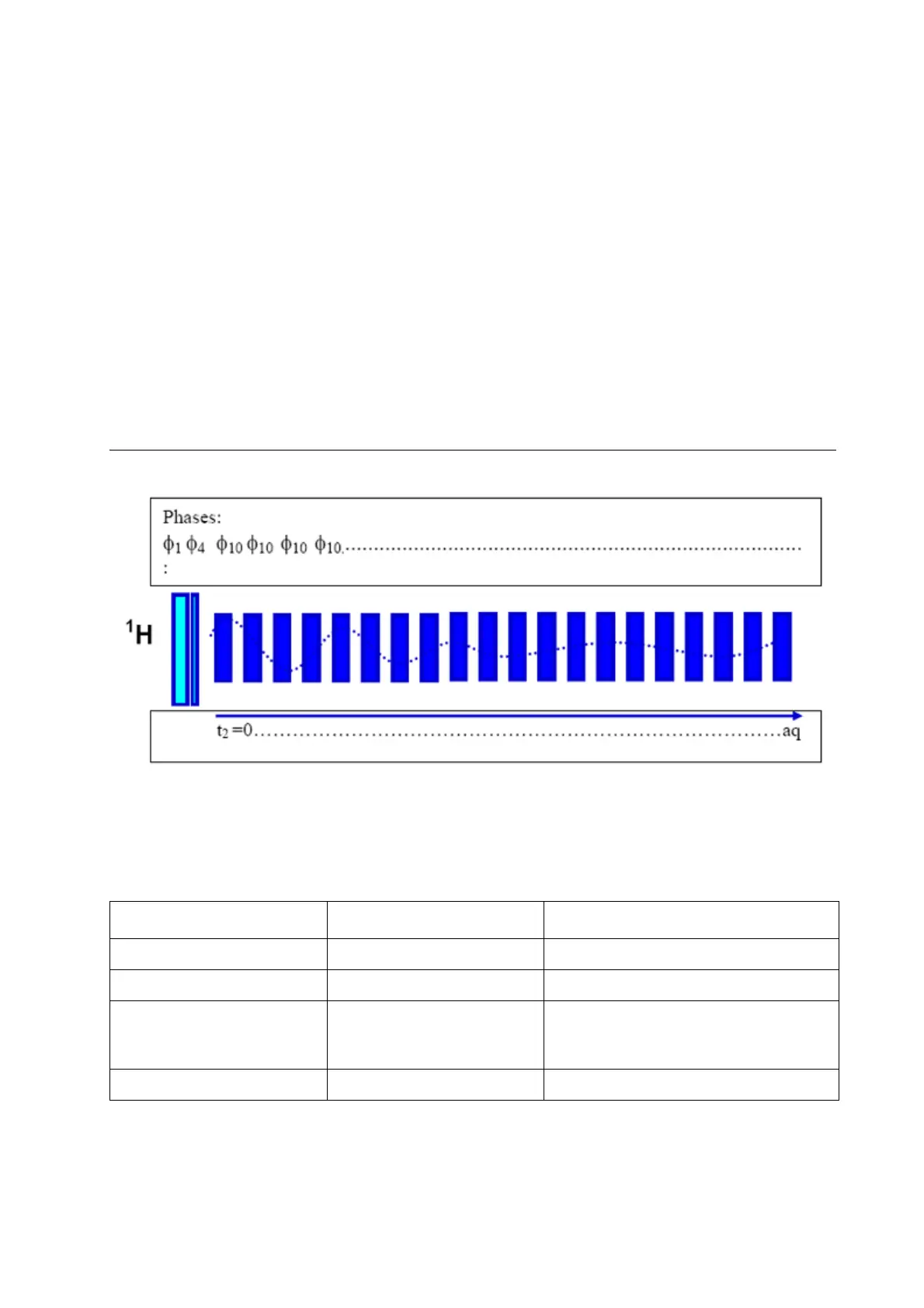

Pulse Sequence Diagram of W-PMLG or DUMBO 22.1

Figure 22.1. Pulse Sequence Diagram

Table 22.1. Phases, RF-Levels, Timings

Phases RF Power Levels Timing

= CYCLOPS, 1 2 3 0 pl12=set for around 100 kHz p1 around 2.5 µsec.

= 0 +cnst25, adjust ditto. p4 about 45 degrees, adjust.

= 0 sp1: set for 100-130 kHz WPMLG: p5, 1.2-1.5 µsec or calculated

from cnst20=RF field

DUMBO: p10 set by xau dumbo.

= CYCLOPS, 0 1 2 3
