28 (327) BRUKER BIOSPIN User Manual Version 002

General Hardware Setup

Wide Bore (WB) Magnet Probes

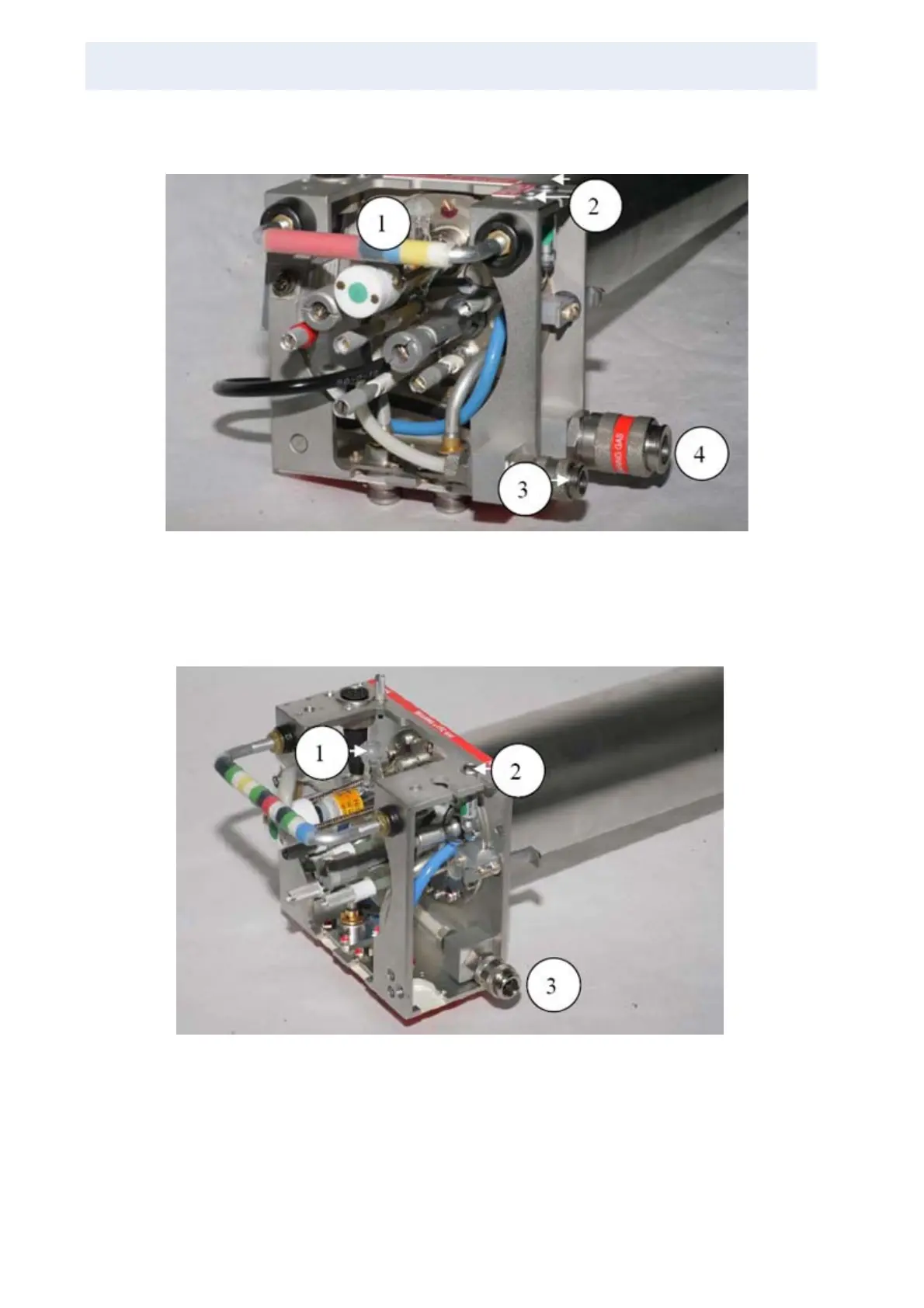

Figure 3.15. WB DVT Probe MAS Tubing Connections

Figure 3.16. VTN Probe MAS Tubing Connections Note: WVT Probes are VTN-

Type Probes

1. VT gas only input into dewar

2. Two thermocouple connectors

3. Drive gas in

4. Bearing gas in

1. VT plus bearing gas

2. One thermocouple connector at stator inlet

3. Drive gas
