74 (327) BRUKER BIOSPIN User Manual Version 002

Basic Setup Procedures

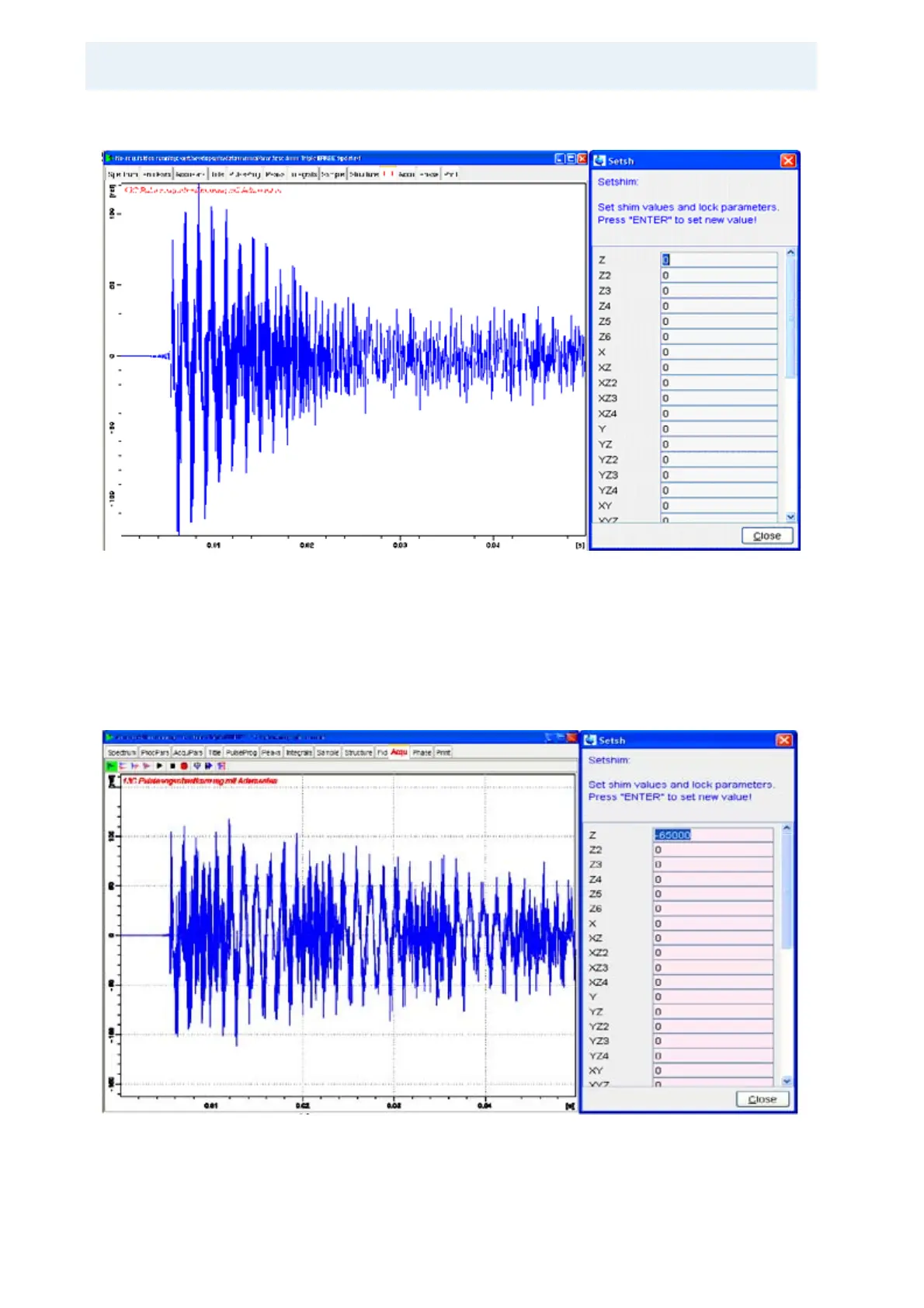

Figure 4.18. Adamantane

C FID with 50 msec aq. setsh Display

The figure above is an Adamantane

C FID with 50 msec aq, with setsh display

showing no shim values. N.b.: spinning removes part of the B

in homogeneities.

Probes which do not use susceptibility compensated coil wire can show much

shorter T

* and require much more shimming effort (only with older probes up to

400 MHz proton frequency).

Figure 4.19. Adamantane

C FID with 50 msec aq. setsh with Optimized Z-Shim

Value
