CRAMPS 1D

Digital Mode Acquisition 22.9

Most parameters stay the same as adjusted in analog mode.

The correction for the scaling factor must be done after acquisition, changing the

status parameter swh by typing s swh and dividing the value by the scaling factor

(about 0.578 for WPMLG, 0.47 for wpmlgd2 and 0.5 for DUMBO). Some pulse

programs are written such as to show the correct sweep width in ased, which can

then be set appropriately as s swh before transform.

Examples 22.10

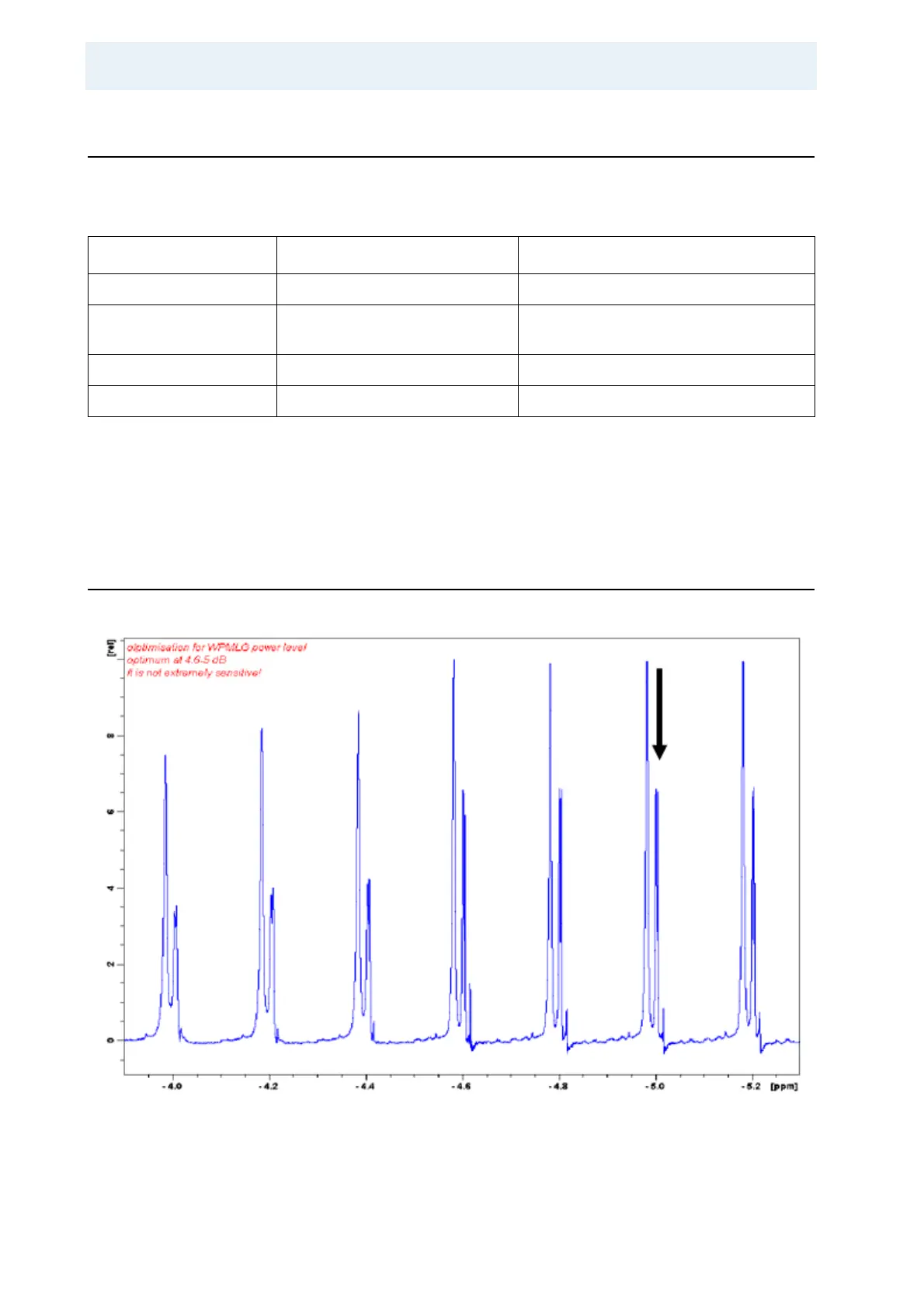

Figure 22.6. Optimizing sp1 for Best Resolution

Table 22.4. Parameters for Digital Mode

Parameter Value Comment

pulprog dumbod or wpmlgd AV 3 instruments only.

digmod

dspfirm

digital

sharp or medium

aqmod qsim or dqd

swh 50000-10000 Depending on spectral range and o1.
