24 (327) BRUKER BIOSPIN User Manual Version 002

General Hardware Setup

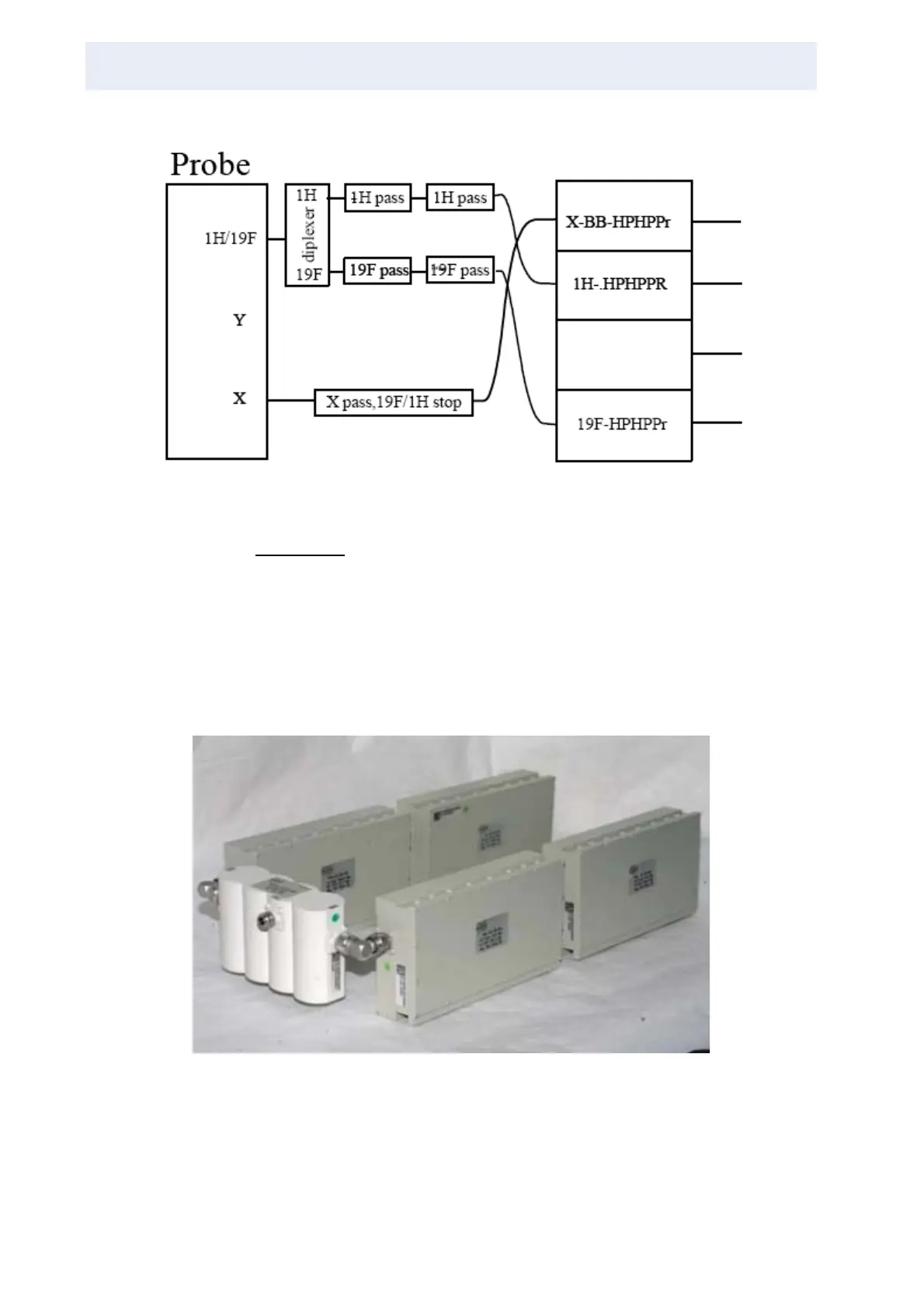

Figure 3.10. Triple Resonance 1H/19F-Experiment

Figure 3.10.

is a double/triple resonance HF-experiment, with

F observation

and

H decoupling or X-observation with

F and

H decoupling (WB probes ≥

400 MHz only! For SB probes and <400 MHz different hardware is used). A set of

H-transmitter/bandpass/preamp and

F-transmitter/bandpass/preamp is re-

quired.

Note: a standard

F preamplifier will not allow long 19F pulses through it! For

short pulses it is ok, for decoupling it must be bypassed, or a dedicated

F pre-

amp must be used.

Figure 3.11. 19F/1H Combiner/Filter Set
