Bruker BioSpin Solid State NMR - Figure 3.25. WB Wideline or PE Probes; Figure 3.26. WB Wideline or PE Probe Connections

Additional Connections for VT Operation
User Manual Version 002 BRUKER BIOSPIN 35 (327)

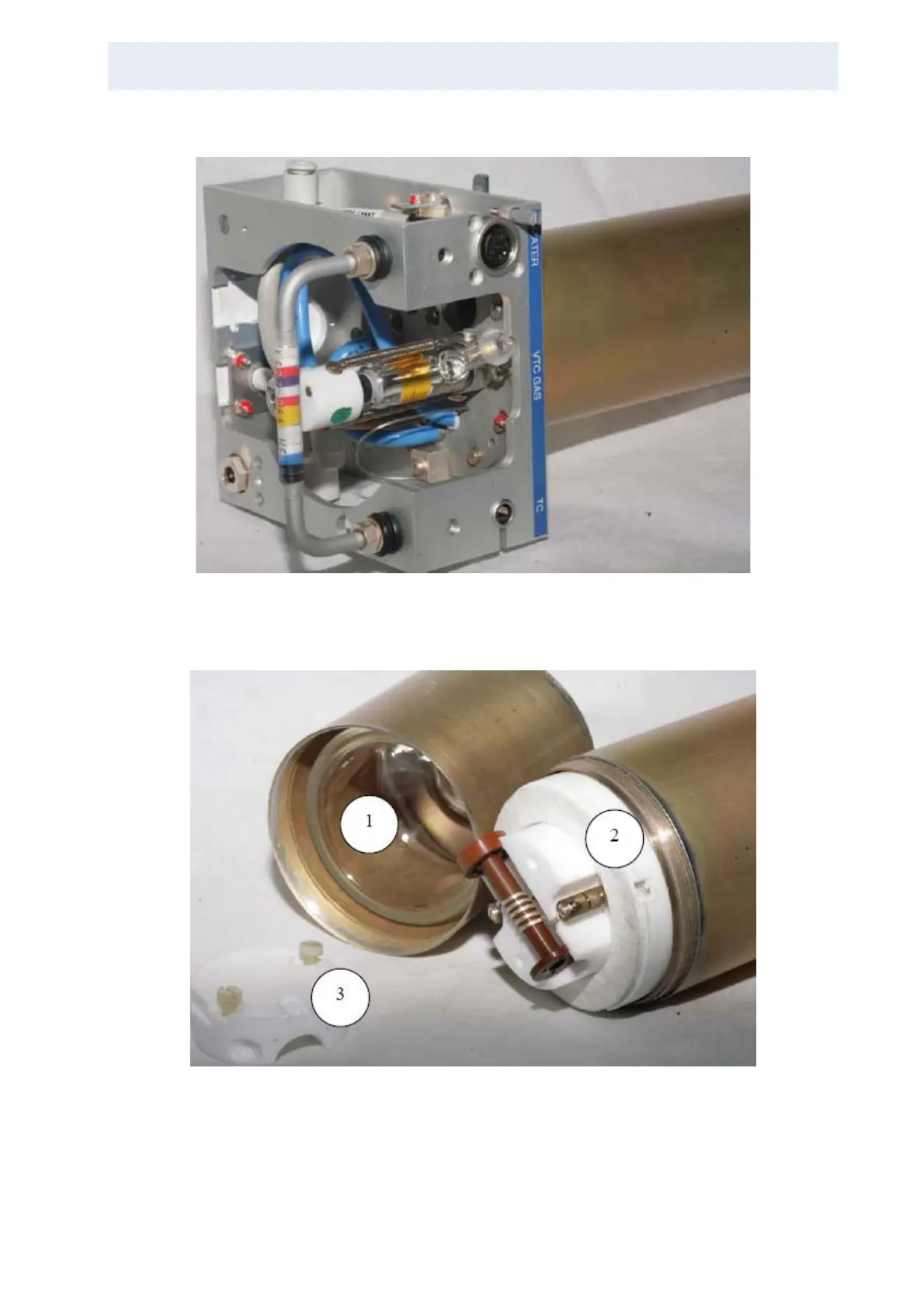

Figure 3.25. WB Wideline or PE Probes
Figure 3.26. WB Wideline or PE Probe Connections
1. Bell shaped glass dewar around sample chamber
2. Insulating and sealing Al
2
O
3
- felt ring
3. Cover for coil/sample compartment, fixed with plastic or metal screws
