Additional Connections for VT Operation

User Manual Version 002 BRUKER BIOSPIN 37 (327)

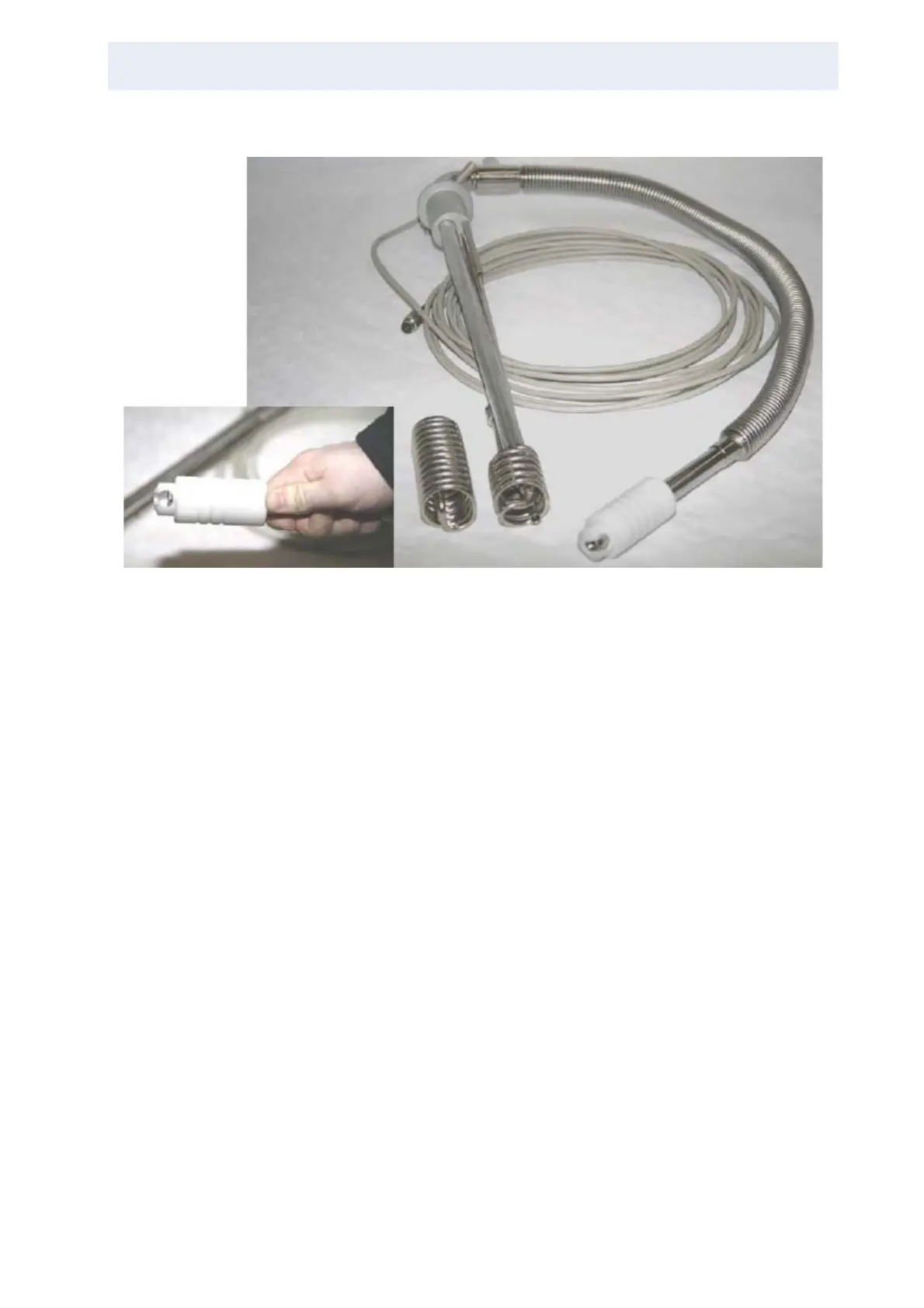

Figure 3.28. Low Temperature Heat Exchanger for DVT Probes

The low temperature heat exchanger for DVT probes in the figure above uses the

exchanger coil with 6 turns, the larger one may be used for high resolution

probes. To use the spring loaded connection device shown in the close-up:

1. Compress the spring.

2. Move the hollow part over the ball joint.

3. Release the spring.
