Basic CP-MAS Experiments

User Manual Version 002 BRUKER BIOSPIN 111 (327)

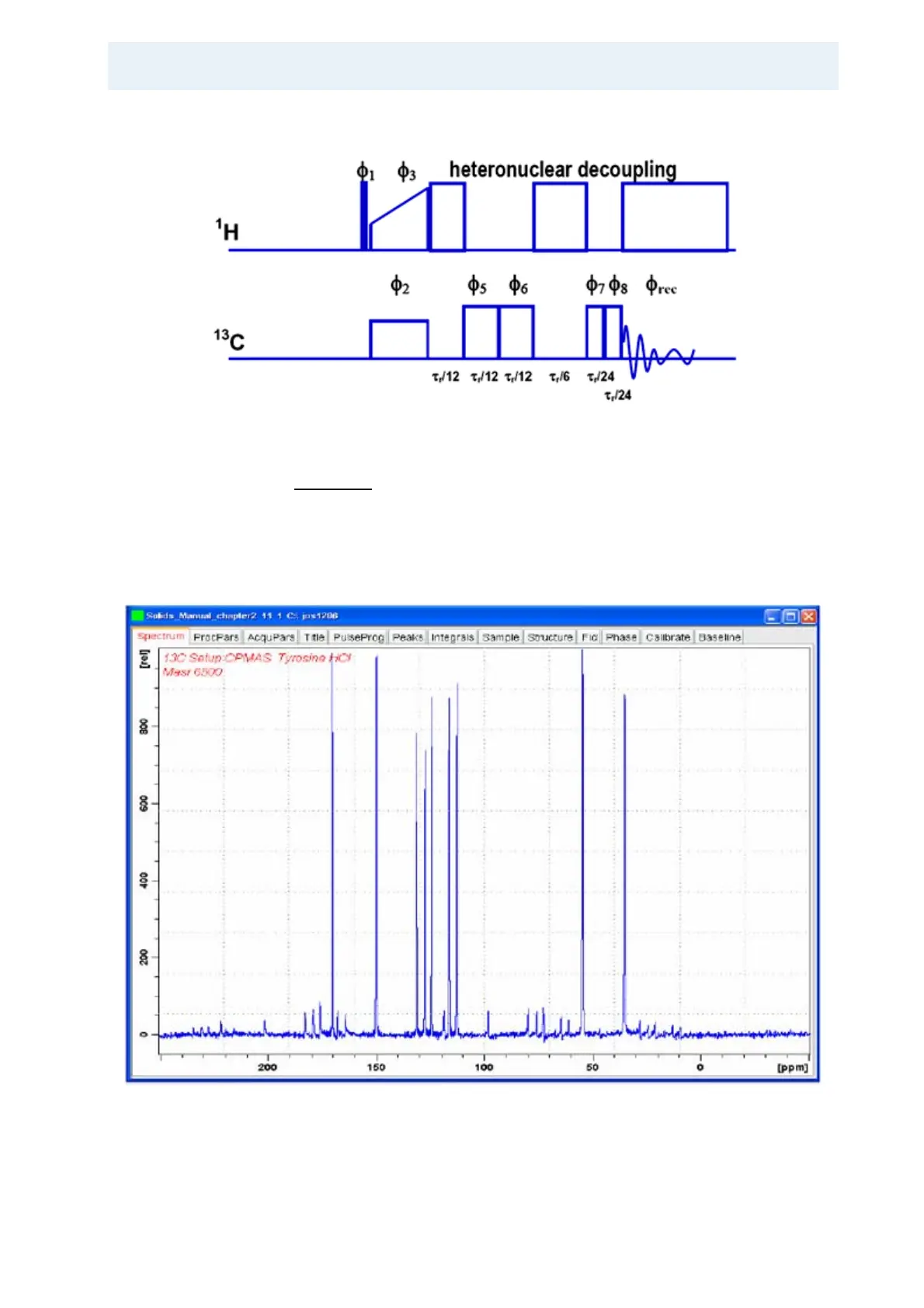

Figure 7.6. Pulse Program for SELTICS.

In Figure 7.6. one can see that the SELTICS experiment takes only ½ rotor period

compared to the 2 rotor periods required in the TOSS experiment.

Use glycine or tyrosine.HCl at reasonable spinning speed.

Figure 7.7. SELTICS at 6.5 kHz Sample Rotation on Tyrosine HCl.
