Bruker BioSpin Solid State NMR - Acquisition Parameters; Figure 11.2. the Acquisition Parameter Window (Eda)

To Next Page

To Previous Page

Proton Driven Spin Diffusion (PDSD)

User Manual Version 002 BRUKER BIOSPIN 147 (327)

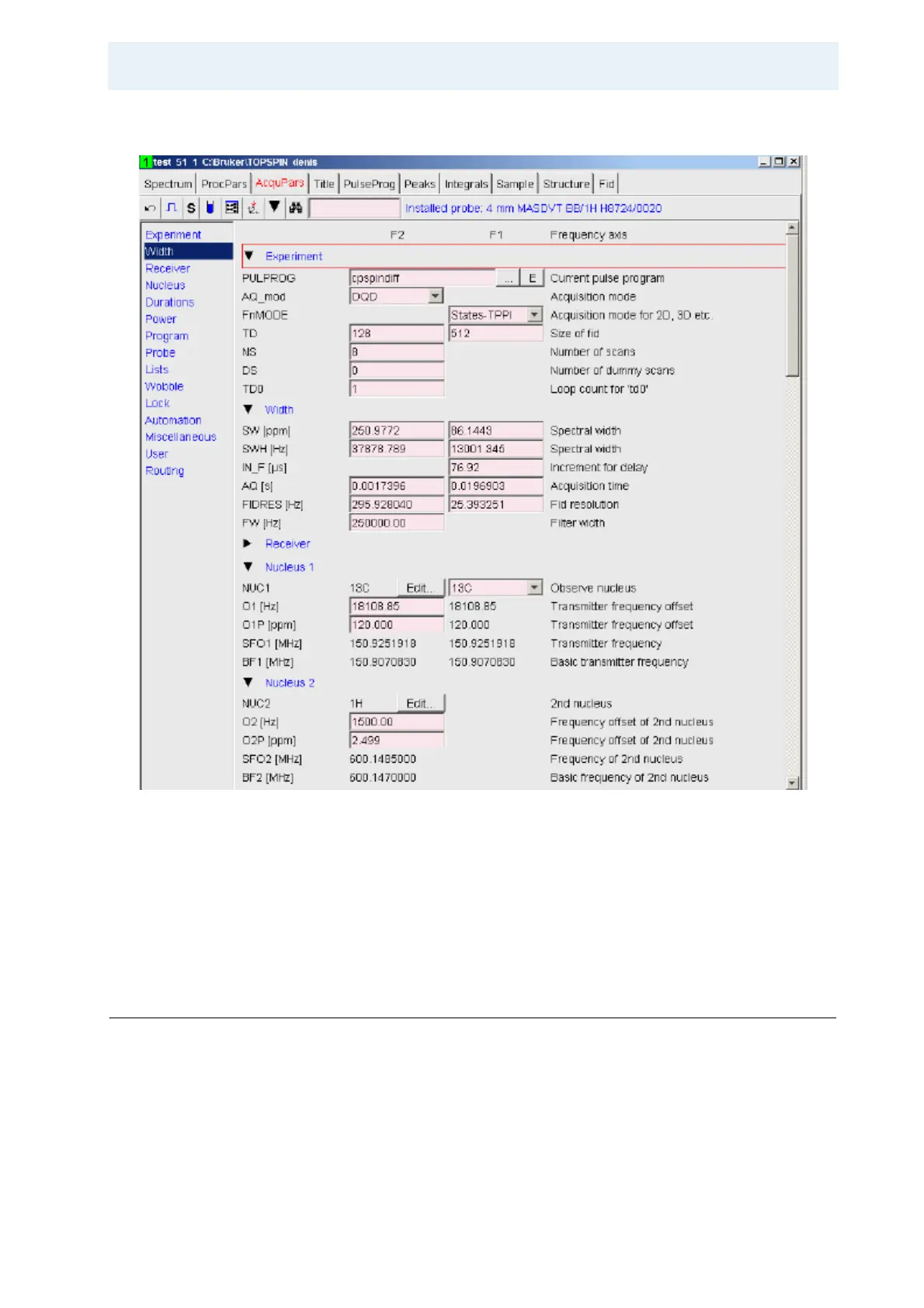

Figure 11.2. The Acquisition Parameter Window (eda)

14. Set pl14, if DARR/RAD is desired, else make sure pl14 = 120 dB. For DARR/

RAD calculate the required power level using calcpowlev, or use the setup pro

cedure shown in 11.7.

15. Start the experiment.

Acquisition Parameters 11.3

Sample:

C labelled histidine (labelled tyrosine-HCl).

Experiment time: 90 min. (20 min.).
