30 (327) BRUKER BIOSPIN User Manual Version 002

General Hardware Setup

Standard Bore (SB) Magnet Probes

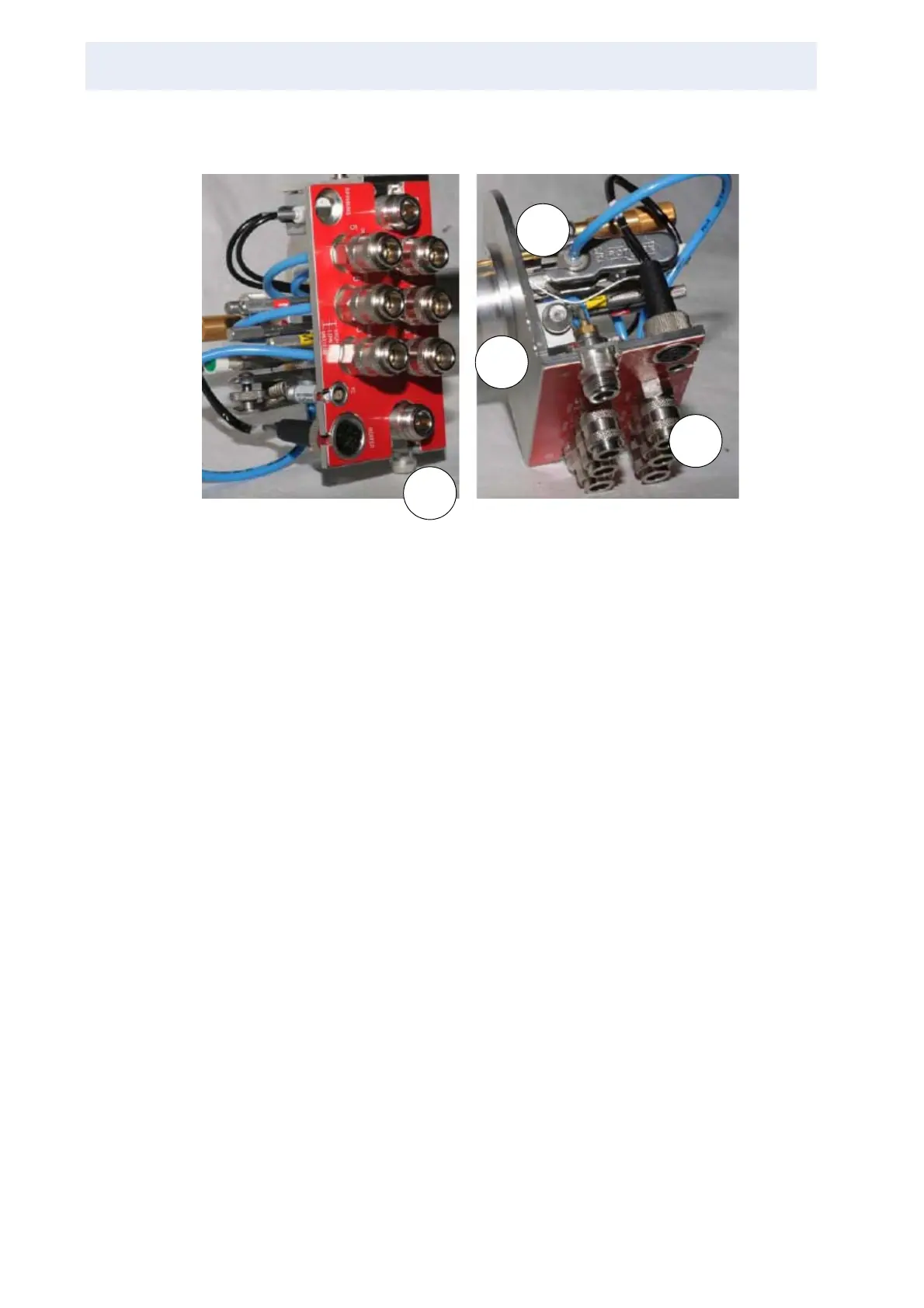

Figure 3.19. SB VTN Probe MAS Connections

With the standard bore VTN probe, quick fit connectors include:

• Bearing (3).

• Eject (2).

• Drive (5).

• Vertical (7) to the tilt stator for eject.

• Magic Angle (8) to tilt stator into the magic angle.

• Bearing sense (to supervise bearing pressure, shut down in case of a pressure

loss).

For LT experiments, the ball joint at the heater dewar must be opened and the

transfer line of the heat exchanger or the cooling unit must be connected.

1. Frame flush for VT.

2. Ball joint takes bearing gas from the Quickfit connector at the front into the heater dewar.

3. Bearing connector for ambient temperature gas.
