Connections to the Preamplifier

User Manual Version 002 BRUKER BIOSPIN 19 (327)

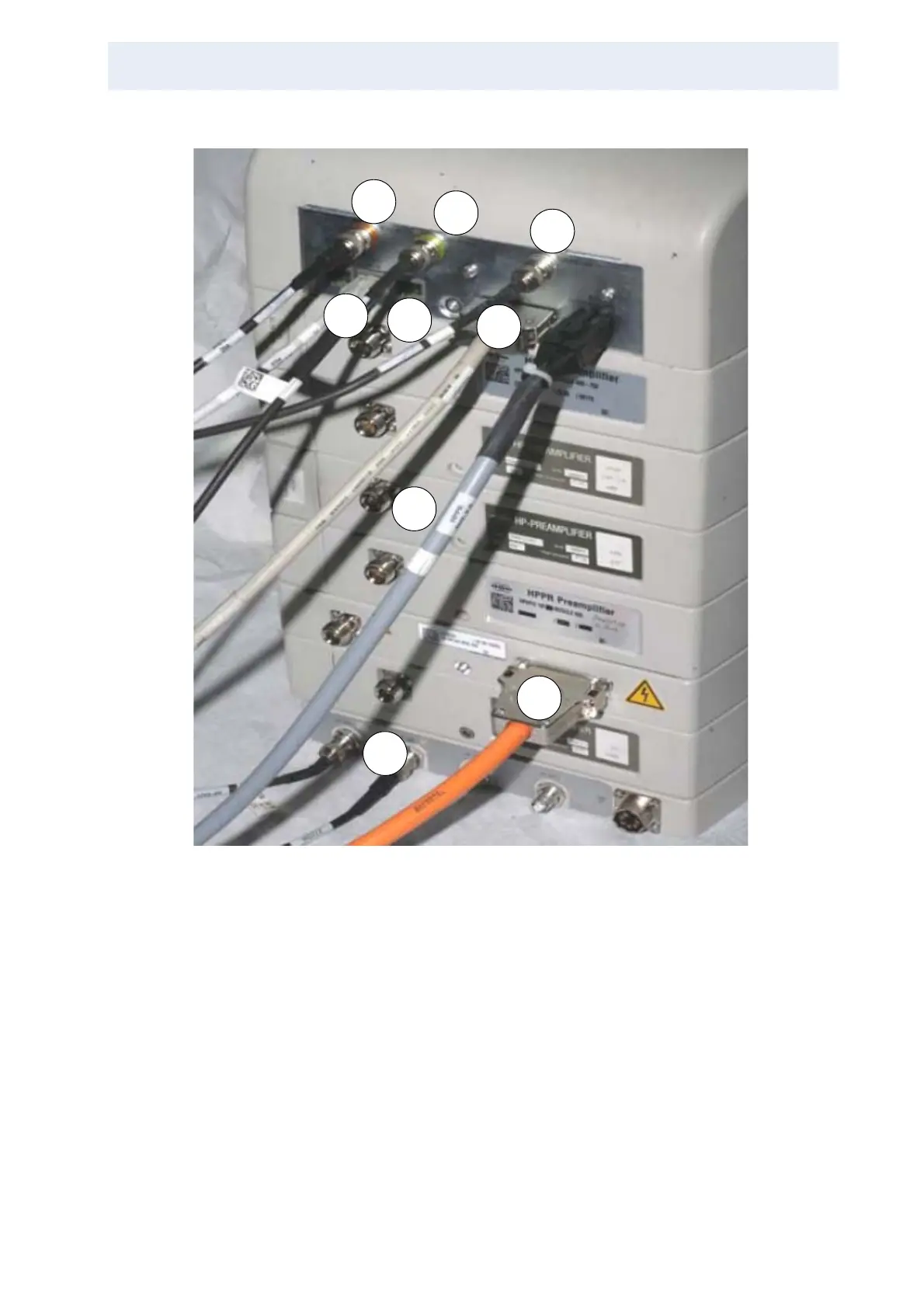

Figure 3.4. Additional Connections to the Preamplifier Stack.

1. RF signal out to receiver

2. Lock signal out to lock receiver

3. Tune RF in (from SGU 2 aux out)

4. PICS probe ID cable to probe

5. ATMA and AUX connectors

6. RS 485 control connection and DCin

7. Additional DC supply for >3 preamps

8. High voltage DC for HPLNA-preamp

9. Additional controls for multi-receiver
