Bruker BioSpin Solid State NMR - Spectral Processing; Figure 14.6. PC7 2 D SQ-SQ Correlation on Tyrosine-Hcl

To Next Page

To Previous Page

Symmetry Based Recoupling

User Manual Version 002 BRUKER BIOSPIN 191 (327)

Spectral Processing 14.7

Processing parameters: as above

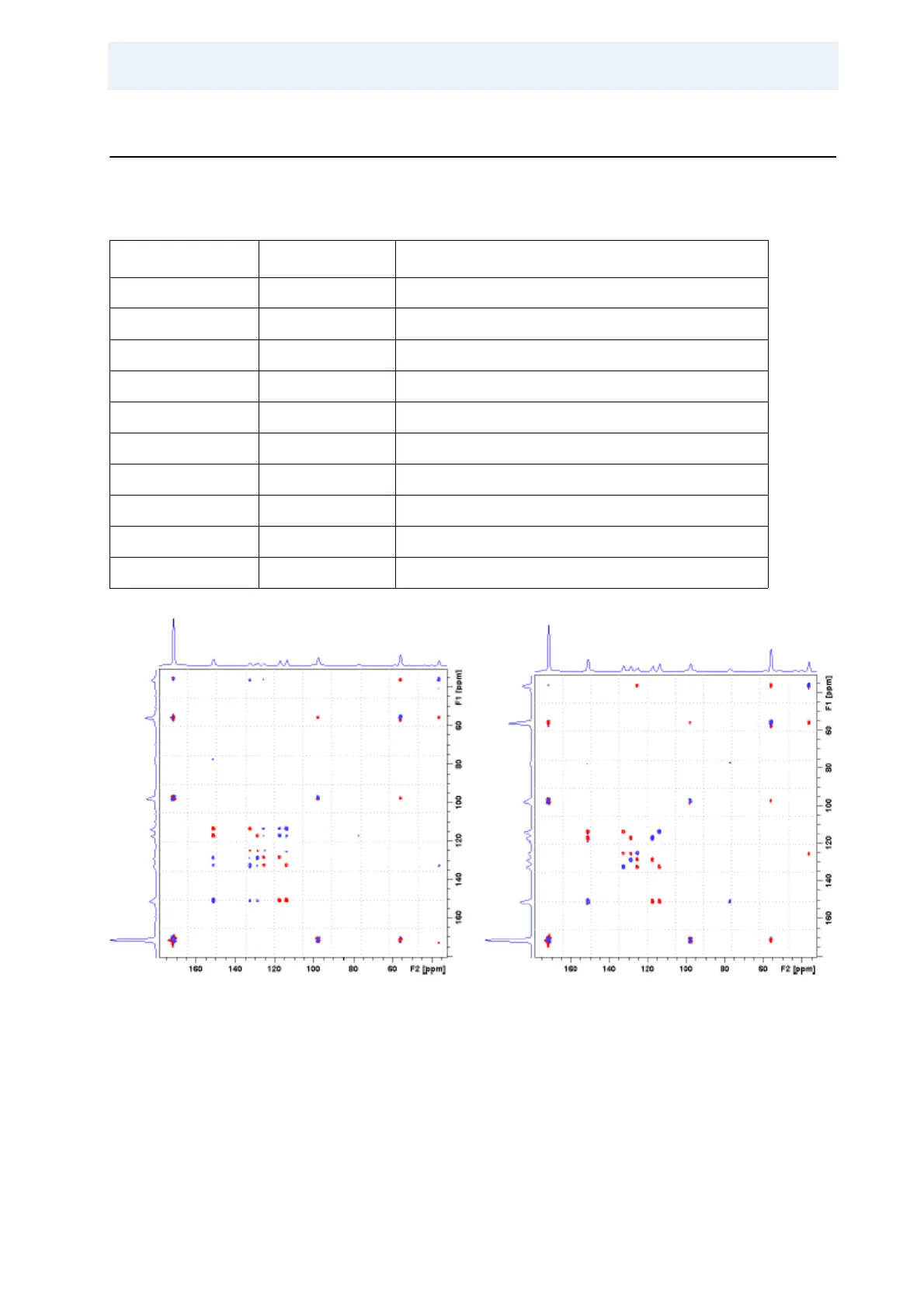

Figure 14.6. PC7 2d SQ-SQ correlation on tyrosine-HCl

PC7 2d SQ-SQ correlation on tyrosine-HCl, 56 rotor periods mixing at 13 kHz, 2.5

mm probe, AV III 700 SB. Left: 84 rotor periods DQ mixing, right:56 rotor periods

mixing. The 84 periods mixing time show relayed correlations (positive, blue)

which are absent at 56 periods mixing (except for the SSB cross peaks). Direct

correlations are negative (red).

Parameter Value Comment

F1 acquisition

C (left column)

SI 2-4 k Number of points and zero fill.

WDW QSINE Sine bell squared.

SSB 2-5 Shifted sine bell.

PH_mod pk Phase correction if needed.

F2 indirect

C (right column)

SI 256-1024 Zero fill.

MC2 STATES-TPPI

WDW QSINE Sine bell squared.

SSB 2-5 90º shifted sine bell.
