Basic CP-MAS Experiments

User Manual Version 002 BRUKER BIOSPIN 113 (327)

Non-Quaternary Suppression (NQS) 7.4

The NQS experiment is a simple spectral editing experiment. It relies on the fast

dephasing of rare spins coupled to

H spins through the heteronuclear dipolar in-

teraction. For the dephasing delay d3 one uses between 30 and 80 µs.

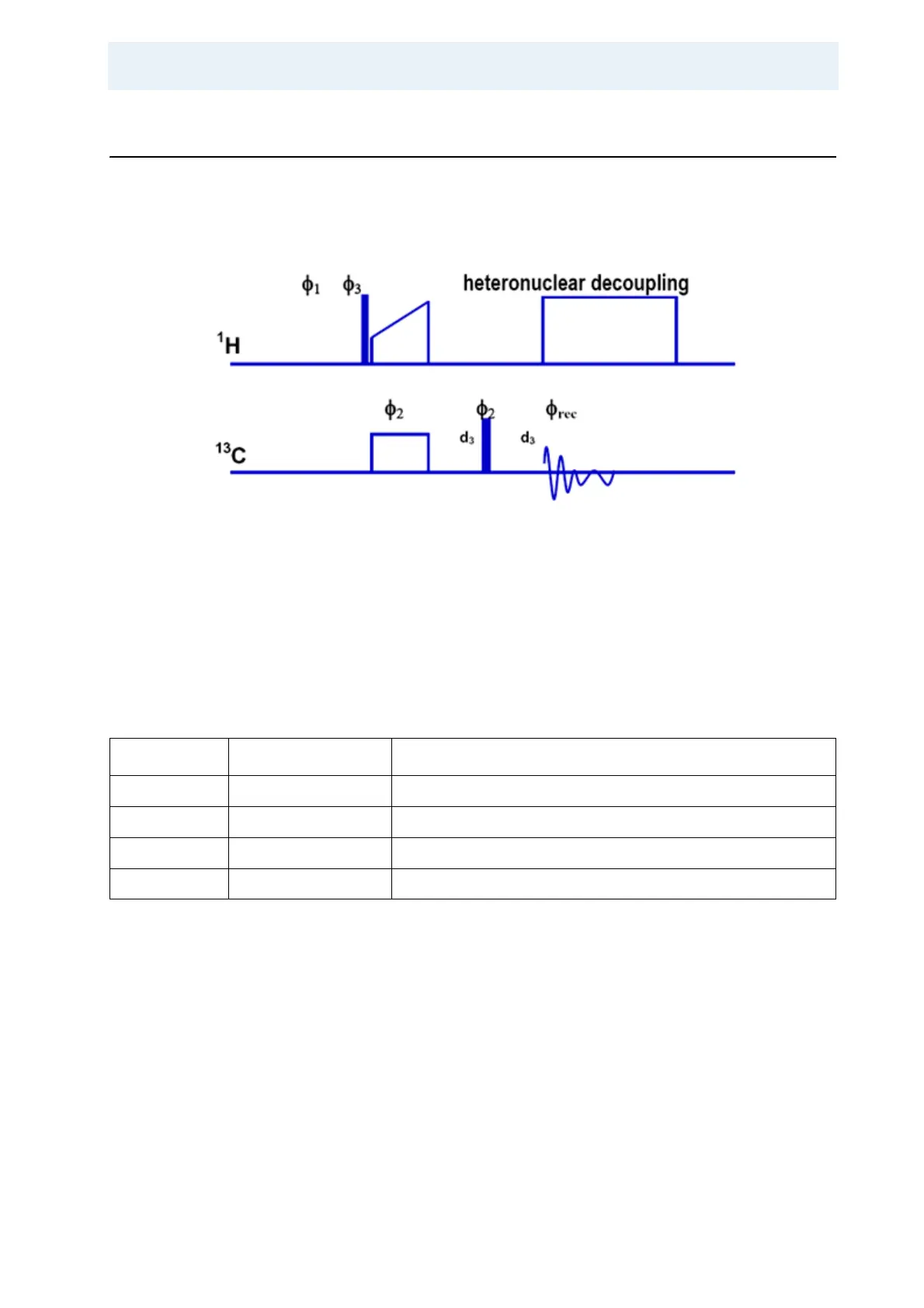

Figure 7.9. Block Diagram of the Non-quaternary Suppression Experiment

The non-quatemary suppression experiment is also called the dipolar dephas-

ing experiment.

Use glycine or tyrosine spinning at 11 kHz as before.

Table 7.3. Acquisition Parameters

Parameter Value Comments

pulprog cpnqs, cptoss_nqs

p2 180° pulse on X nucleus.

pl11 Power level driving P2 on X-channel.

d3 30 – 80 µs Dephasing delay.
