FSLG-HETCOR

User Manual Version 002 BRUKER BIOSPIN 125 (327)

Results 8.3

A full plot of a FSLG-HETCOR on labeled tyrosine-HCl is shown in the next figure.

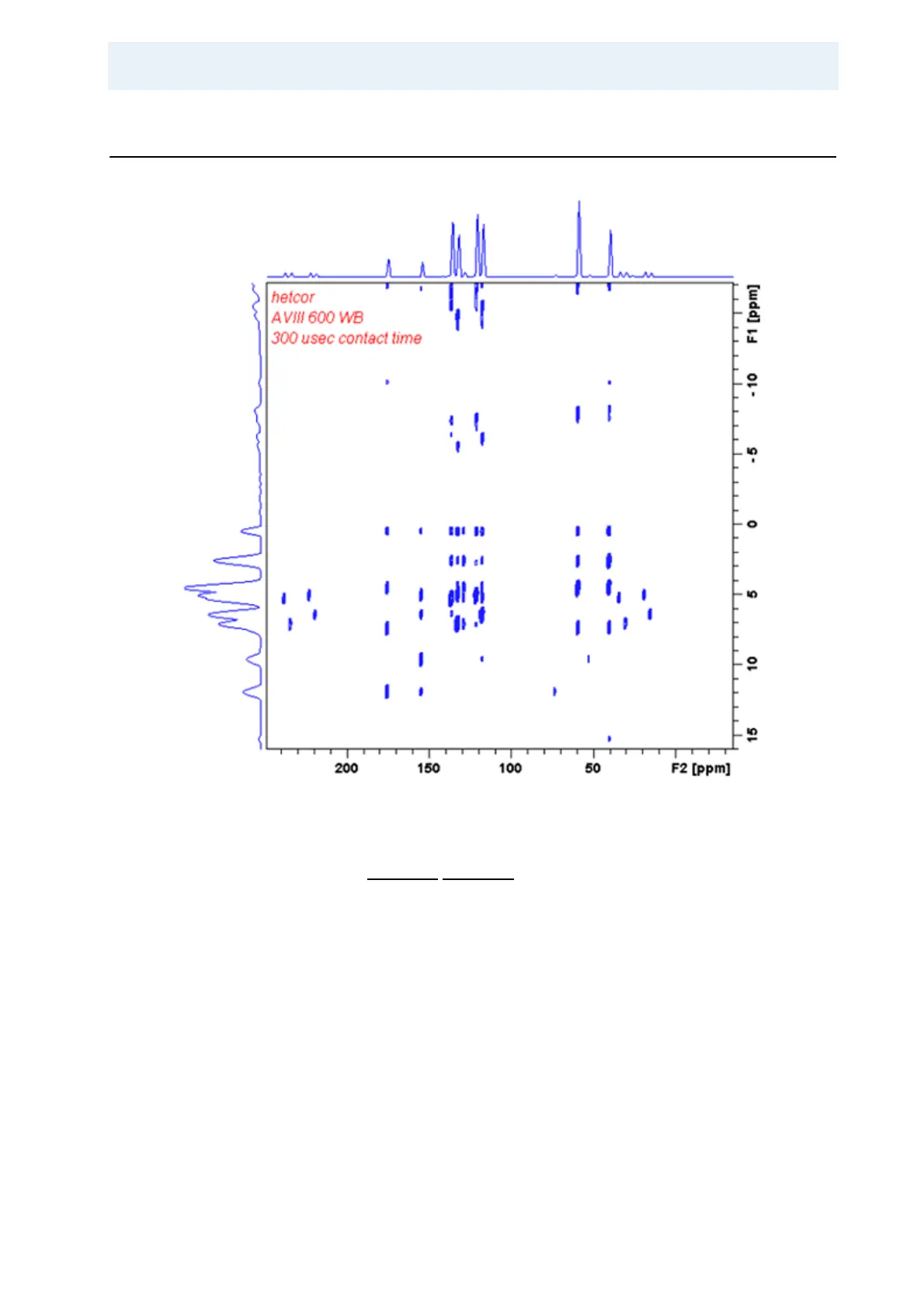

Figure 8.4. FSLG Hetcor Spectrum Tyrosine HCl

The figure above shows a FSLG Hetcor Spectrum Tyrosine HCl with parameters

as shown in

Table 8.1./Table 8.2.. Full transform with slight resolution enhance-

ment, qsine/SSB=3. Proton shifts calibrated as 2.5 and 12 (most high field/low

field peak). Center ridge at 0 ppm along F1 is spin locked signal which does not

follow the FSLG-evolution. Cnst24 is used to separate the proton spectrum from

this ridge. The contact time of 300 µsec shows many long range couplings. The

next figure shows the region of interest excluding the center ridge and the spin

ning sidebands.
