276 (327) BRUKER BIOSPIN User Manual Version 002

CRAMPS 1D

Pulse Shapes for W-PMLG and DUMBO 22.2

Both shapes are purely phase modulated pulses, their amplitudes are constant

throughout. The PMLG shape is a standard shape delivered with the software

(wpmlg1, m5m, m5p). DUMBO shapes are generated using the standard AU-

program dumbo. Calling dumbo with xau dumbo will ask for the slice length of the

shape (usually 1 µsec), the number of slices (usually 32), generate the shape and

load the name of this shape into the current parameter set, it will also set the

length of the shaped pulse, p10, to 32 µsec. N.B.: at magnetic fields higher than

500 MHz, it is recommended to replace the standard 32 µsec timing by 24 µsec

timing and increasing the power level accordingly, since this has been found to

give better results.

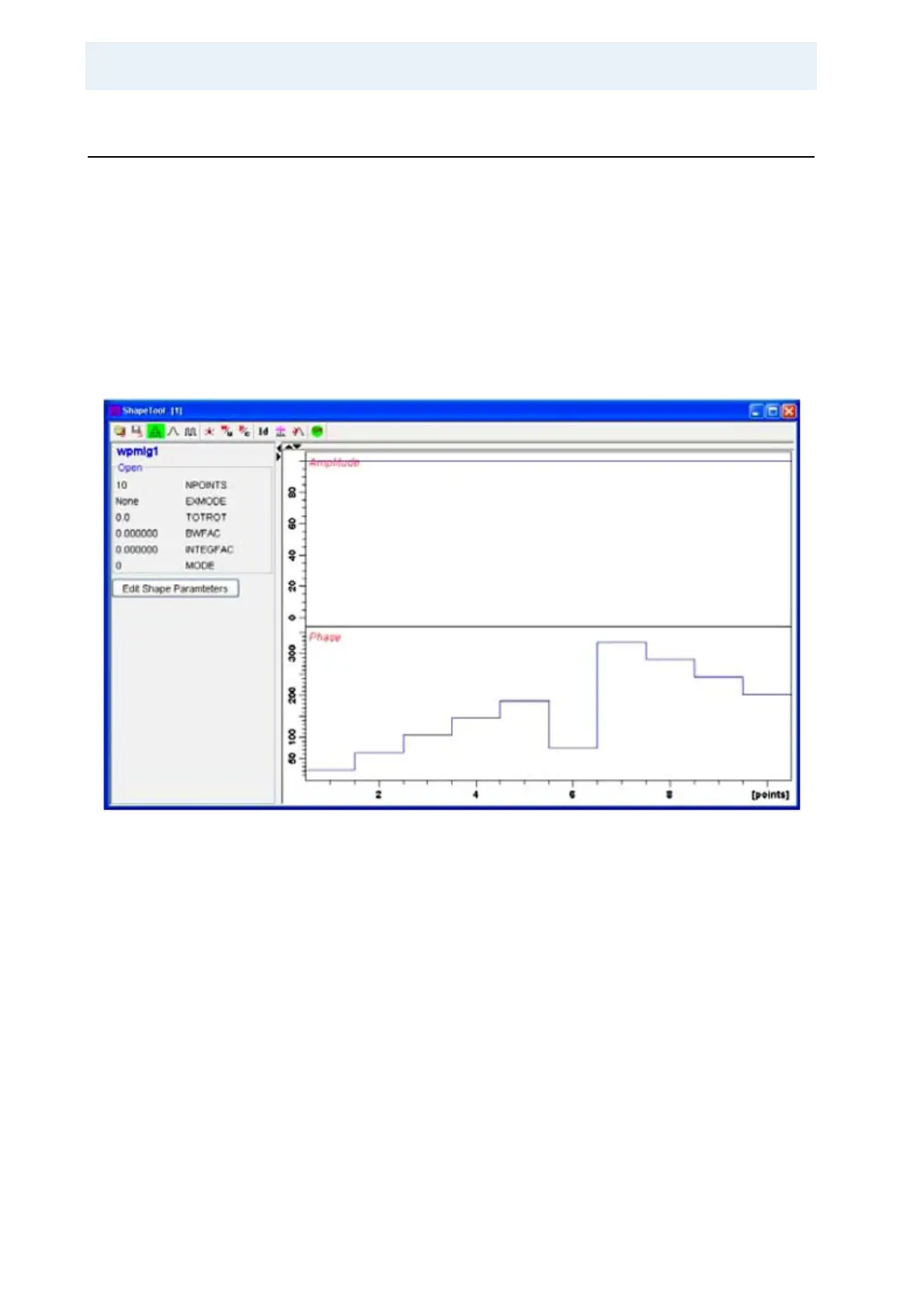

Figure 22.2. PMLG Shape for wpmlg, sp1
