184 (327) BRUKER BIOSPIN User Manual Version 002

Symmetry Based Recoupling

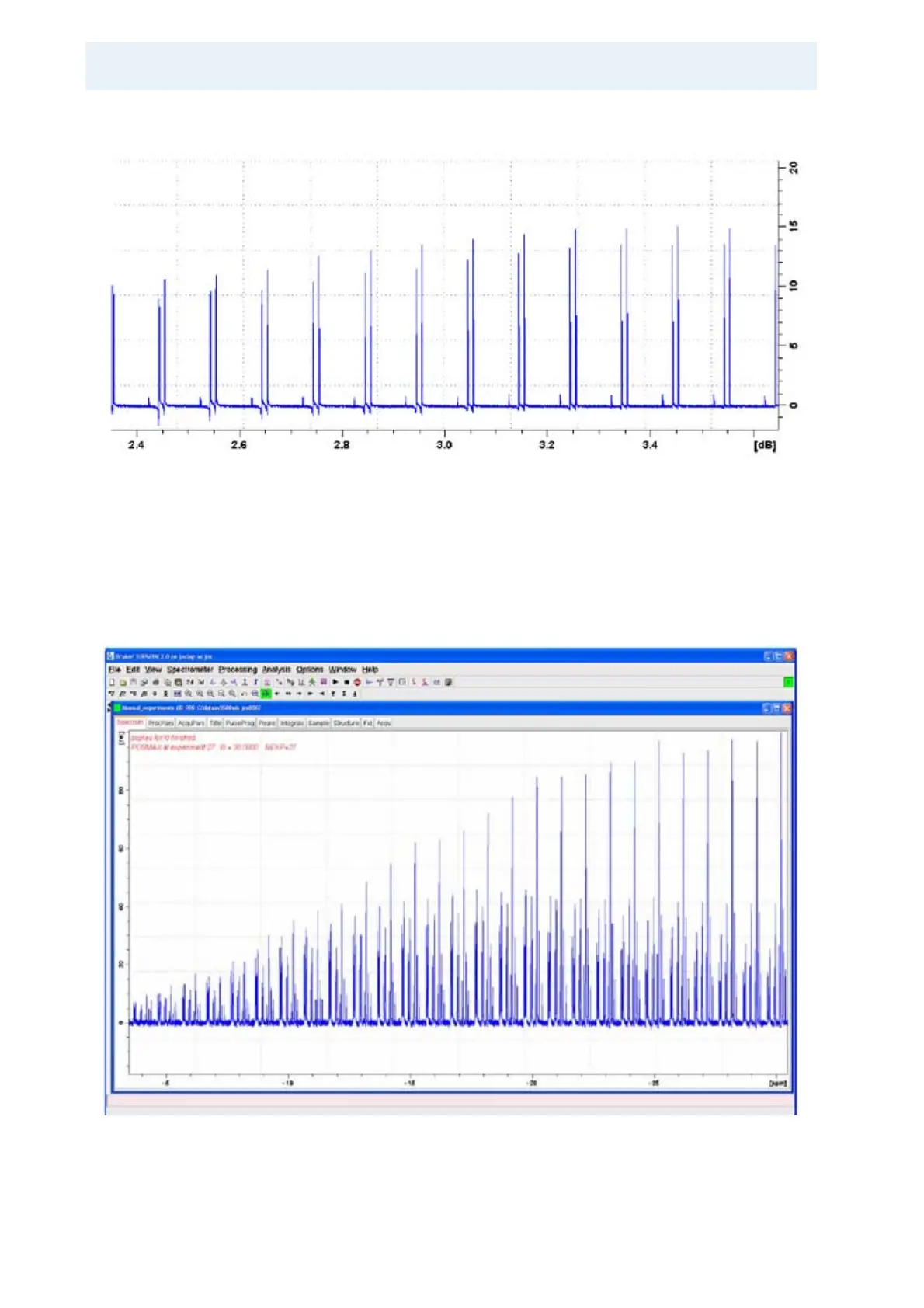

Figure 14.2. Optimization of the RF power level for DQ generation/reconversion

on glycine.

In principle, both peaks must grow together as one approaches the RF=7*MASR

condition, but the resonances are differently influenced by non-ideal off-HH condi

tions. The glycine α-peak is usually hard to get off HH, so it is frequently too small.

Optimise the LG-decoupling condition on the glycine α-peak (step 12).

Figure 14.3. Variation of DQ-generation/reconversion time on a uniformly

C la-

beled peptide (fMLF).
