Bruker BioSpin Solid State NMR - Figure 3.43. Pulse on F2, Observe on F1 - Routing; Figure 3.44. the Edasp Display for a System with Two Receiver Channels

To Next Page

To Previous Page

54 (327) BRUKER BIOSPIN User Manual Version 002

General Hardware Setup

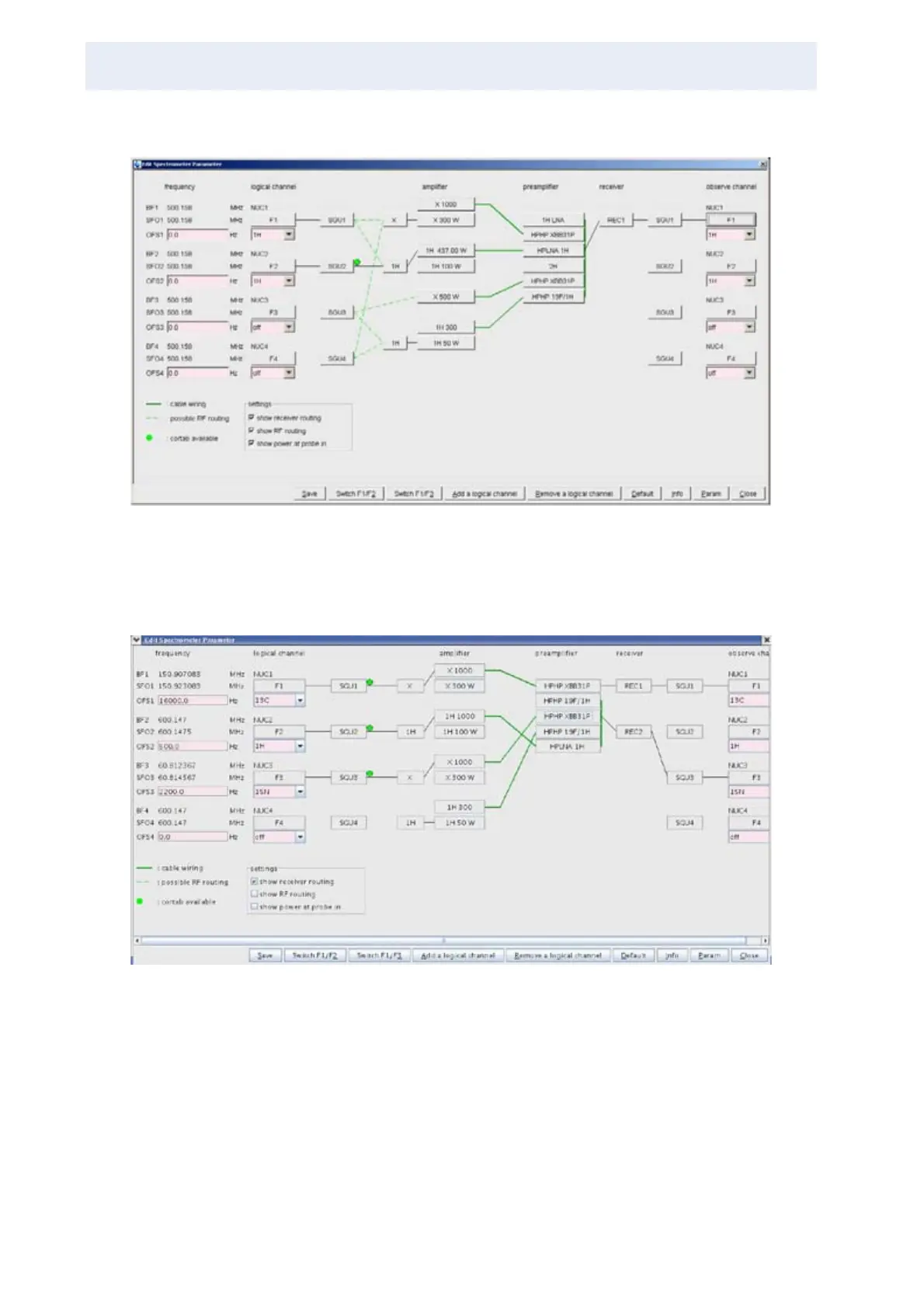

Figure 3.43. Pulse on F2, Observe on F1 - Routing

In the figure above the SGU2 is used for pulsing and the SGU1 is used to receive.

Figure 3.44. The edasp Display for a System with two Receiver Channels

In the figure above the edasp display for a system with two receiver channels, set

for observe on

C and

N, while decoupling on protons. The same SGU is used

for pulse and detection on both receiver channels.
