Basic CP-MAS Experiments

User Manual Version 002 BRUKER BIOSPIN 107 (327)

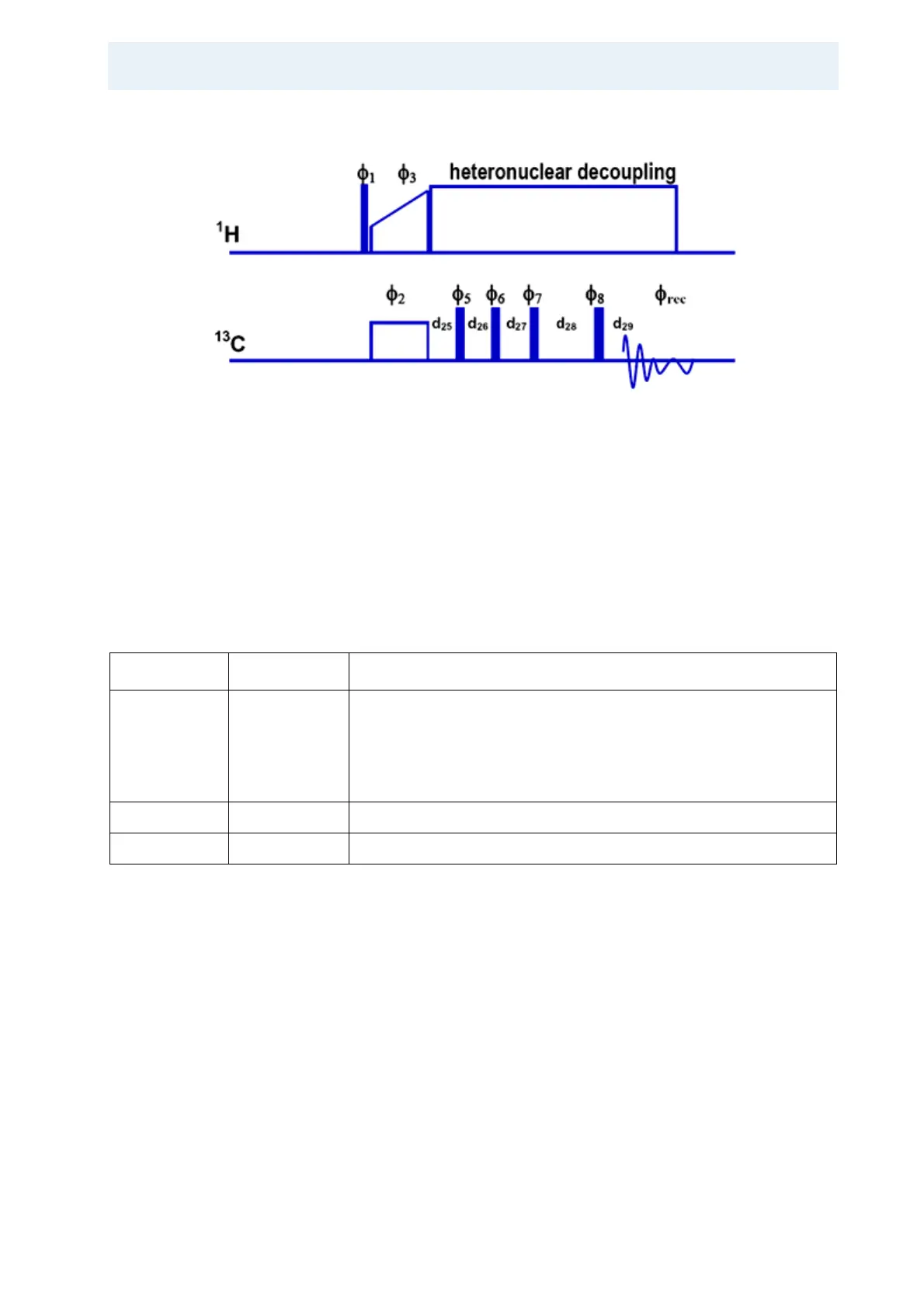

Figure 7.2. Pulse Program for CPTOSS.

If the timing becomes a problem, alternative TOSS schemes need to be found

(see e.g. O.N. Antzutkin, Sideband manipulation in magic-angle-spinning nuclear

magnetic resonance; Progress in Nuclear Magnetic Resonance Spectroscopy 35

(1999) 203-266.). The SELTICS sequence is an alternative.

Set up the experiment using glycine or tyrosine-HCl at a moderate spinning

speed. Get a good CPMAS spectrum first then run a TOSS spectrum.

Table 7.2. Acquisition Parameters

Parameter Value Comments

pulprog cptoss

cptoss243

p2 180° pulse on X nucleus

pl11 Power level driving P2 on X-channel

cnst31 Spinning speed in Hz e.g. 5 kHz the entry would be 5000

zgoptns -Dtossb Tossb if needed because of high spinning speed or long p2
