CRAMPS 1D

User Manual Version 002 BRUKER BIOSPIN 283 (327)

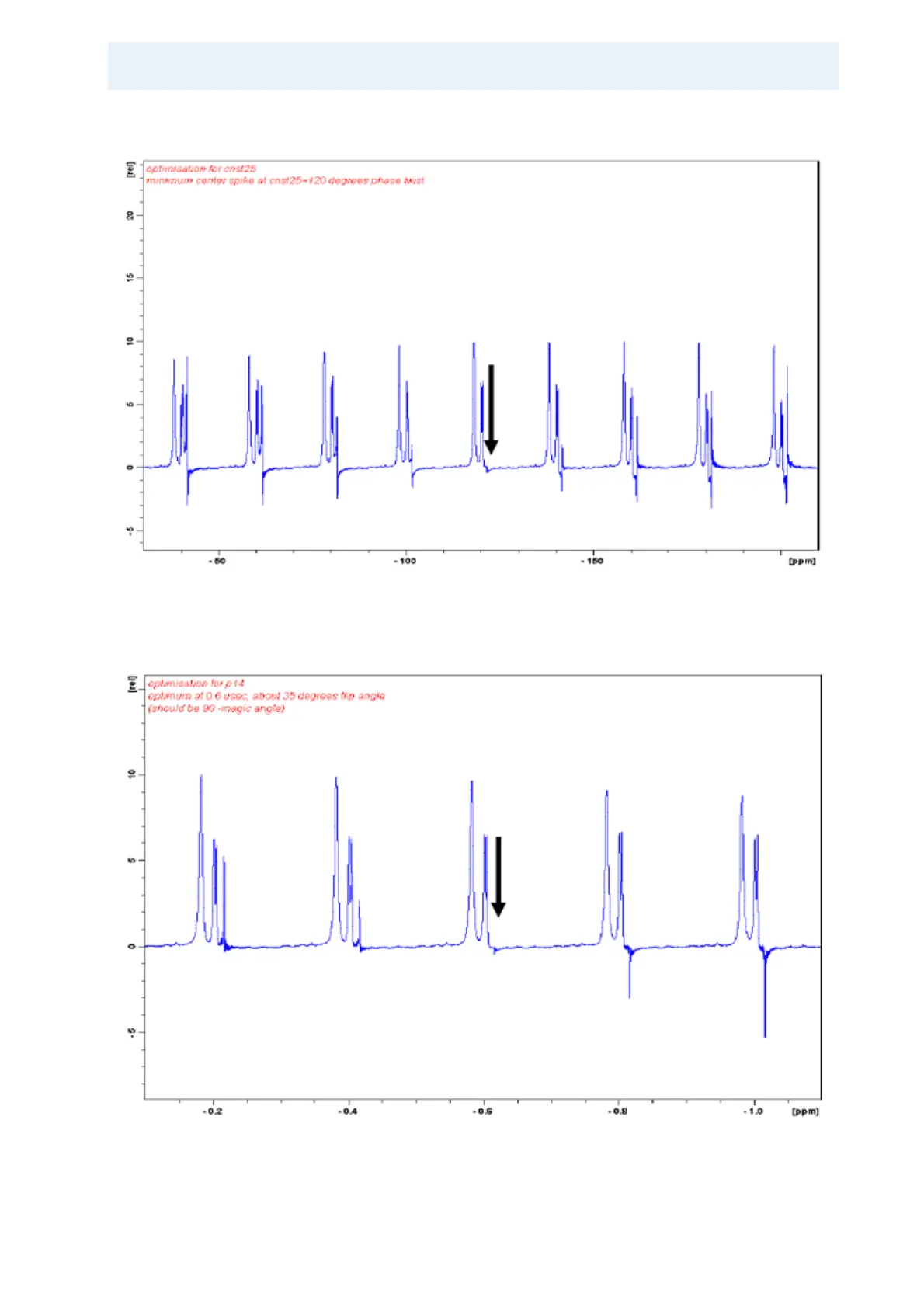

Figure 22.7. Optimizing cnst25 for Minimum Carrier Spike, Optimized at 120°C

Figure 22.8. Optimizing p14 for Minimum Carrier Spike, Optimized at 0.6 µsec
