Bruker BioSpin Solid State NMR - Figure 4.10. Routing for a Double Resonance Experiment Using High Power Stage for H and X-Nu

To Next Page

To Previous Page

66 (327) BRUKER BIOSPIN User Manual Version 002

Basic Setup Procedures

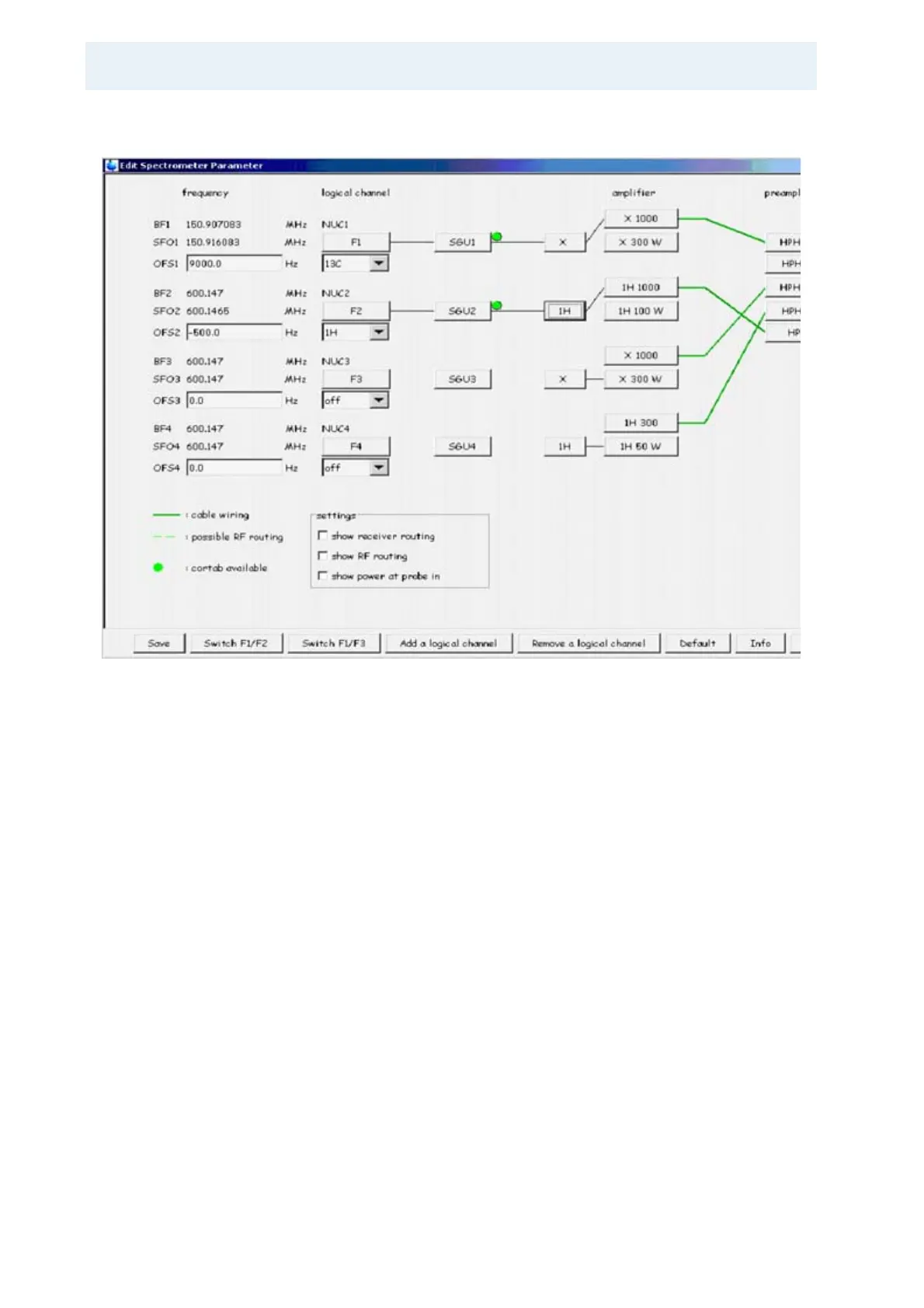

Figure 4.10. Routing for a Double Resonance Experiment using High Power

Stage for H and X-nucleus

The figure above shows the routing for a double resonance experiment, e.g. a

experiment with

H decoupling. For high power transmitters, the parameter pow-

mod must be set to high. To check which power mode is selected, one may click

the default button, change to powmod high in the command line if necessary.

Note: the routing is only effective if the parameter powmod = high.

To change to proton observe, click SwitchF1/F2.
