Additional Connections for VT Operation

User Manual Version 002 BRUKER BIOSPIN 33 (327)

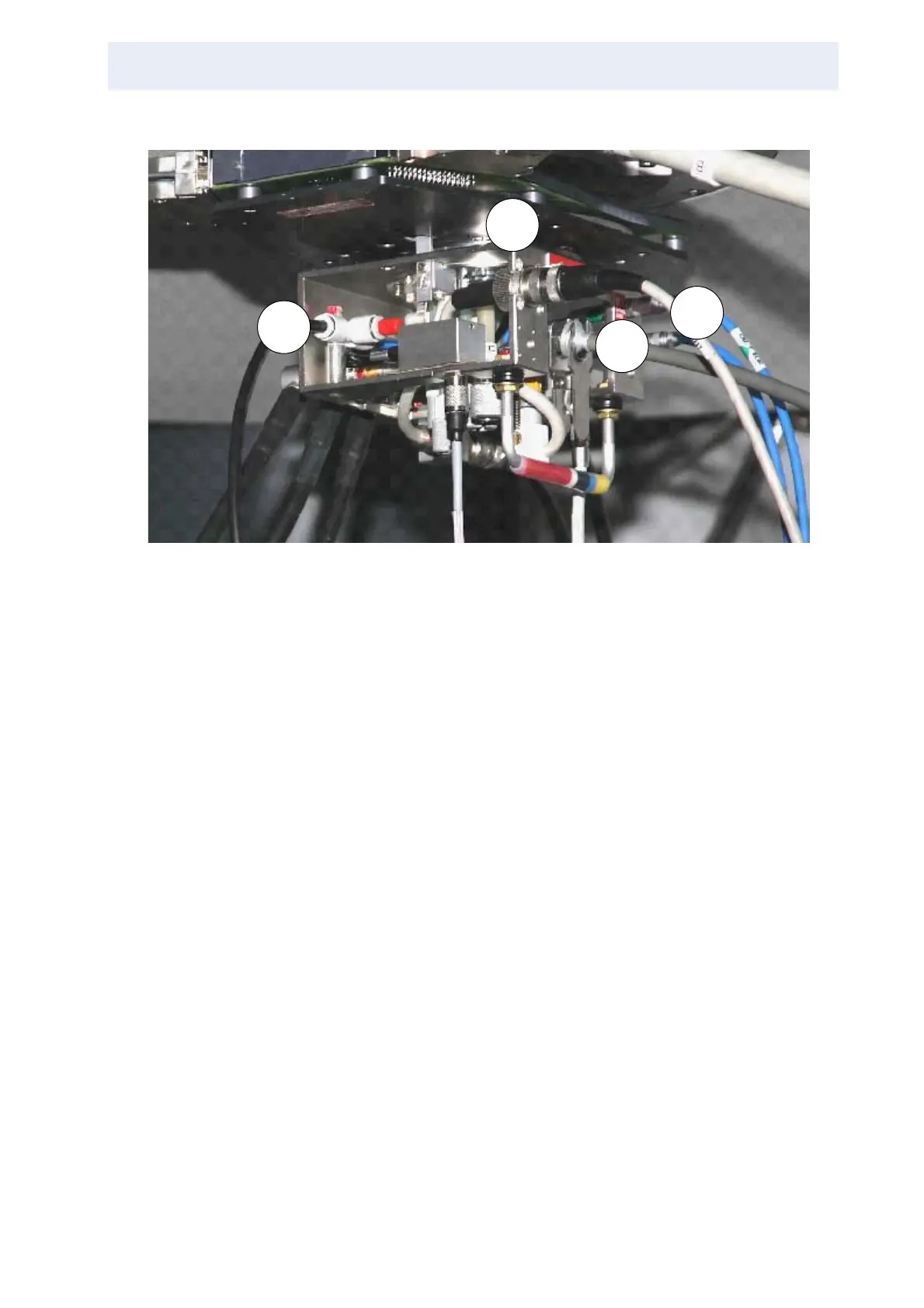

Figure 3.22. WB Probe MAS DVT Connections

In the figure above the upper thermocouple connector (read), located at stator

out, lower thermocoupler connector (regul), located at stator inlet are connected.

The VT unit must have the auxiliary sensor module to read more than one temper-

ature. Only the TC labelled "regul" is used for regulation.

1. Probe heater connector

2. VT gas in

3. TC connector (s)

4. Frame flush gas
