Symmetry Based Recoupling

User Manual Version 002 BRUKER BIOSPIN 189 (327)

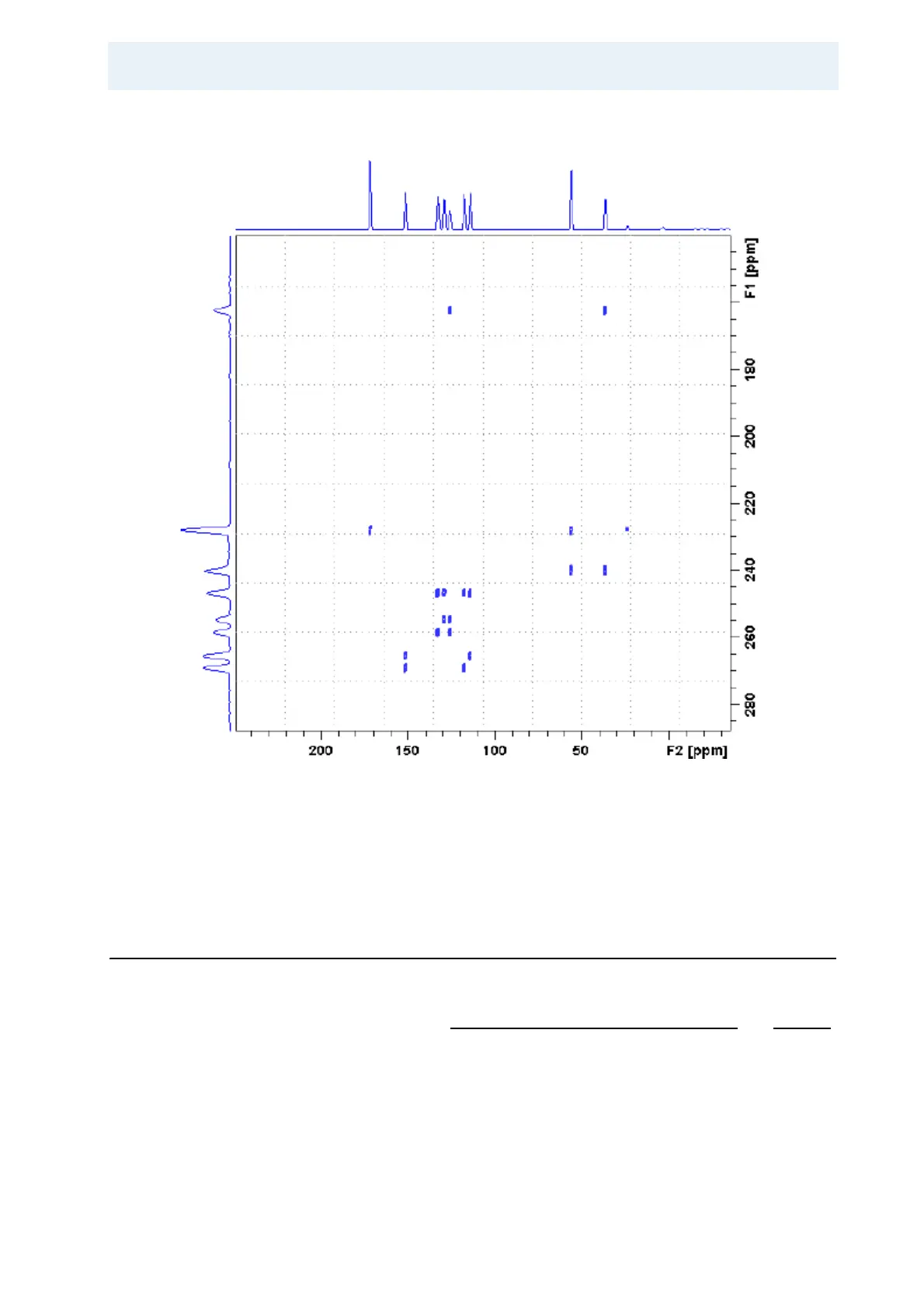

Figure 14.5. SC14 2d SQ-DQ correlation on tyrosine-HCl

SC14 2d SQ-DQ correlation on tyrosine-HCl, 56 rotor periods mixing at 26 kHz,

2.5 mm probe, AV III 700 SB. With the sampling window along F1= spin rate, only

the α-β-correlation is folded.

13C-13C Single Quantum Correlation with DQ Mixing 14.5

Symmetry based DQ recoupling sequences may also be used as mixing periods

in SQ-SQ correlation experiments. The experiment resembles the PDSD or

RFDR experiments (see

"Proton Driven Spin Diffusion (PDSD)" and "RFDR")

as a NOESY-type correlation will be generated. Similarly, the MELODRAMA (see

Bennett et al., Dusold et al.) sequence with ν

= 5*ν

rotor

may be used here.
