Preamplifier Power
1.
Connect the cable with the 9-pin male connector between your
preamplifier's POWER connector and the Lynx's PREAMP connector.
The PREAMP connector includes a bail mechanism to secure the
preamplifier's power cable to the Lynx unit.
Note Your preamp's connectors may be accessible either on the preamp's rear
panel or at the ends of the “pigtail” cables attached to the preamp.
High Voltage Power Supply
The HVPS options depend on your detector and your acquisition setup. Figure 49
shows detail of the SHV connector end found on a cable used for the High Voltage
Power Supply connection.
2a. If your detector requires, and you've configured the Lynx to supply positive
high voltage, connect the SHV cable between the preamp's HV INPUT
connector and the Lynx's HV+ connector.
Chapter 3 - System Setup
54 Lynx™ Digital Signal Analyzer

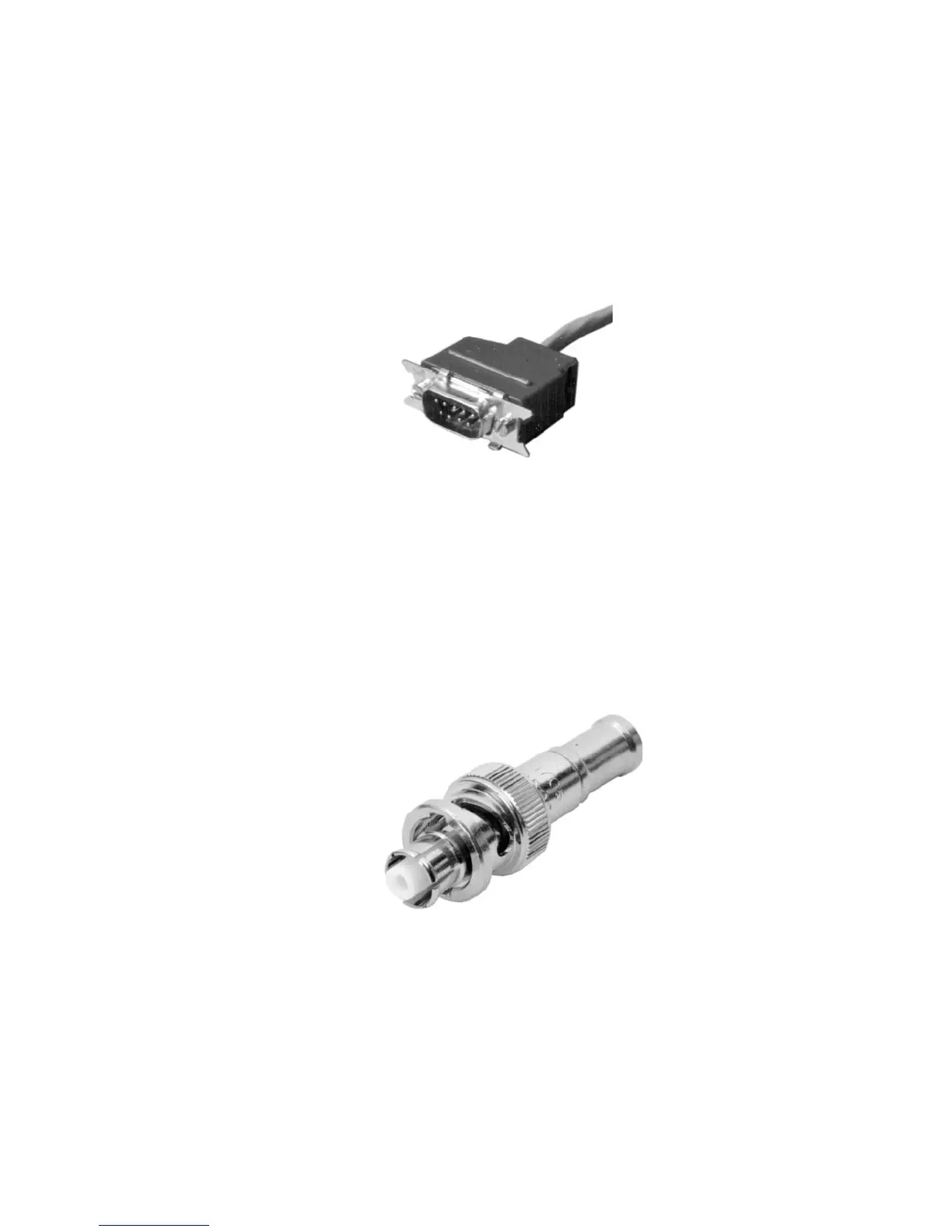

Figure 48 - A Preamp Power Connector (9-pin male)
Figure 49 - SHV Connector (cable end)
