SCAs
Single Channel Analyzers (SCAs) provides the capability of defining up to eight
SCA's that may be acquired. The acquisition is independent of acquisition mode;
therefore, SCAs can be configured to have a preset that is different than the input ac
-
quisition preset.
General
Enable
Start and stops the collection of SCA data.
•
When enabled (On) the webpage contents change to display the status of the
SCAs and the last SCA buffer entry in a automatically-updating table (every
100 ms) for a diagnostic display of data.
•
When disabled (Off) this table is not present.
Important Do not access this webpage when collecting SCA data with
the Lynx programming libraries. The enabled SCA page will
remove buffered data in order to display it. This removed
data will not be accessible from the programming library.
User’s Manual 99
SCAs | Enable MCA Settings

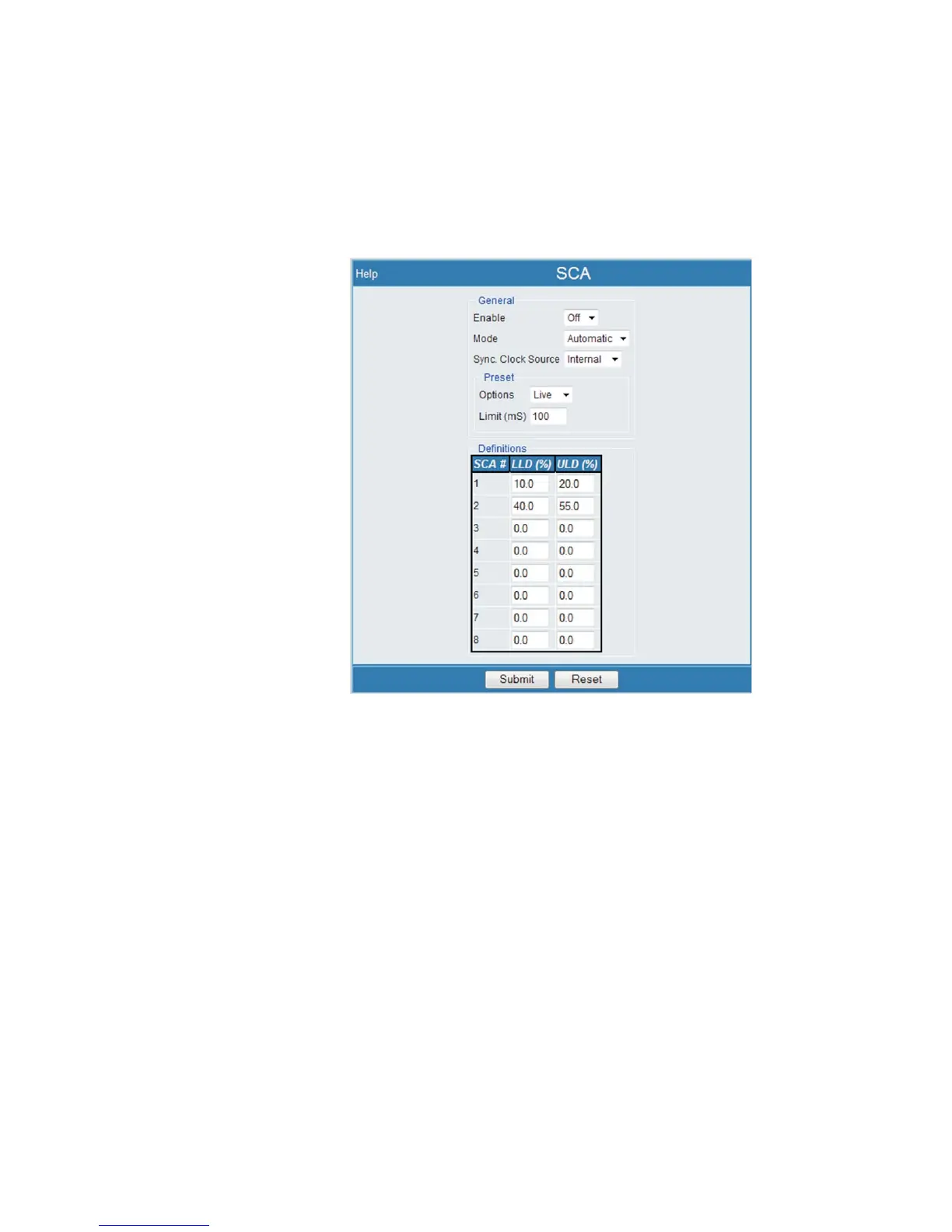

Figure 75 - SCA Dialog Box
