Enabled, with Internal Source
The data that is displayed is updated every 100 ms. You will not need to refresh your
page to see data.
Enabled, with External Sync. Clock Source
Enabling Counters with the clock set to External will result in a display as follows:
The Status of Waiting, as seen in Figure 74, indicates that the counters are armed for
acquisition but are waiting for the external synchronization pulse to be received via the
External Sync BNC. If there is no data in the counter buffers the status will indicate
so.
Chapter 4 - Web-based Operation Counters
98 Lynx™ Digital Signal Analyzer

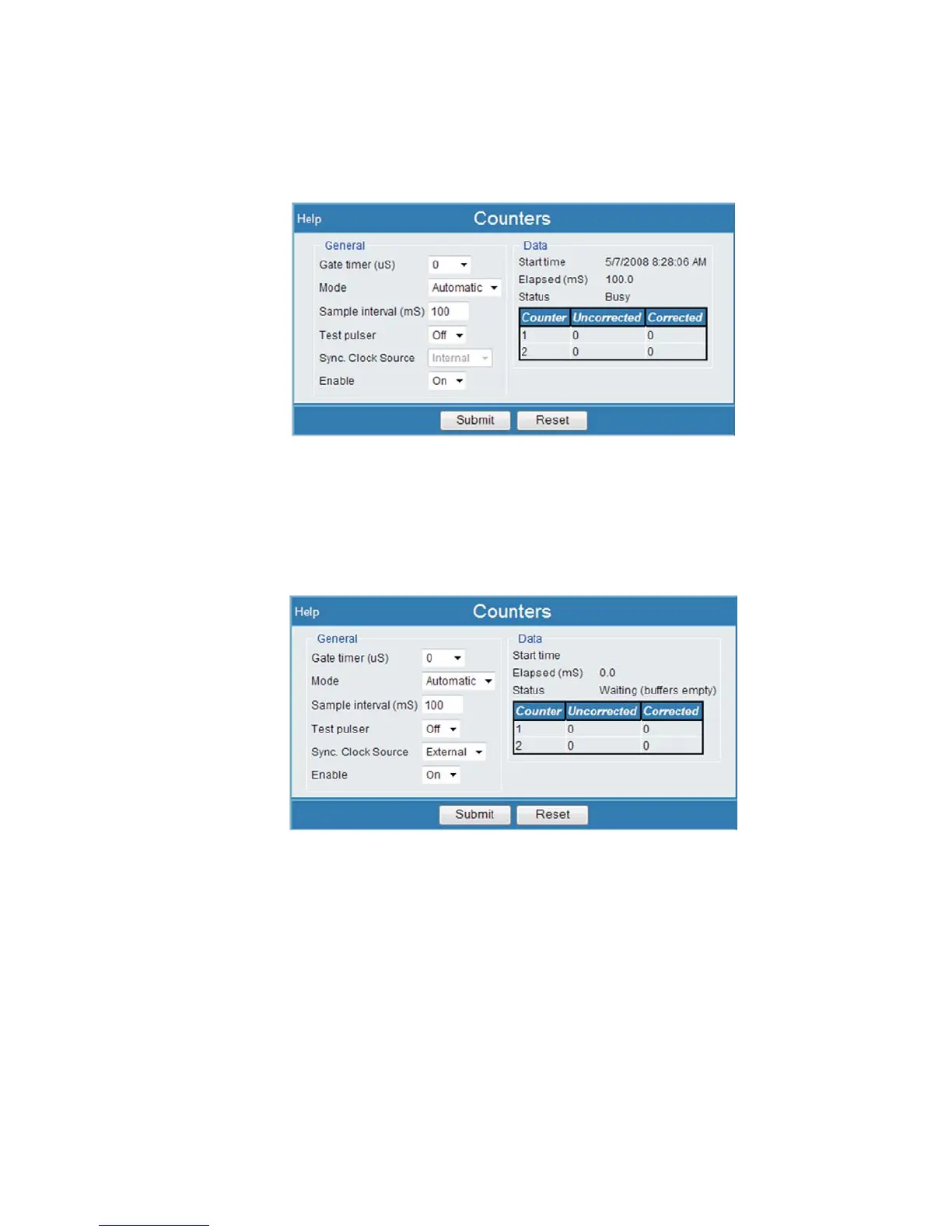

Figure 73 - Counters Enabled using Internal source
Figure 74 - Counters Enabled with External Clock Source
