Energy-Channel Entry
The Energy-Channel Entry menu selection opens the Energy Calibration Manual
Entry page. This calibration feature displays the energy calibration in a plot.
The calibration spectrum can be for Energy, FWHM and/or Low Tail. You can select
the calibration to view by choosing the radio button for each of these options.
A printed report of the calibration may be generated by selecting the Print button.
Zoom
The plot region supports zooming, using the familiar 'rubber rectangle' to highlight the
area to zoom on. To Zoom, simply press the left mouse button while over the plot and
drag the mouse. The rubber rectangle appears; lift the left mouse button to zoom into
the region within the rubber rectangle.
The original plot limits are reset by pressing the Reset button.
User’s Manual 129
Energy-Channel Entry | Zoom Calibrations

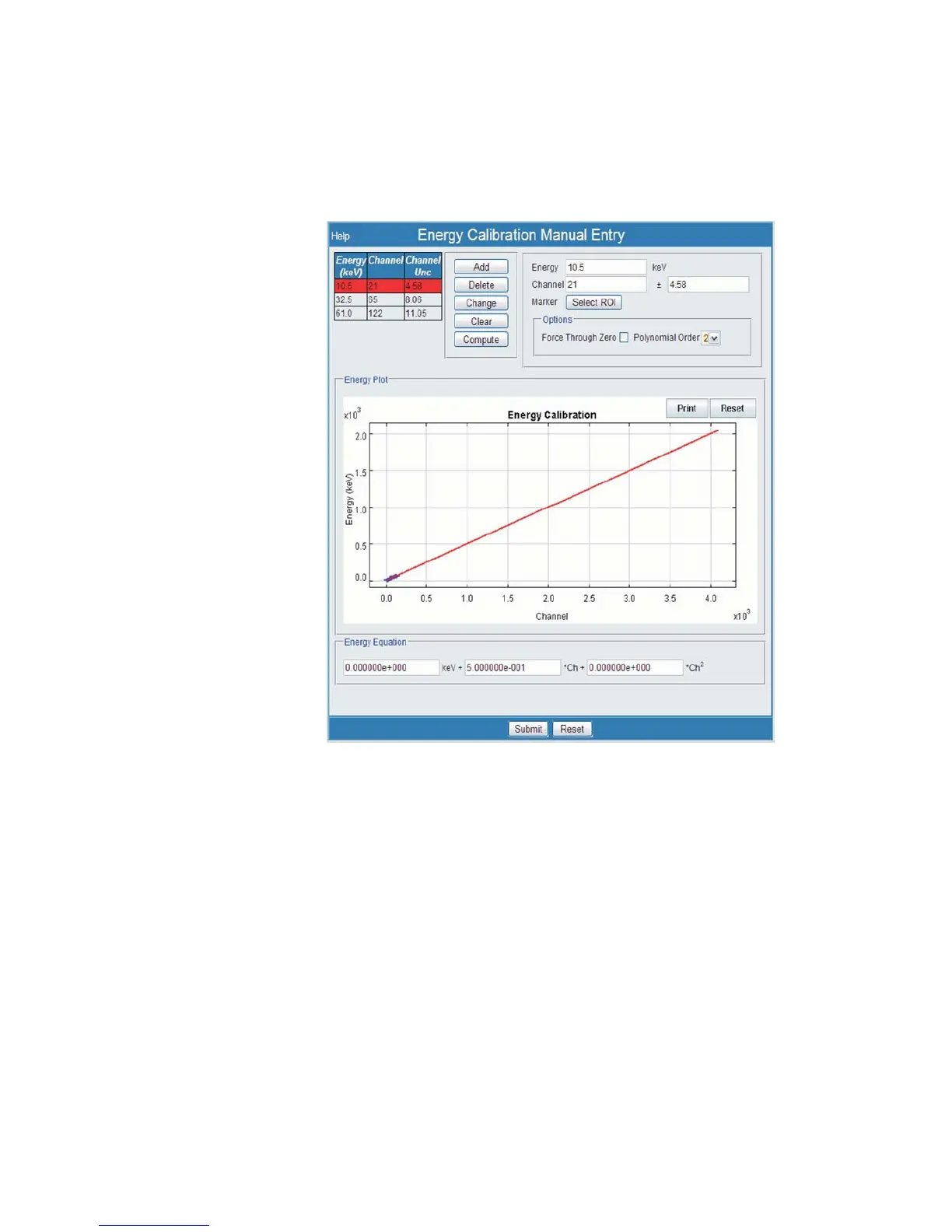

Figure 97 - Energy-Channel Entry menu selection
