Using RAS for the Serial (RS-232) Setup
1. Connect your Null Modem Cable between the RS-232 connectors on the
Lynx and the PC.
2. On your PC, access Network Connections and select the icon for 'Lynx'. One
method to do so is:
Windows Start button >> Settings >> Network Connections >> Lynx.
3.
Enter the RAS User Name you've set up: type user in the User Name field
and password in the Password field, then click Connect. See Figure 125.
Reminder
The User name of user and its password are Lynx settings
that may be changed at
Lynx Menu | Network | RAS tab | Accounts section,
as the User Name and Password entries.
You should be connected to the Lynx at this point, and should see the Lynx login page
as described in Chapter 4 of this Manual.
User’s Manual 177
RS-232 Connections

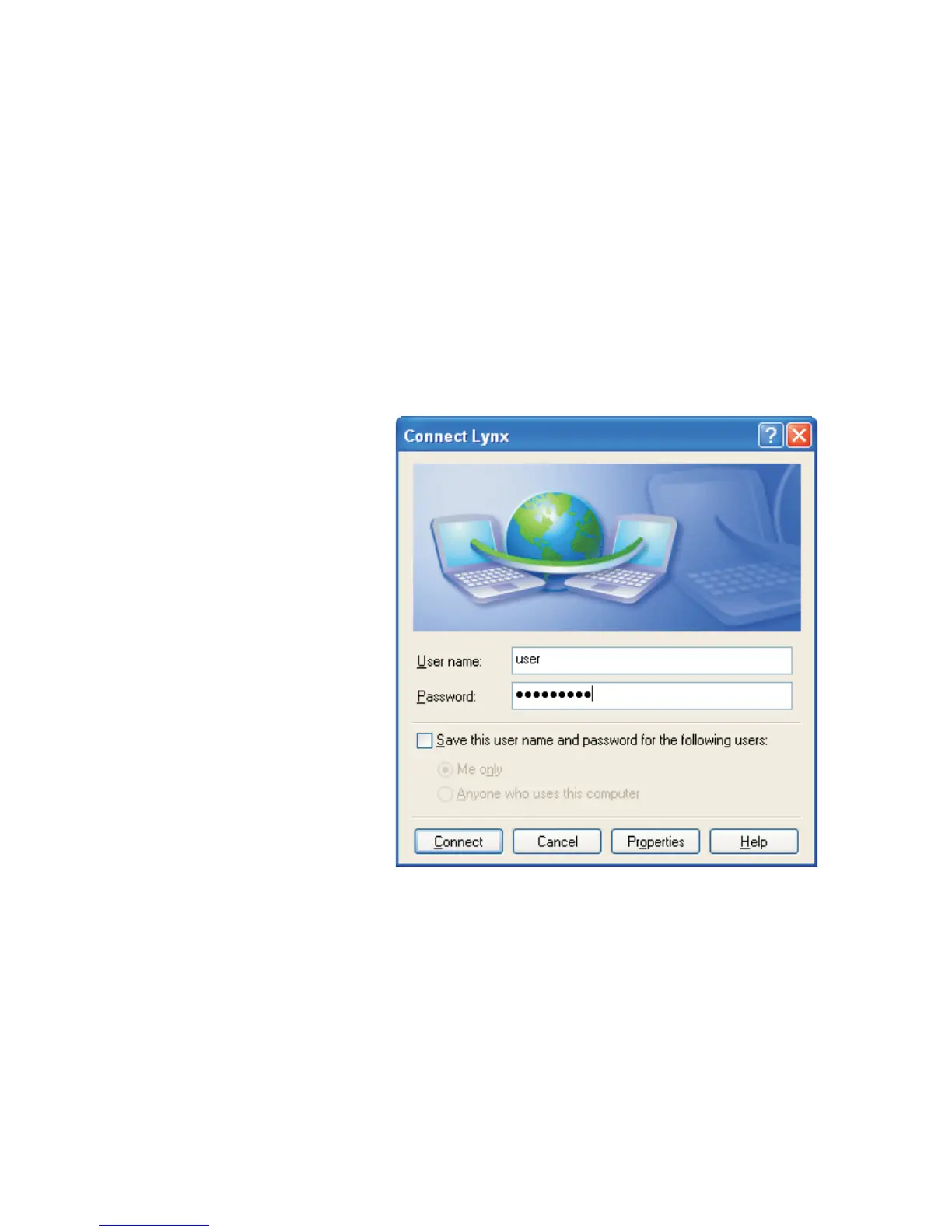

Figure 125 - Connect to Lynx
