Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-13
10

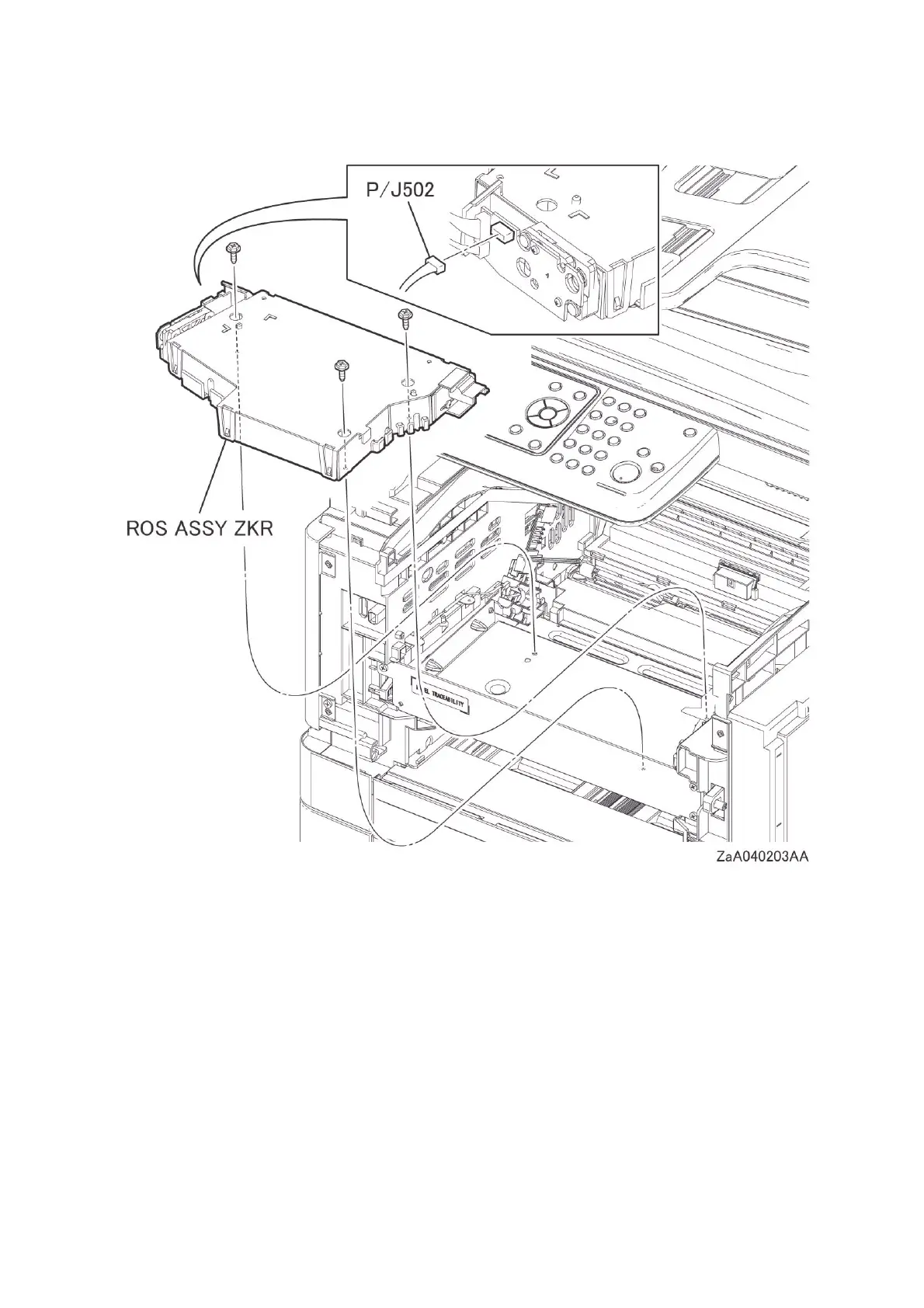

Remove the three screws (silver
, flanged, 10mm) that fix th
e
ROS ASSY ZKR, disengage the
connector (P/J502), and then remove
the ROS ASSY ZKR from the printer.
