Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-50
REP7 Fusing
REP7.1 (SCC) KIT FUSING UNIT 110V / 220V (PL7.1.99)
[Removal]

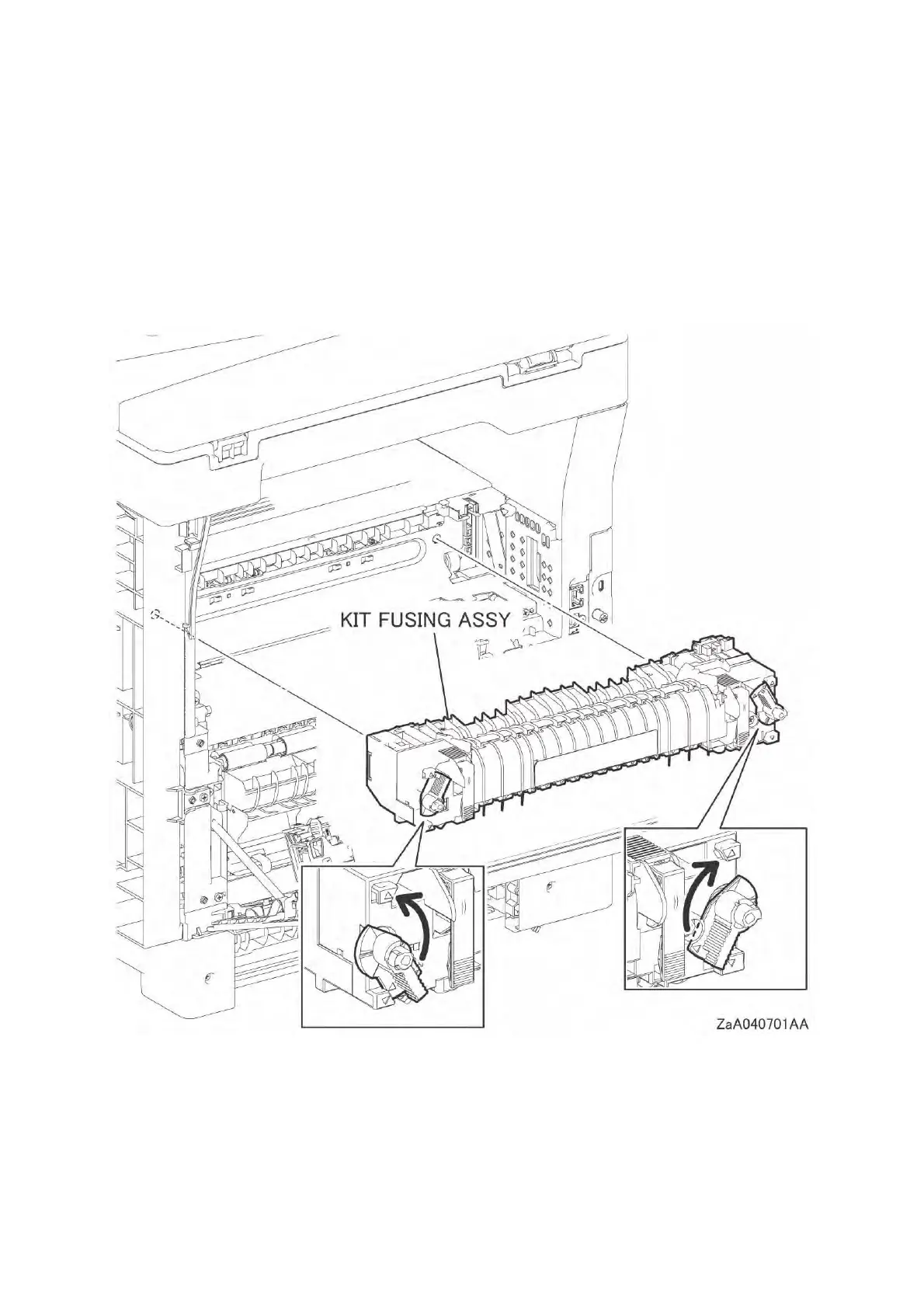

1 Open the KIT COVER ASSY REAR AIO.
2 Rotate the two levers that lock the FUSING UNIT (110V / 220V) in the arrow direction to unlock
the FUSING UNIT, and remove the FUSING UNIT.
