Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-136

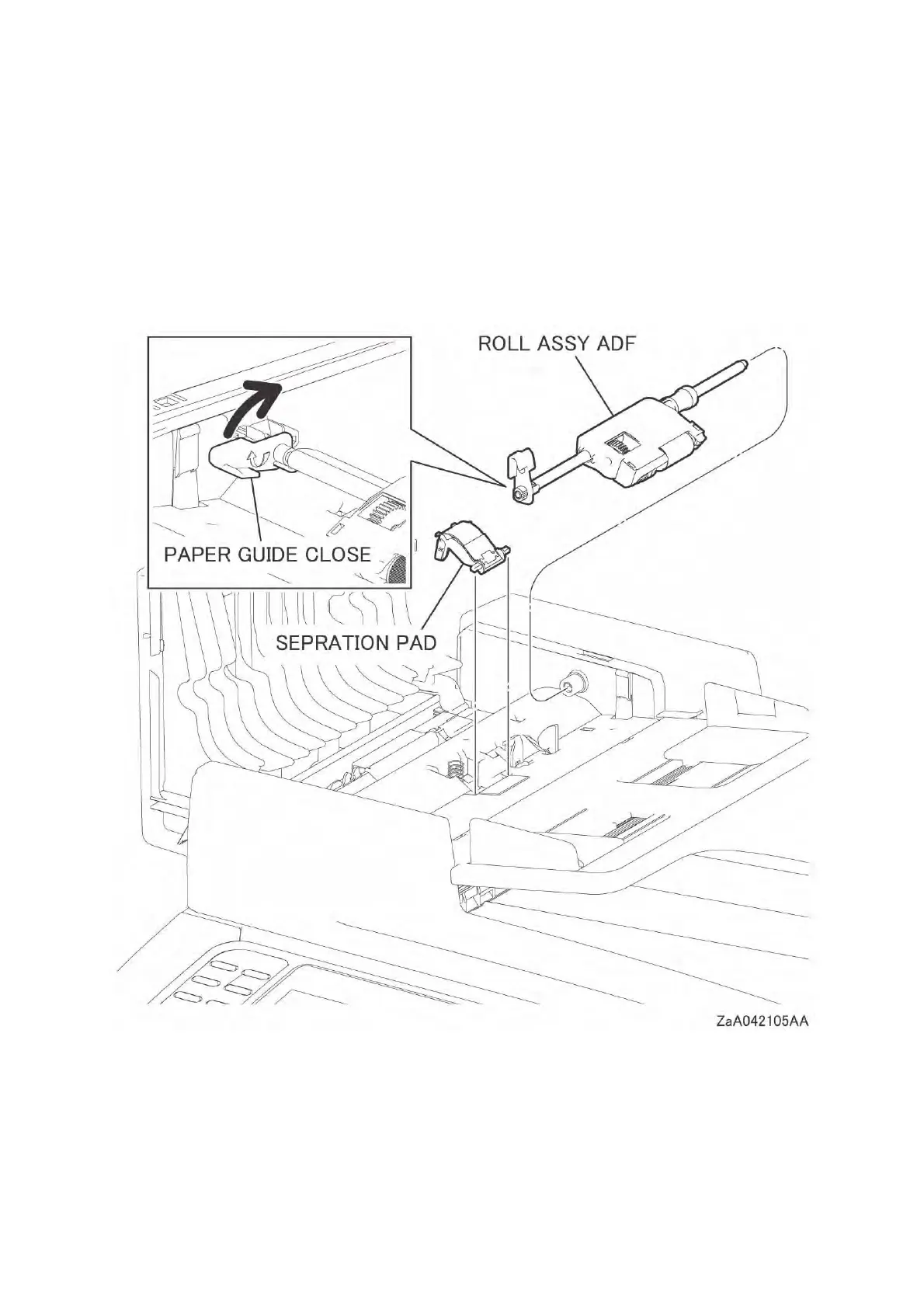

REP21.3 SEPRATION PAD (PL21.1.4)
[Removal]
1 Open the KIT COVER DADF.
2 Release the PAPER GUIDE CLOSE (PL21.1.4) that fixes the ROLL ASSY DADF(PL21.1.3), and
then remove the ROLL ASSY DADF.
3 Release the two hooks on the SEPARATION PAD, and then remove the SEPRATION PAD.
To Next Page
