Fuji Xerox DocuPrint M355df

Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-66
REP13 MSI
REP13.1 KIT MSI COVER (PL13.22.99), KIT RETARD ROLL MSI ASSY
(PL13.22.98)
[Removal]
1 Open the KIT MSI COVER.

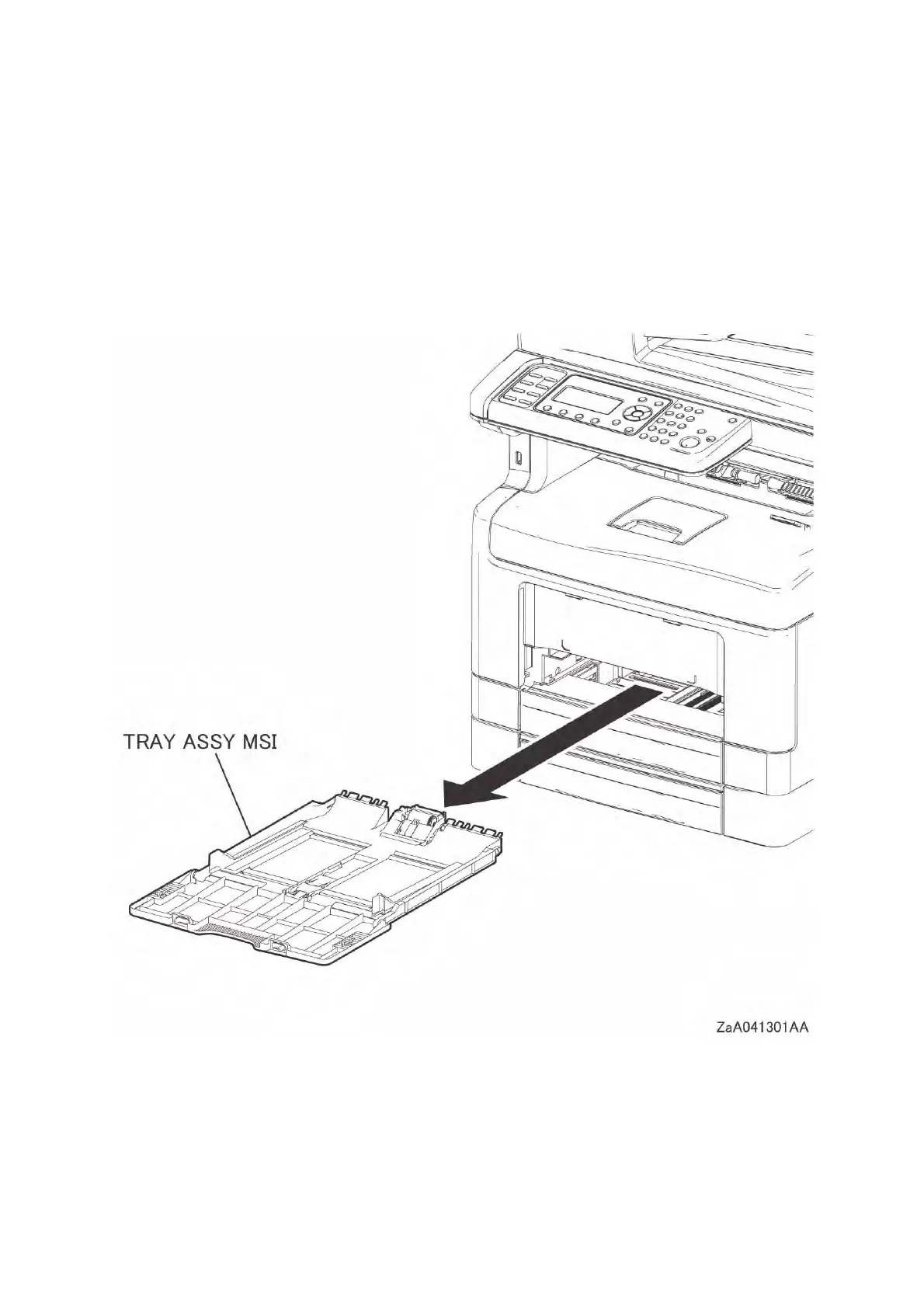

2 Pull the TRAY ASSY MSI out of the printer.
