Fuji Xerox DocuPrint M355df User Manual

Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-56

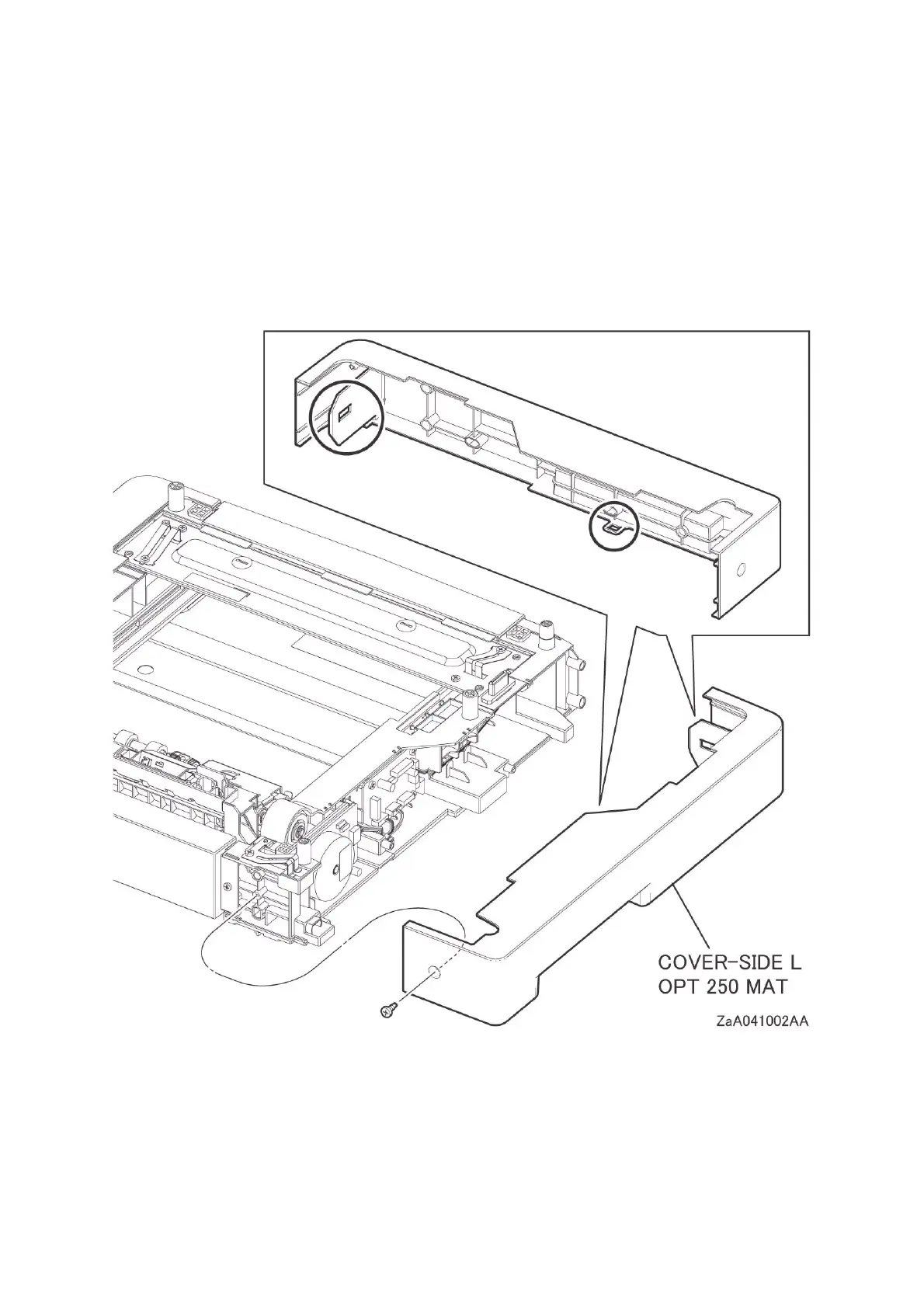

REP10.2 COVER-SIDE L OPT 250 MAT (PL10.1.2)
[Removal]
1 Remove the TRAY ASSY 250 IOT. (REP10.5)
2 Remove the FEEDER ASSY OPT 250. (REP10.1)
3 Remove the one screw (silver, tapping, 8mm) that fixes the COVER-SIDE L OPT 250 MAT,
release the two hooks from the holes, and then remove the COVER-SIDE L OPT 250 MAT.
