Chapter 4 Disassembly / Assembly and Adjustment

4.2 Removal / Replacement

4-57

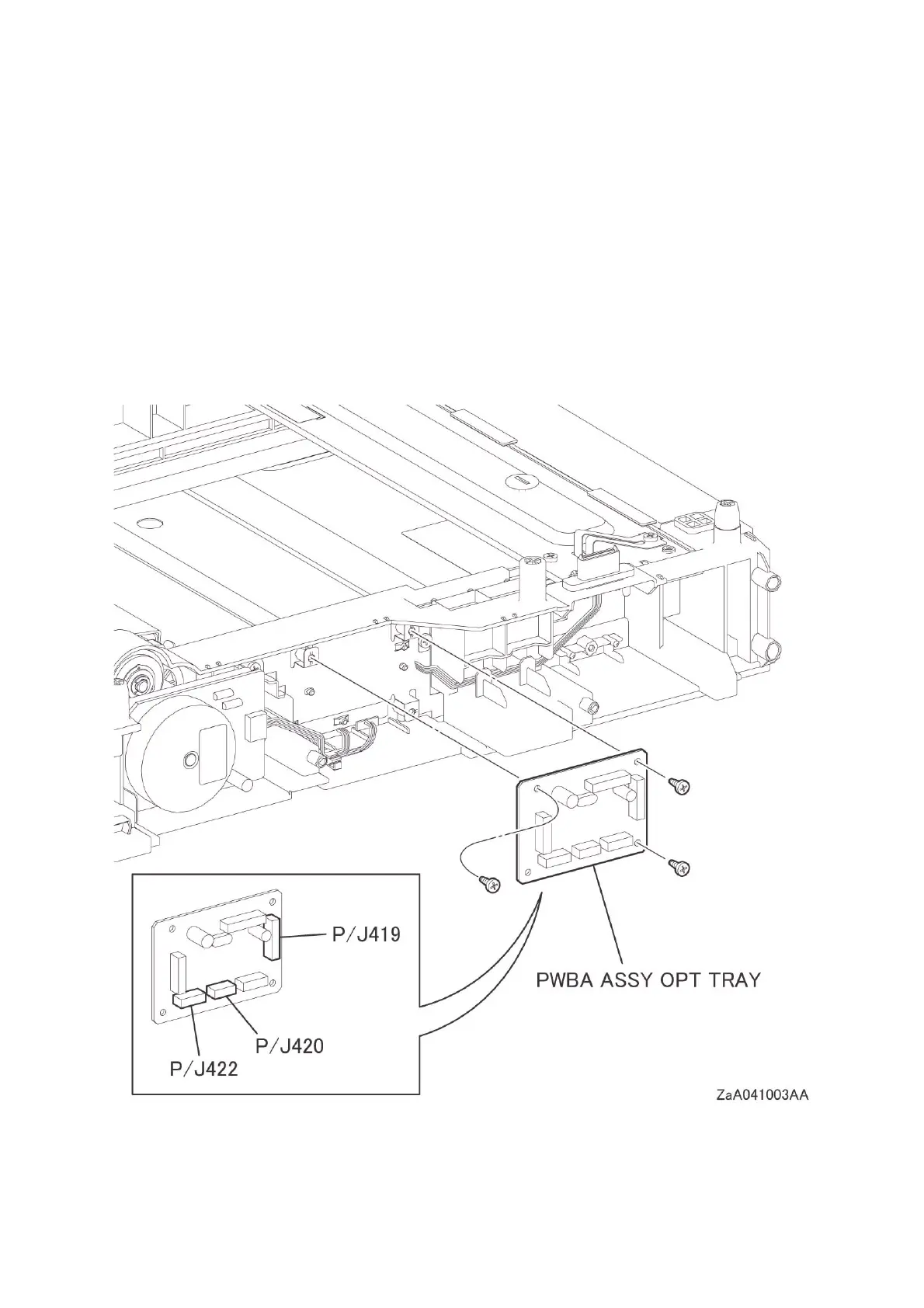

REP10.3 (SCC) PWBA ASSY OPT TRAY (PL10.1.5)

[Removal]

1 Remove the TRAY ASSY 250 IOT. (REP10.5)

2 Remove the FEEDER ASSY OPT 250. (REP10.1)

3 Remove the COVER-SIDE L OPT 250 MAT. (REP10.2)

4 Disengage all connectors from the PWBA ASSY OPT TRAY.

5 Remove the three screws (silver, tapping, 8mm) that fix the PWBA ASSY OPT TRAY, and then

remove the PWBA ASSY OPT TRAY.
