Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-129
REP21 DADF/IIT
REP21.1 DADF ASSY (PL21.1.1 ) /IIT ASSY (PL21.1. 14)
[Removal]
1 Open the KIT MSI COVER.

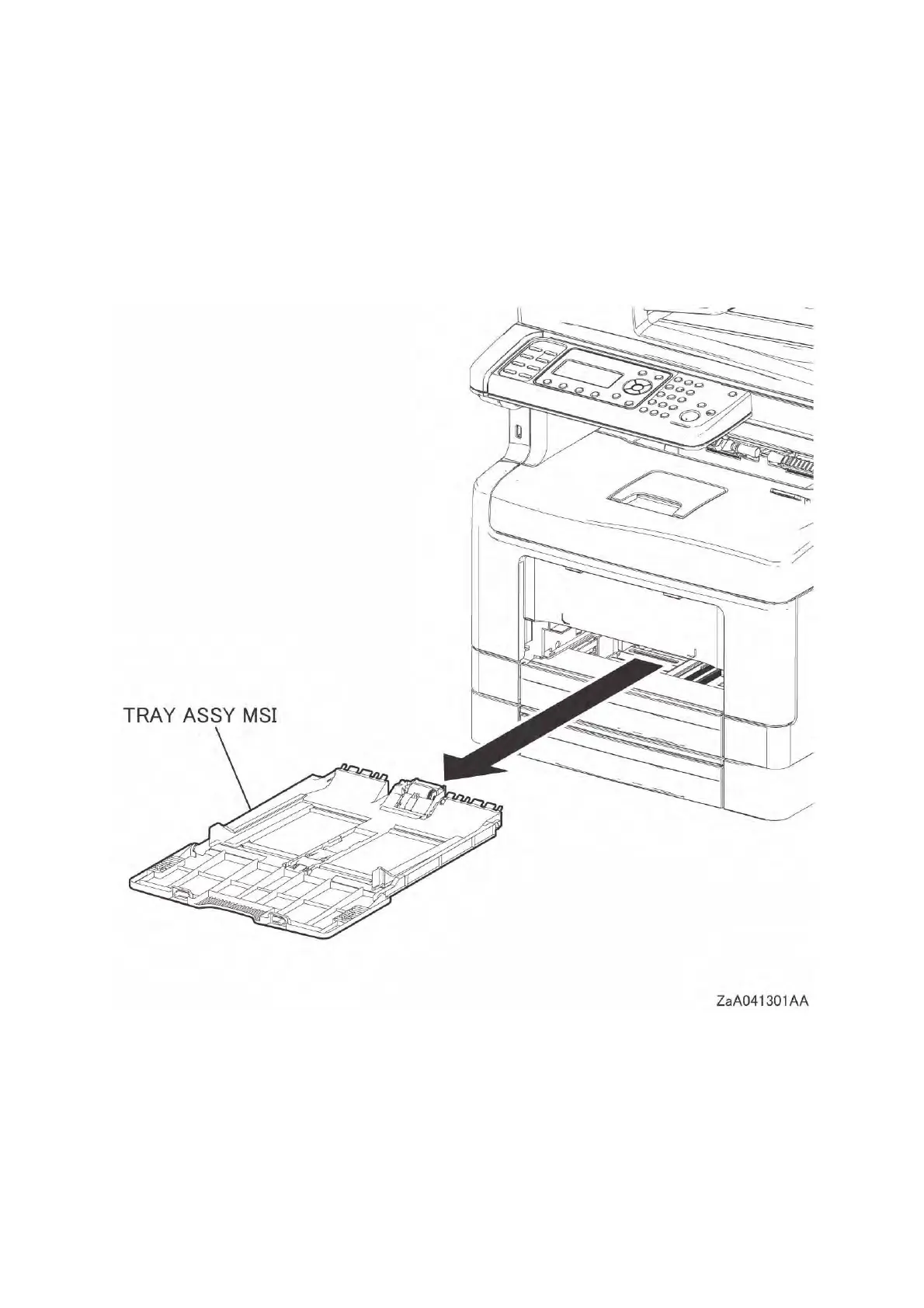

2 Pull the TRAY ASSY MSI out of the printer.
3 Remove the COVER FRONT TOP ALL AIO ASSY. (REP19.1)
4 Remove the COVER ASSY WINDOW ESS LOW. (REP19.2)
5 Remove the KIT COVER ASSY REAR AIO. (REP19.7)
6 Remove the KIT COVER SIDE L AIO ASSY. (REP19.6)
7 Remove the COVER SIDE R AIO. (REP19.4)
To Next Page
