Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-49
REP6 Transfer

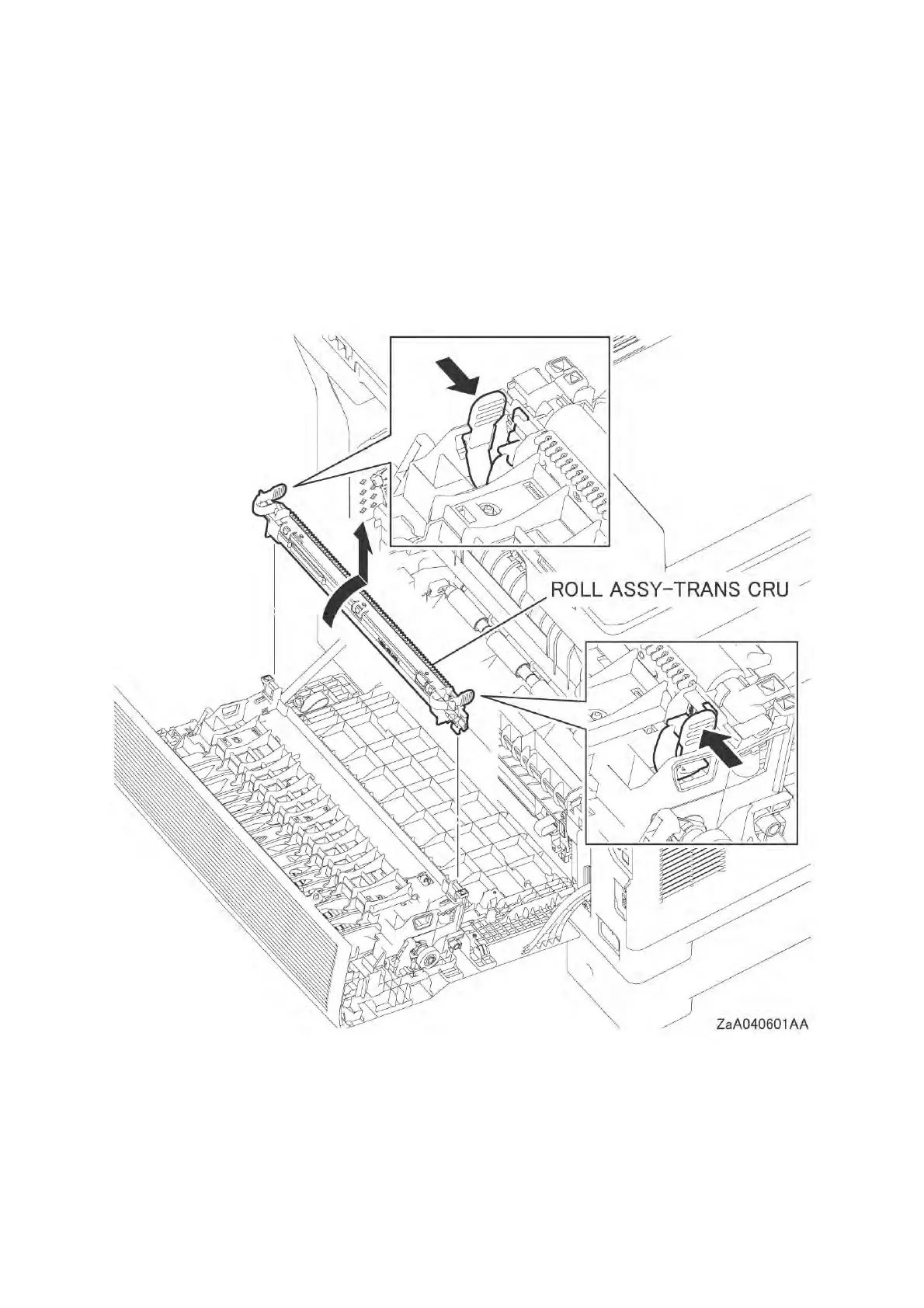

REP6.1 ROLL ASSY-TRANS CRU (PL6.1.1)
[Removal]
1 Open the KIT COVER ASSY REAR AIO.
2 Release the two hooks that fix the ROLL ASSY-TRANS CRU, and remove the ROLL ASSY-
TRANS CRU by rotating it in the arrow direction.
