Fuji Xerox DocuPrint M355df User Manual

Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-58

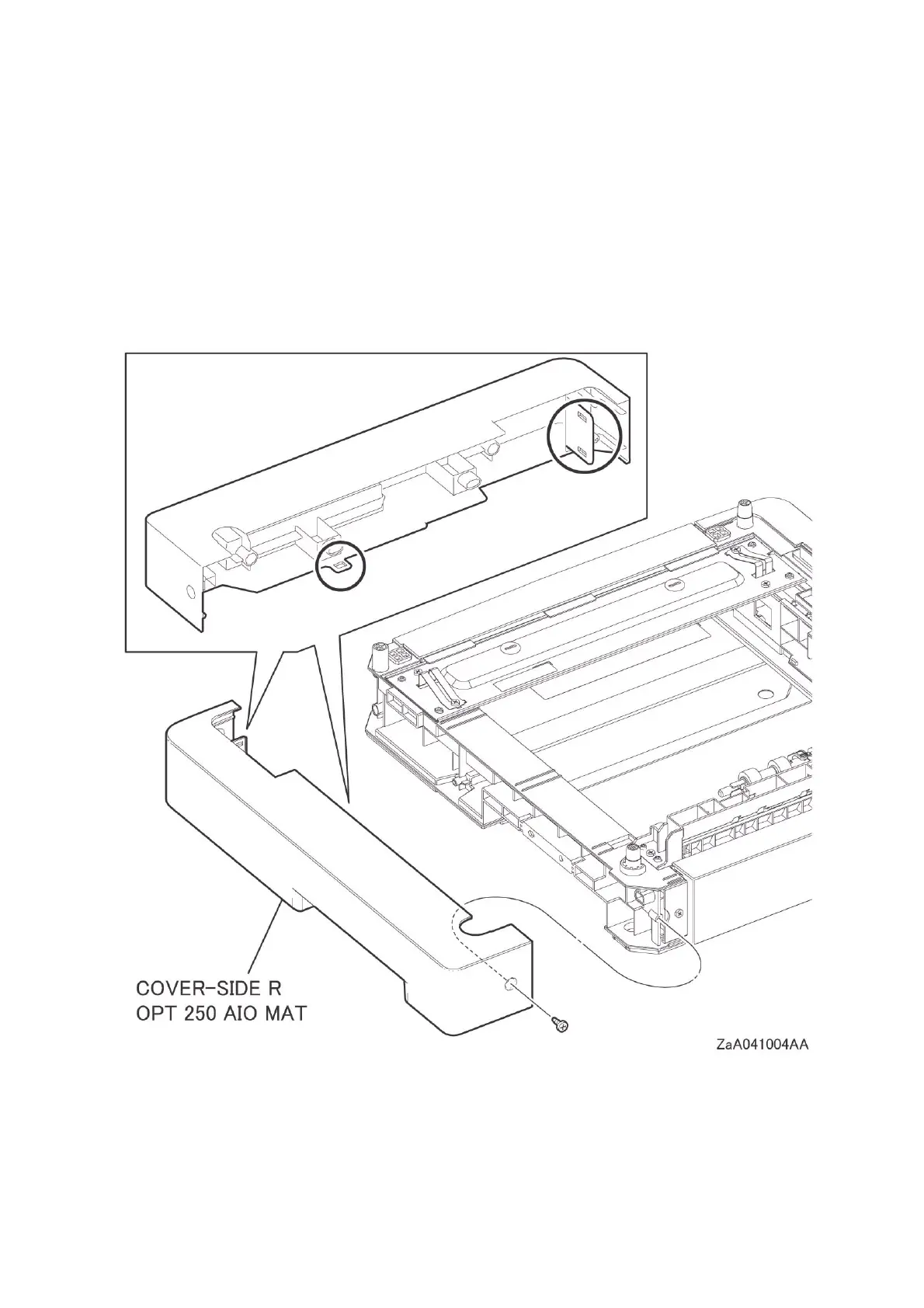

REP10.4 COVER-SIDE R OPT 250 AIO MAT (PL10.1.13)
[Removal]
1 Remove the TRAY ASSY 250 IOT. (REP10.5)
2 Remove the FEEDER ASSY OPT 250. (REP10.1)
3 Remove the one screw (silver, tapping, 8mm) that fixes the COVER-SIDE R OPT 250 AIO MAT,
release the three hooks from the holes, and then remove the COVER-SIDE R OPT 250 AIO
MAT.
