Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-117
REP19.4 COVER SIDE R AIO (PL19.1.20)
[Removal]
1 Open the KIT MSI COVER.

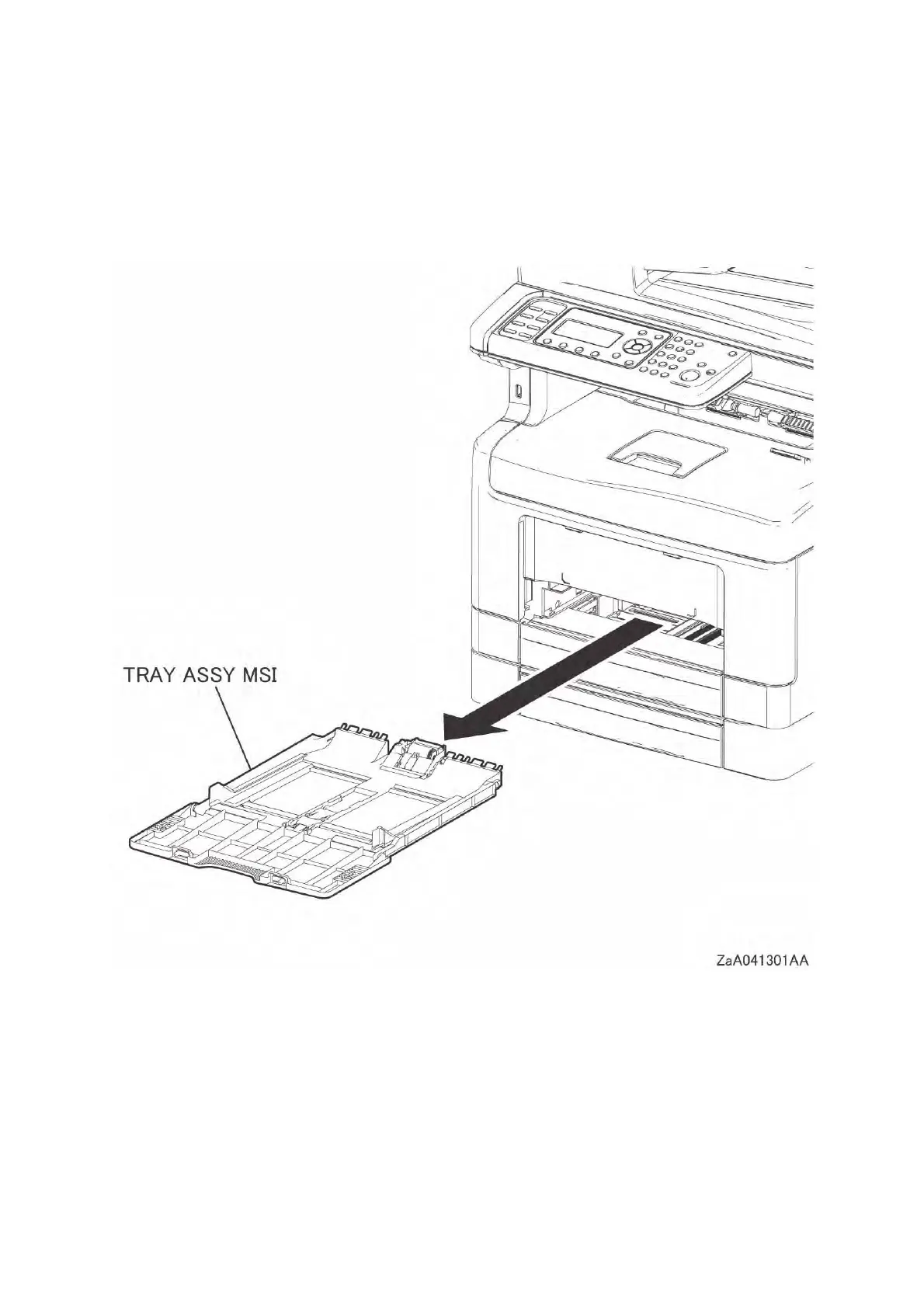

2 Pull the TRAY ASSY MSI out of the printer.
3 Remove the COVER FRONT TOP ALL AIO ASSY. (REP19.1)
4 Remove the KIT COVER ASSY REAR AIO. (REP19.7)
To Next Page
