Chapter 4 Disassembly / Assembly and Adjustment
4.2 Removal / Replacement
4-118
5

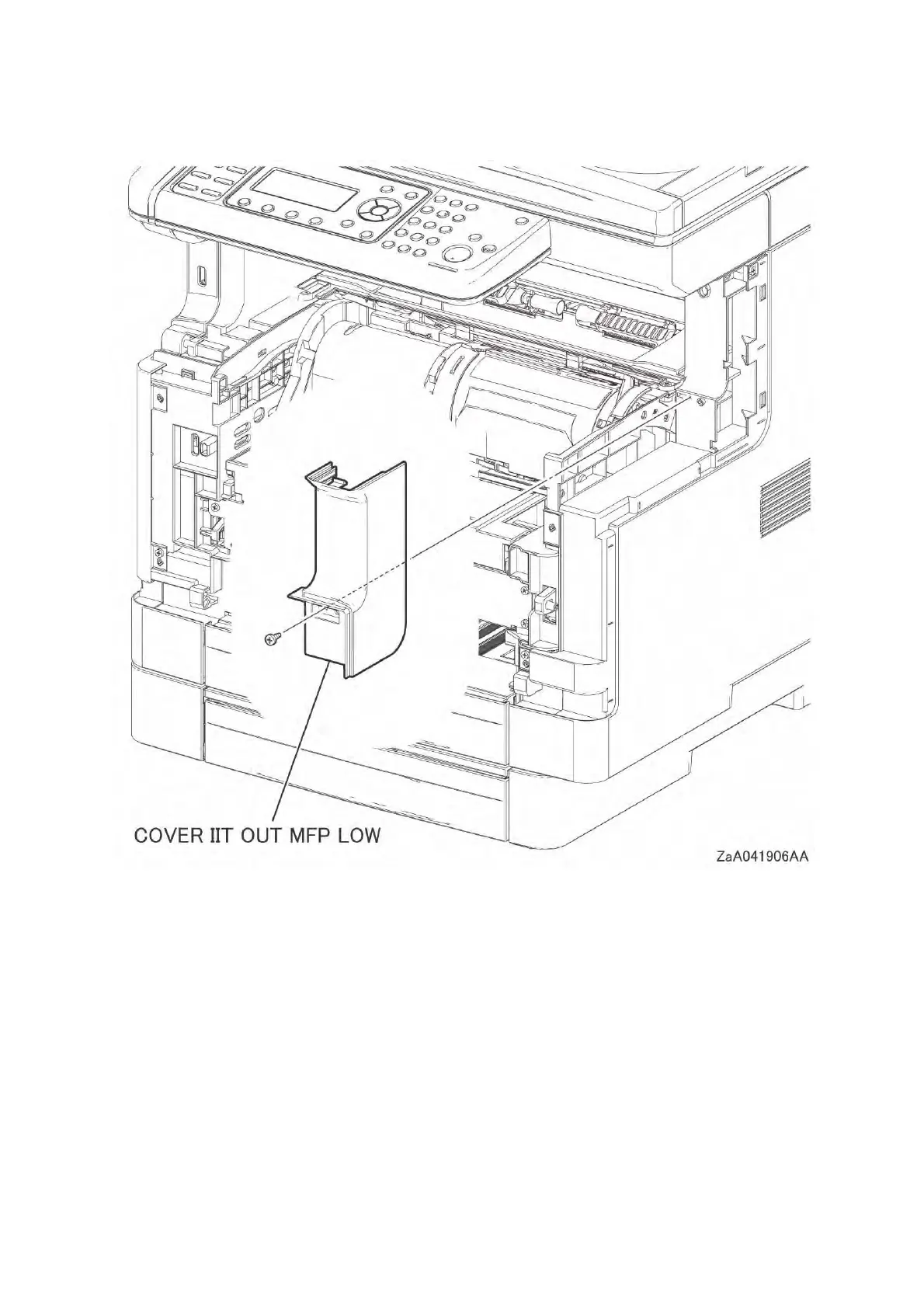

Remove the on
e screw (silver, tapping, 8m
m) that fi
xes the CO
VER IIT OUT MFP LOW
(PL19.1.27), release the three hooks, an
d then remove the COVER IIT OUT MFP LOW.
